no.da69t cnc press brake

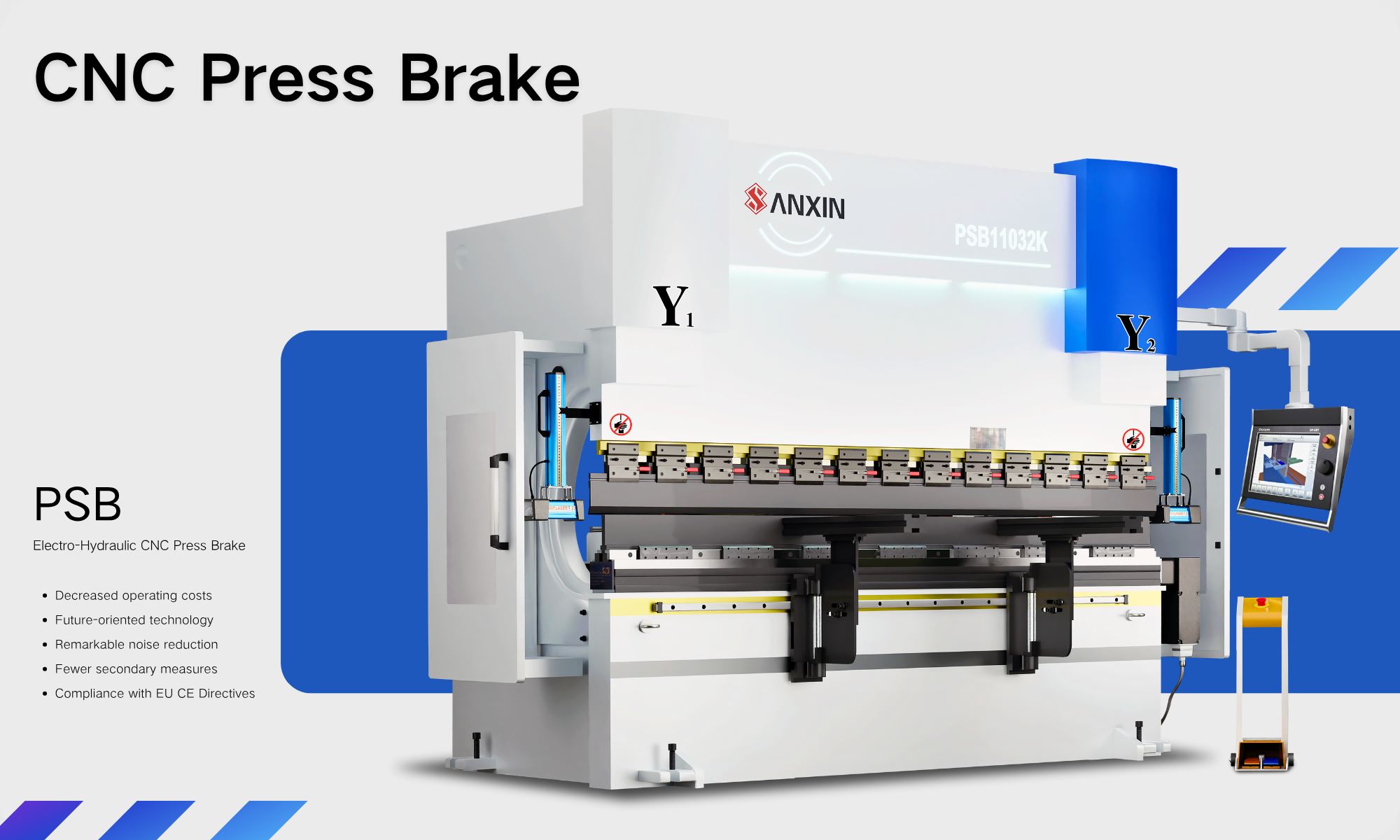

CNC Press Brake

Decreased operating costs

Future-oriented technology

Remarkable noise reduction

Fewer secondary measures

Compliance with EU CE Directives

Decription

Feature

Technical data

Video

Hybrid CNC Press Brake

Sanxin ESVP Series servo pump controlled bending machine adopts the principle of volume speed regulation of servo motor and bidirectional quantitative pump, and uses servo motor to change the speed of the pump to change the output flow of the pump to meet the speed requirements of various load conditions and greatly reduce the overflow loss, greatly improving the system efficiency. At the same time, the bidirectional quantitative pump is adopted, and the forward and reverse rotation of the servo motor is used to change the oil flow direction of the pump and directly control the movement direction of the load, which replaces the original proportional valve and reduces the resistance loss and leakage loss of the reversing valve. Further reduce energy consumption and save producing costs.

Standard equipment

CNC DELEM DA69T with 3D color graphics

DELEM® Profile T3D import 3D file

PrAX Hydrid Servo System

Sanxin BGA-4 Axis X,R,Z1,Z2

X1,X2,R1,R2-Axis as Optional

Single V die and Standard CNC Punch

Sanxin Auto Crowning Table

Fagor optical grating ruler

Hoerbiger (HAWEl) hydraulic hystem

DELEM8 Profile TL Offline Software

Electrical cabinet with Schneider,Omron

components CE, SGS, NR12 Certifications

ePrAX control

Germany HOERBIGER ePrAX control new electrical servo drive system.

ePrAX is Intelligent, no oil tube, fully closed electrical servo drive system.

High efficiency and energy saving, oil tank capacity reduced by 90%.

Fast-performance and duty cycle reduction 10% compared with the traditional

system, energy efficiency 70% up The positioning accuracy of precision-up to

0.005mm Integrated servo pump, lower –noise at work.

Integrated pressure filters ensures high stability and long service life.

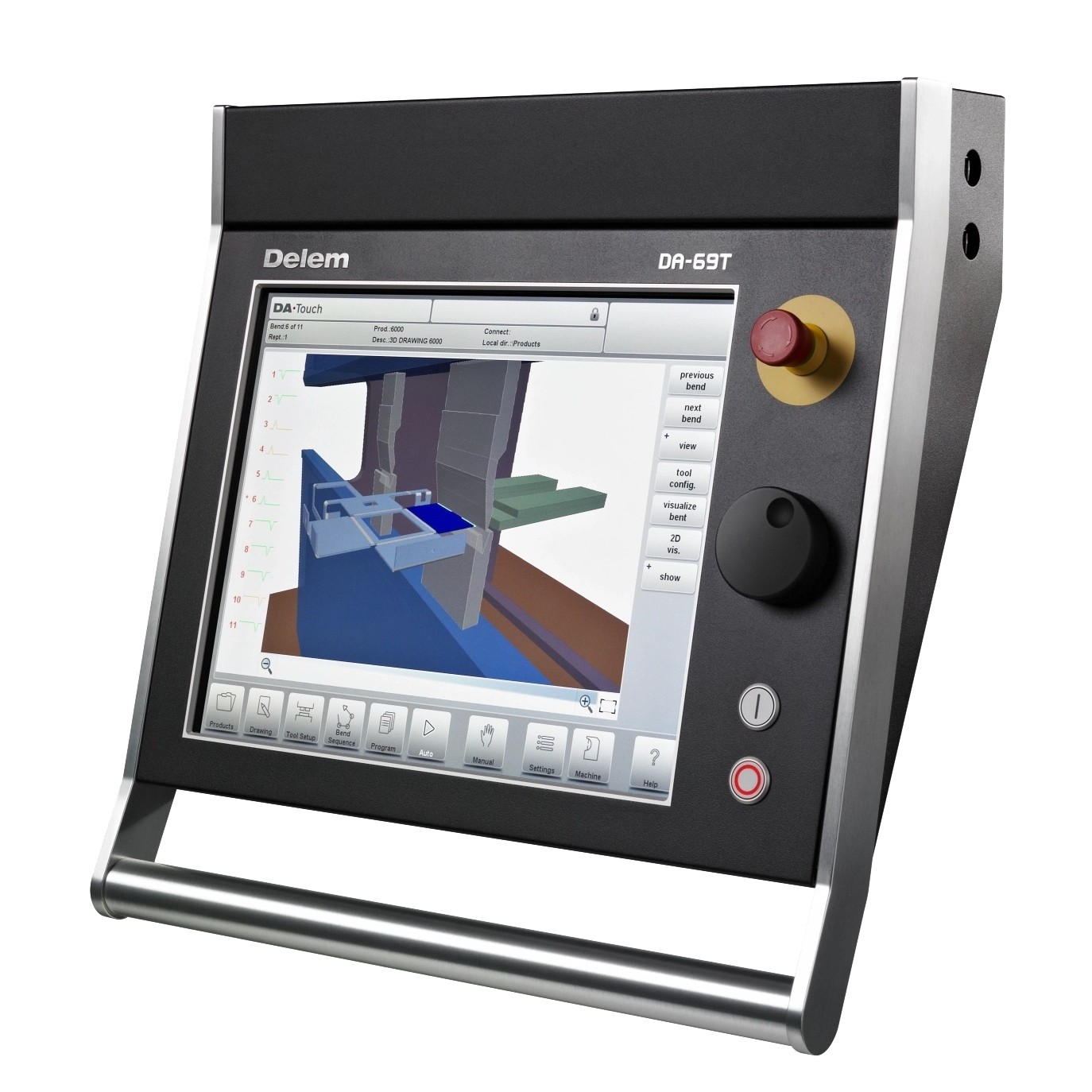

DELEM DA69T Touch 3D Graphical Control

17" high resolution colour TFT
2D and 3D graphical touch screen programming mode
3D visualisation in simulation and production
Full Windows application suite
Delem Modusys compatibility (module scalability and adaptivity)
USB, peripheral interfacing
Profile-T2D offline software
Sensor bending & correction interface

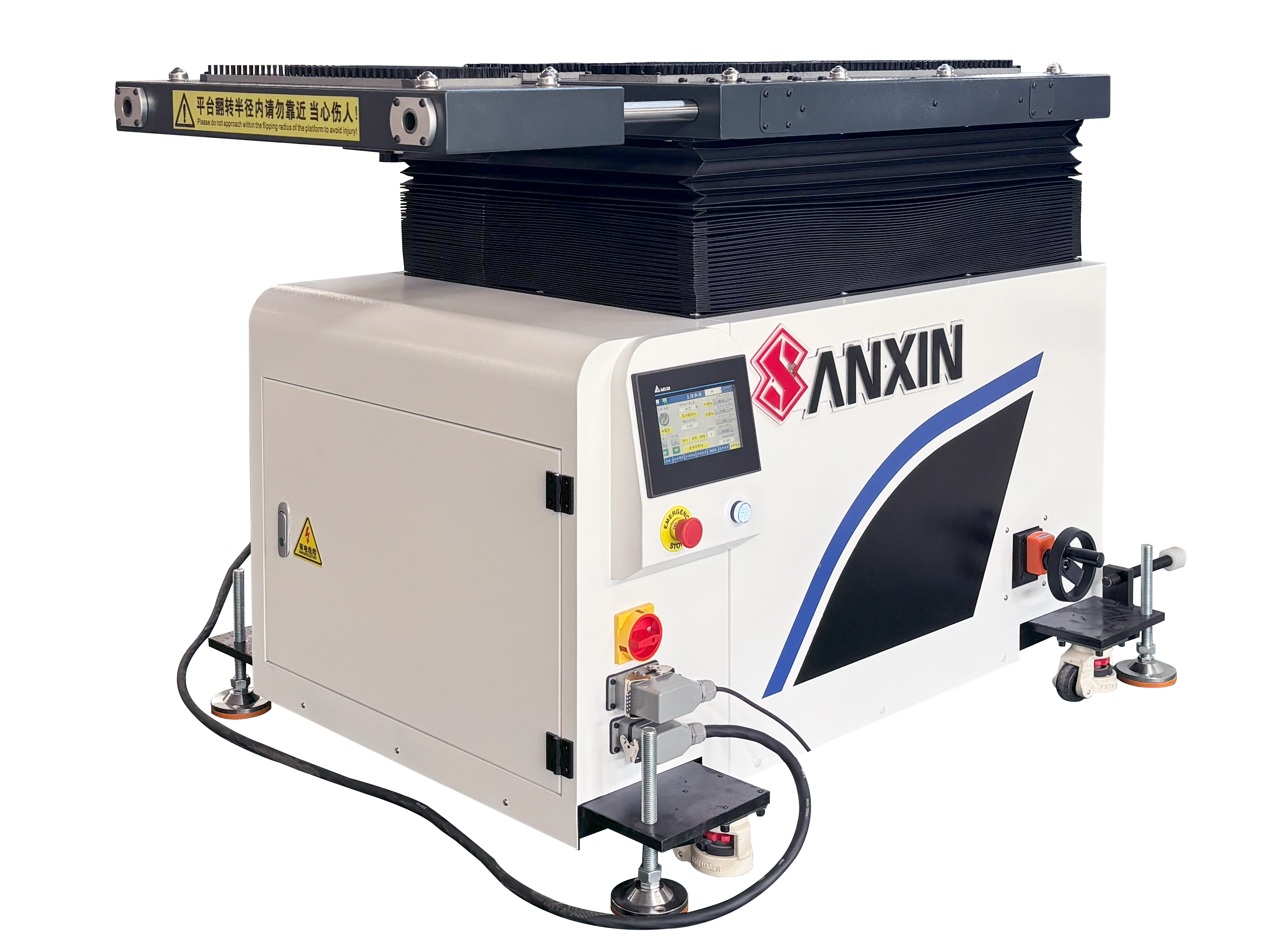

Sanxin BGA-6 BackGauge

Press Brake 6-Axis CNC BackGauge With X1, X2, R1, R2 , Z1, Z2-Axis

Ball screws and double linear guide on X, R-axis
Precision linear guide and YYC rack on axes Z1‐Z2.
Fingers on linear guides and micro adjustment.
Mechanical accuracy ± 0.03 mm.
Axes X1‐X2 speed 500 mm/s
Axes R1‐R2 speed 500 mm/s
Axes Z1‐Z2 speed 1100 mm/s

Bending follower

It suitable for all kind of large sheet metal, especially thin and large plates, which
lightens the operator's work moving heavy pieces, Improves bending efficiency
and reduces operalor risk.
Independent module control with system, perfect to maintain 100% synchronization with the Y axis during the bending process
Automatically adjust the up and down movement according lo tho height of the die.
Equipped with a packing,it minimizes the effects the effects of reverse bending
Flexible and easy to use,easy to load and unload,allows the bending follower to be removed frontally and placed on another press brake.
Equipped with a brush able to prevent any sheet from being scratched, slipped or dropped.

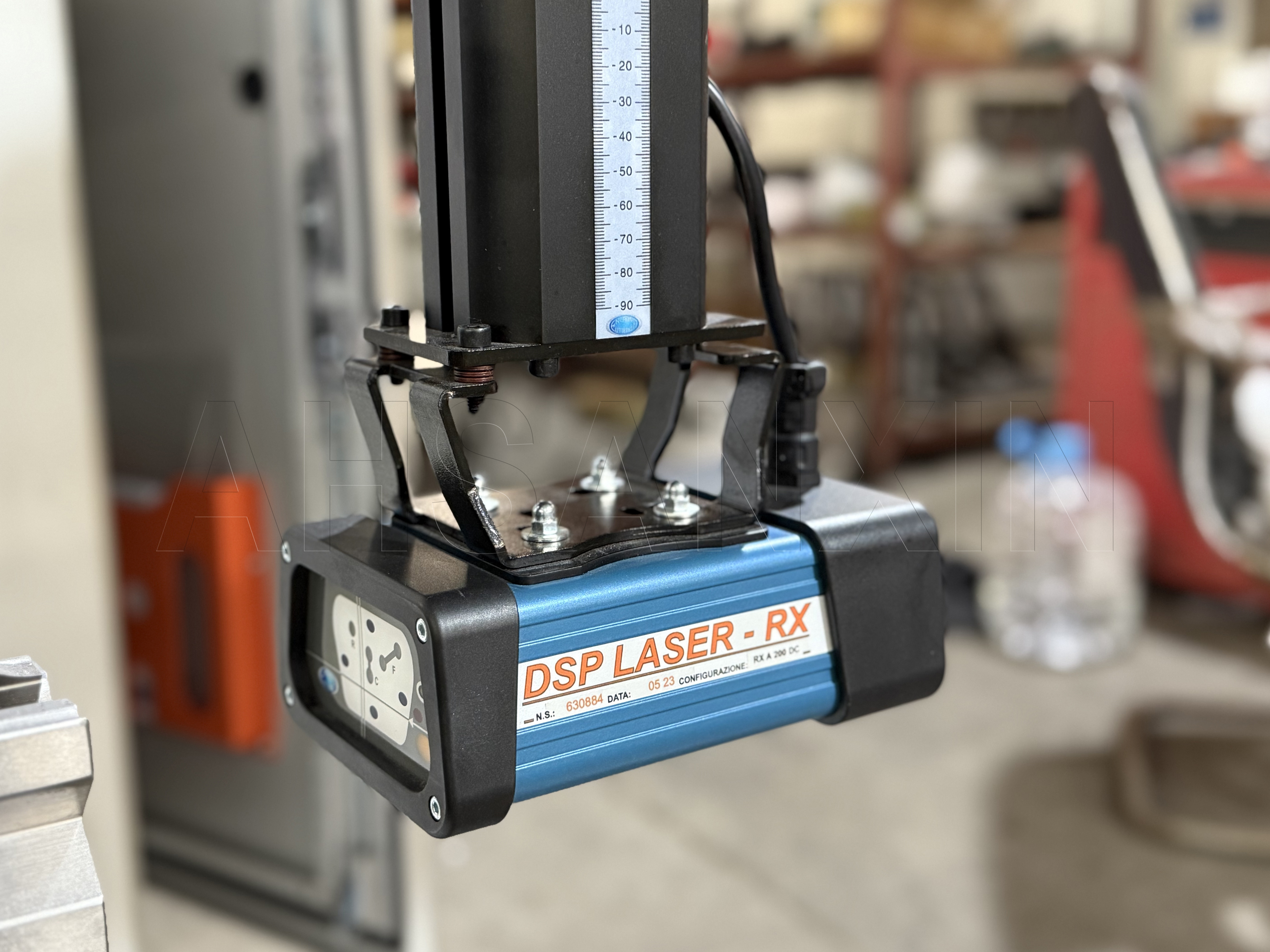

DSP LASER

DSP LASER protects the pressbrake operator from the danger of crushing that can take place accidentally between the moving part of the machine and the fixed one.The project idea used for this device is the one to fit out the moving pert of the pressbrake with a protection zone.

This is a volume of suitable and special dimensions generated by DSP LASER and placed under the upper tool vertex at a higher distance than that the machine requires to stop.So the protection zone, that moves together with the mobile part because integral with it, advances the race of this one towards the fixed pert. An obstacle (for example the Operator fingers) when entering the protection zone. Is detected immediately causing consequently the interruption of the mobile part motion.

Wila clamping

Extremely fast press brake tooling changes

Maximum control of vertical tolerances during the bending process (Tx- axis alignment)

Extremely accurate clamping, positioning and alignment

Individual clamping pins for each tool segment for superior clamping force

Vertical and horizontal tool loading and unloading for maximum speed and safety

Professional finish, including a slide rule for ease of tool positioning

Suitable for all press brake brands and sizes

Provides maximum productivity when used in combination with WILA Tooling

Easy maintenance

Low noise

Energy saving 70%

High efficience

Easy operatoin

Optional Control

DELEM DA53T Touch Color CNC System

10.1" high resolution colour TFT
“Hot-key” touch navigation
Up to 4 axes (Y1,Y2 + 2 aux. axes)
Tool / material / product library
Advanced Y-axis control algorithms
for closed-loop as well as open-loop valves.
CNC Crowning control
USB memory stick interfacing
Profile-53TL offline software

DELEM DA58T Color 2D graphical CNC System

15" high resolution colour TFT
2D graphical touch screen programming
Up to 4 axes (Y1,Y2 + 2 aux. axes)
Bend sequence calculation
Advanced Y-axis control algorithms for
closed-loop as well as open-loop valves.
CNC Crowning control
USB, peripheral interfacing
Profile-58TL offline software

DELEM DA66T Touch 2D Graphical Control

17" high resolution colour TFT
2D graphical touch screen programming mode
3D visualisation in simulation and production
Full Windows application suite
Delem Modusys compatibility (module scalability and adaptivity)
USB, peripheral interfacing
Profile-T2D offline software
Sensor bending & correction interface
