Hydraulic swing shears are industrial machines used for cutting sheet metal with precision and efficiency. They operate using a hydraulic system to generate force, allowing the upper blade to swing in an arc motion while cutting through the material. This design minimizes stress on the machine and ensures smooth, accurate cuts. Key features of hydraulic swing shears include: Hydraulic Power: Provides consistent force for high-quality cuts. Swing Beam Mechanism: The upper blade moves in a pivoting motion, reducing blade wear. Adjustable Blade Clearance: Ensures clean cuts for different material thicknesses. Back Gauge System: Enhances accuracy by positioning the sheet precisely. Safety Features: Includes guards and emergency stop mechanisms for operator safety. These shears are widely used in metal fabrication, automotive, and construction industries for their durability, ease of use, and ability to handle various metal thicknesses efficiently.

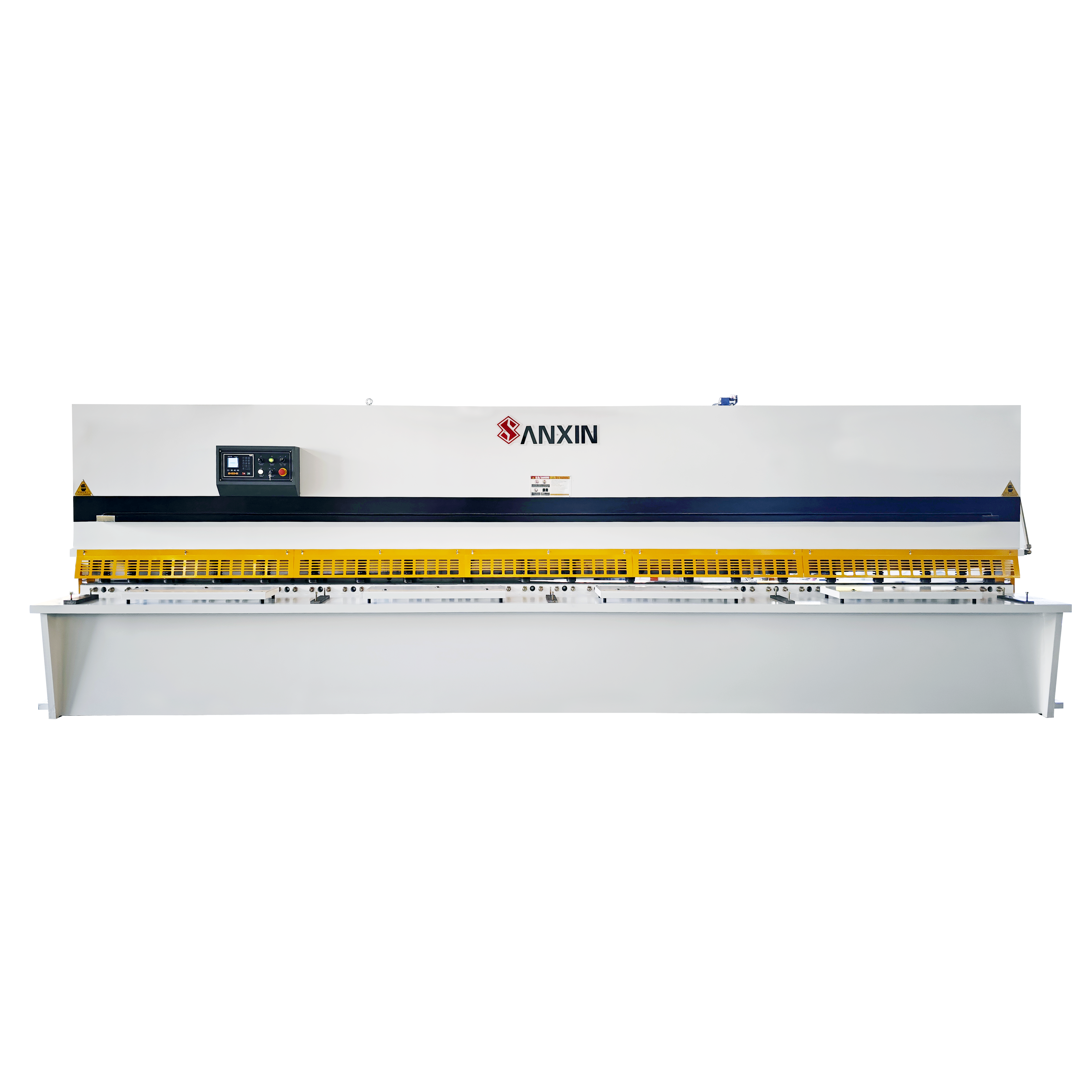

Pendulum shear
Pendulum shear
Pendulum shear

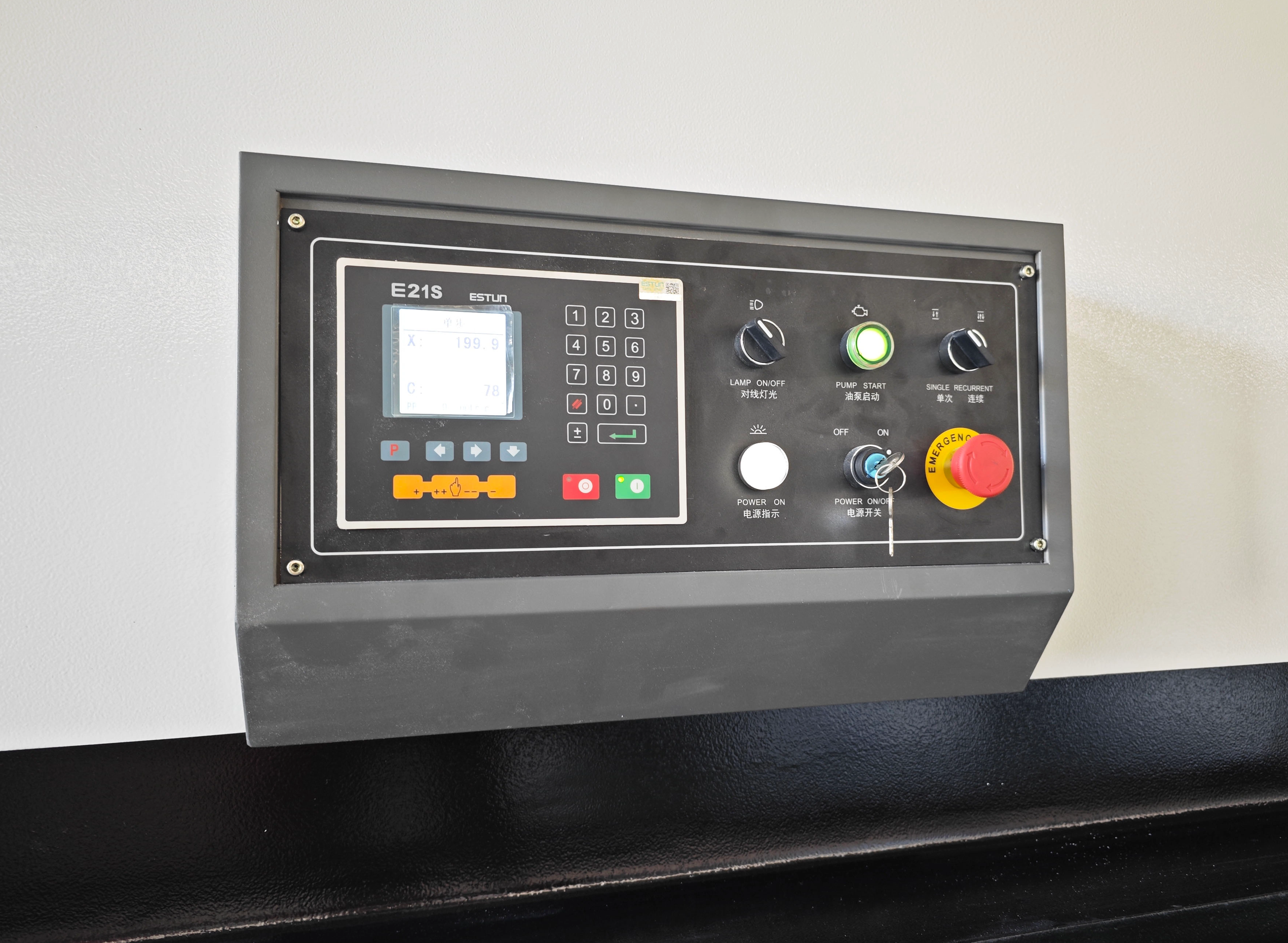

E21S Controller
* Backgauge and block control * Control for general AC motors, frequency inverter * Intelligent positioning * Stock counter * Holding/decompression time setting * Program memory of up to 40 programs * Up to 25 steps per program * One side positioning * Retract function * One key backup/restore of parameters * mm/inch * Chinese /English
Side Motor
blade gap adjustment
Blade clearance is electrically controlled and system displayed
Schneider
main electrical components
Stable efficient,brand guarantee
Front Working Table
with rolling steel ball structure
It can decrease the friction offeeding material,protecting the workpiece surface and also increase the security of the operator.
Cutting Blade
Material is 6CrW2Si
Rectangular blade,four cutting edges can be used,long service life

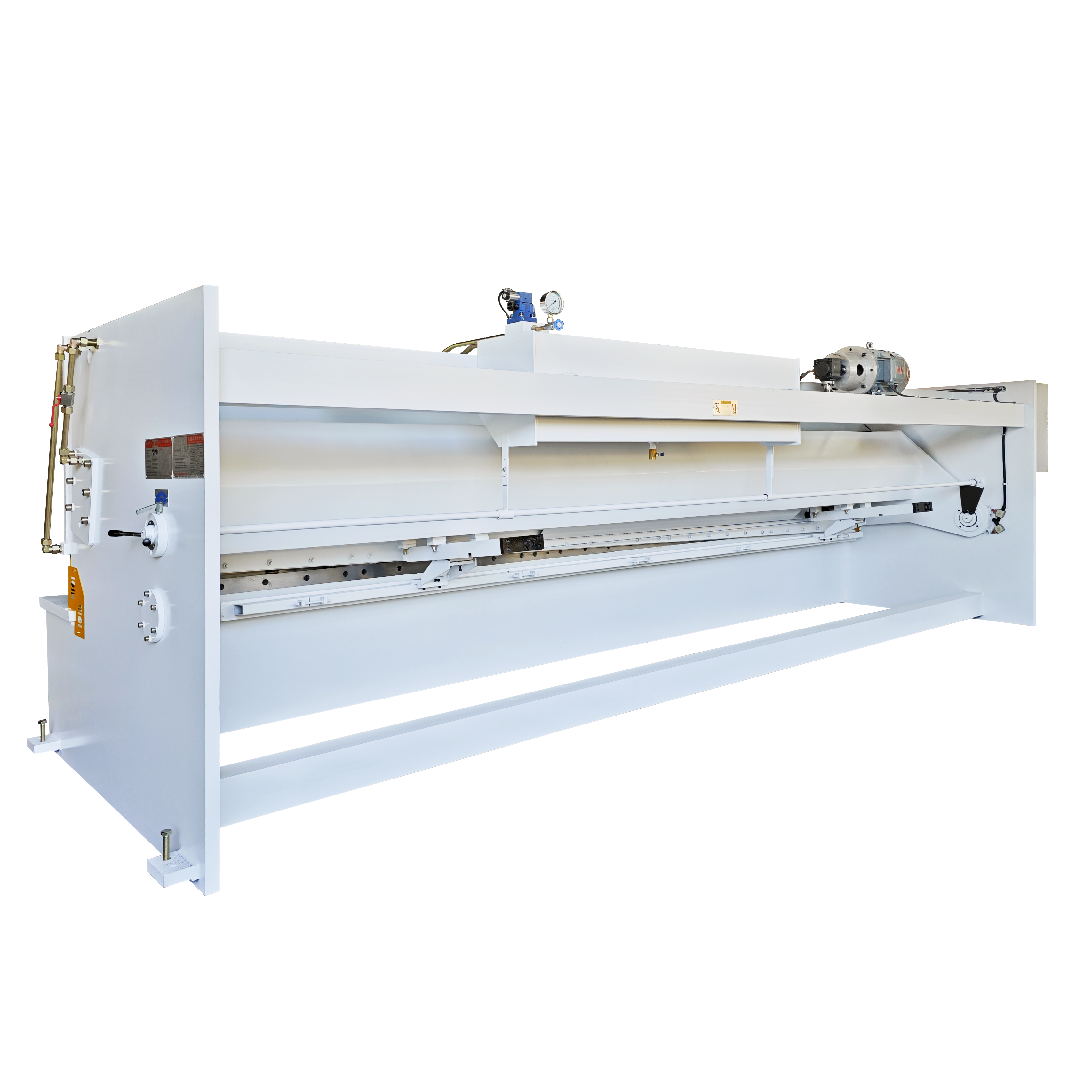

Machine rear view
1.The second generation of shear. 2.Welded steel plate construction, heating to eliminate stress,with high strength and good rigidity. 3.Advanced integrated hydraulic system with and excellent reliabitity quality. 4.Rapidly,accurately and conveniently adjusting the blade clearance by motor 5.The adjustable rake angle can minimize plate deformation. 6.As the cutting beam has been designed in inner-inclined structure,it is easy for plates to fall down and the accuracy of products can be also guaranteed. 7.Shearing in sections,shadow-line cutting. 8.Counter for the motorized back gauge. 9.Back support device (optional).
