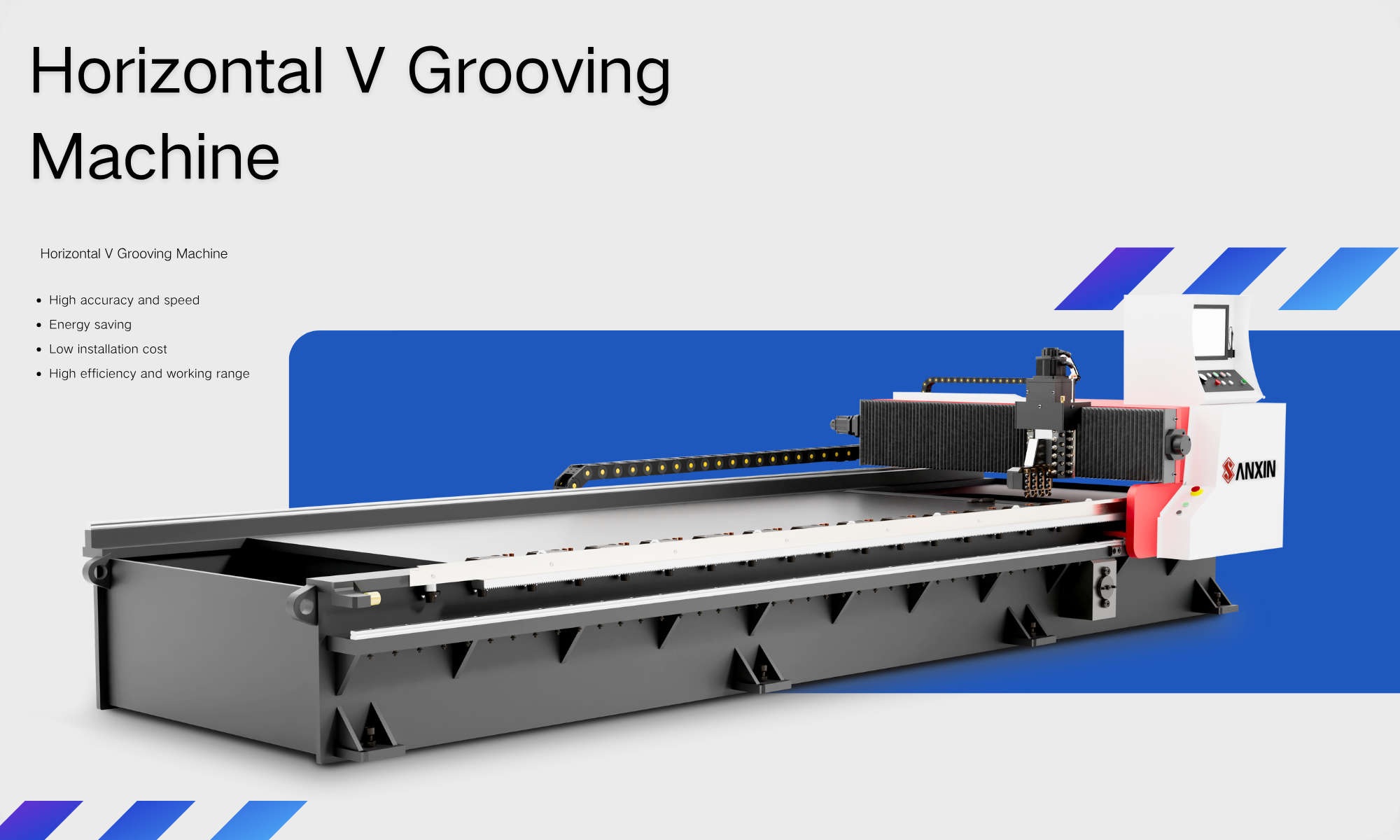

Sanxin PGNK series Horizontal V Grooving Machine body and beam adopt an integral welding frame, and the whole machine is annealed to ensure long-term use without deformation; the body and beam are processed by a gantry machining center and clamped at one time to ensure high precision and good running stability.
The tool holder adopts V-groove sliding clearance adjustable structure, ductile casting material, high strength, good wear resistance and guidance.

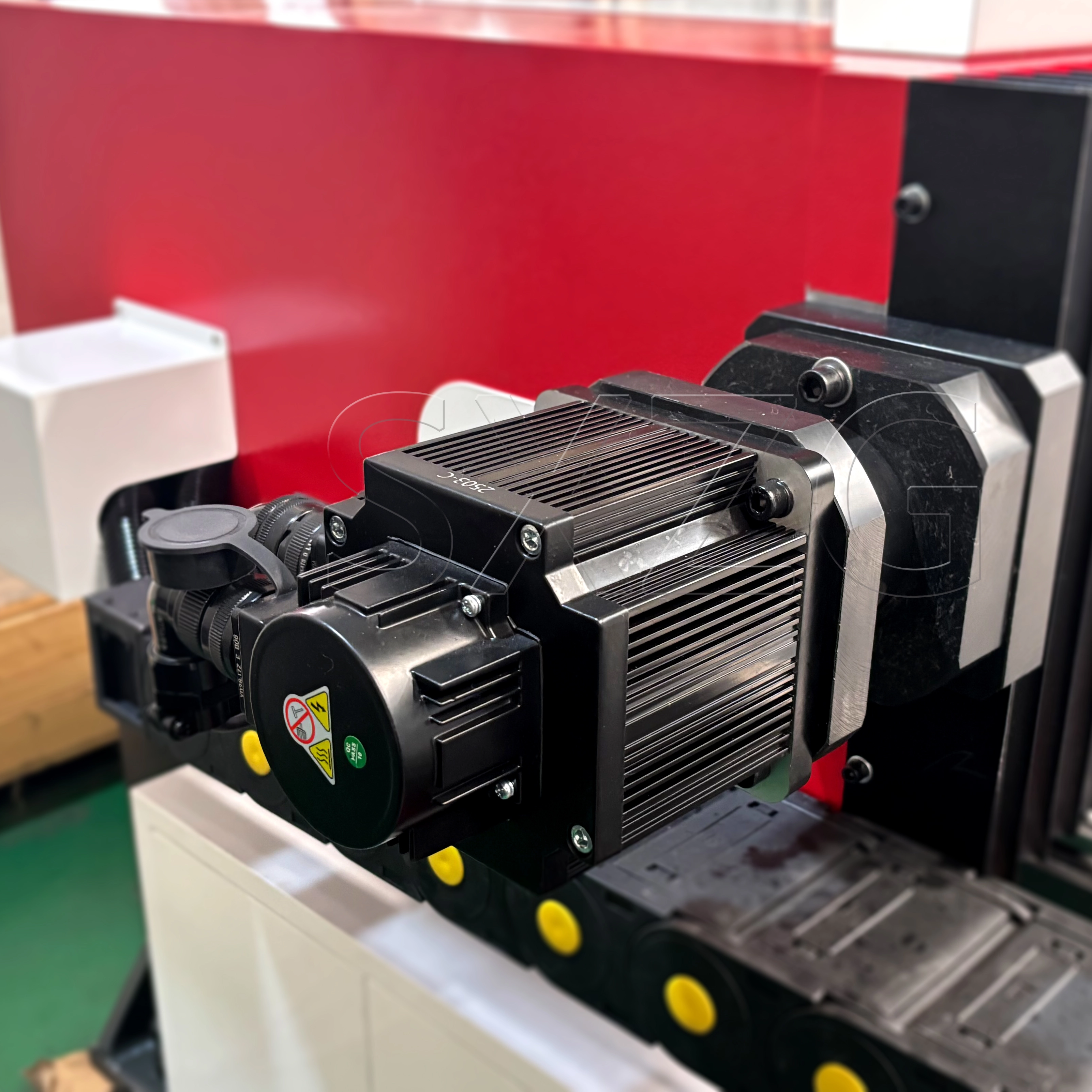

Sanxin V groover machine equipped with servo drive, X axis servo motor and reducer are driven by rack and pinion, Y1, Y2, Z axis are driven by ball screw, which has the characteristics of high grooving efficiency, low maintenance cost and low noise pollution.
In order to improve planing efficiency and blade life, this equipment adopts the structure of 4 alloy knife holders.
The control system adopts advanced PC+NC control mode, and the man-machine interface adopts large-size touch screen, which has the characteristics of flexible and convenient operation, high control precision and strong stability.
Standard Equipment
  CNC system, Easycat,Taiwan
  Servo motor, Easycat,Taiwan
  Ball Screw,HINWIN ,Taiwan
  Linear Guide,HINWIN,Taiwan
  Gear-rack drive,YYC,Taiwan
  Ball Bearing,NSK-Japan
  Grooving Cutter,KORLOY,Korea
  Main electrics,Schneider,France
  Oil Cylinder,Yuhua,top in China
  Oil pump,Sunny,USA


MECHANICAL PROCESSING

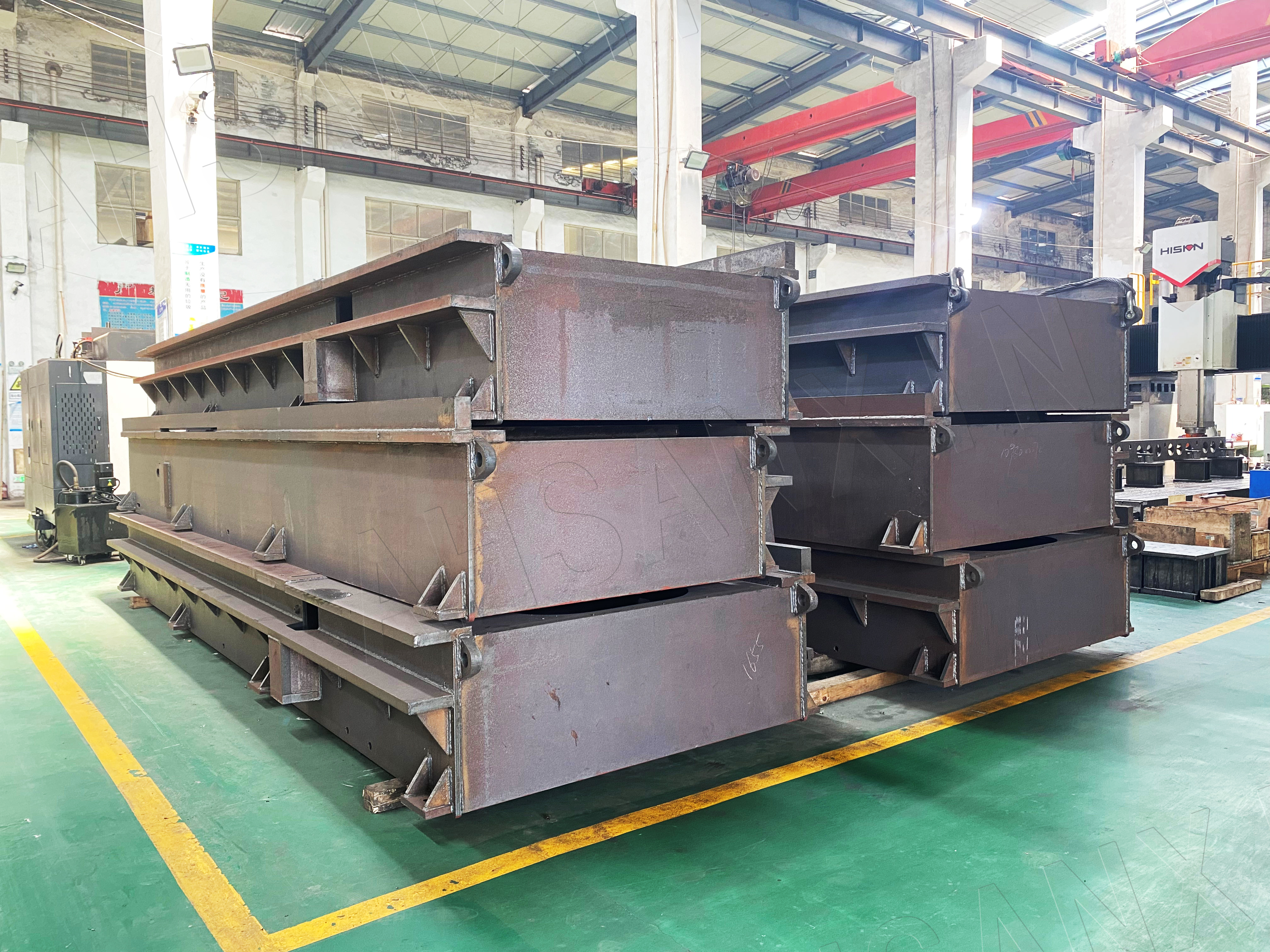

Through the overall processing, heat treatment, shot blasting and welding of the body through large CNC processing equipment, our frame is more stable and durable, while ensuring the final processing accuracy.
Integrated processing
Heat treatment
Shot blasting
Parts & accessories processing
Welding technology




                           Control system


                                            15-inch CNC touch control display
                                            PLC interrupt function
                                            Avoid crashing

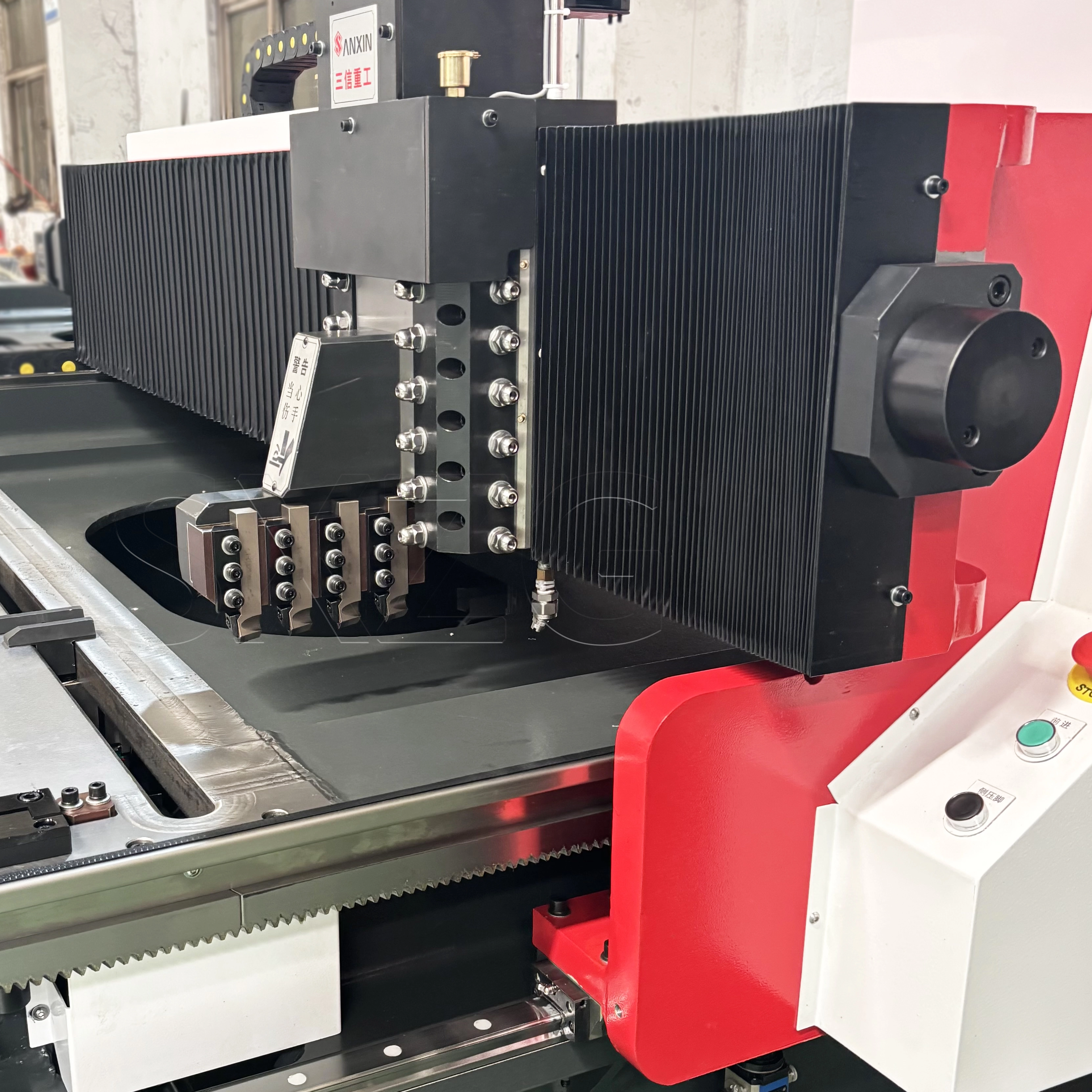

Cuting Head & blades


Cutting head moving up and down,left and right by servo motor.
Four blades desing to reduce deformation of the workpiece;
Imported cutting blades with long using life;
White steel blades for carbon steel,copper and aluminum;
Alloy blade grooves stainless steel;












个搭嘎个的撒干撒的歌诗达干撒干撒是的

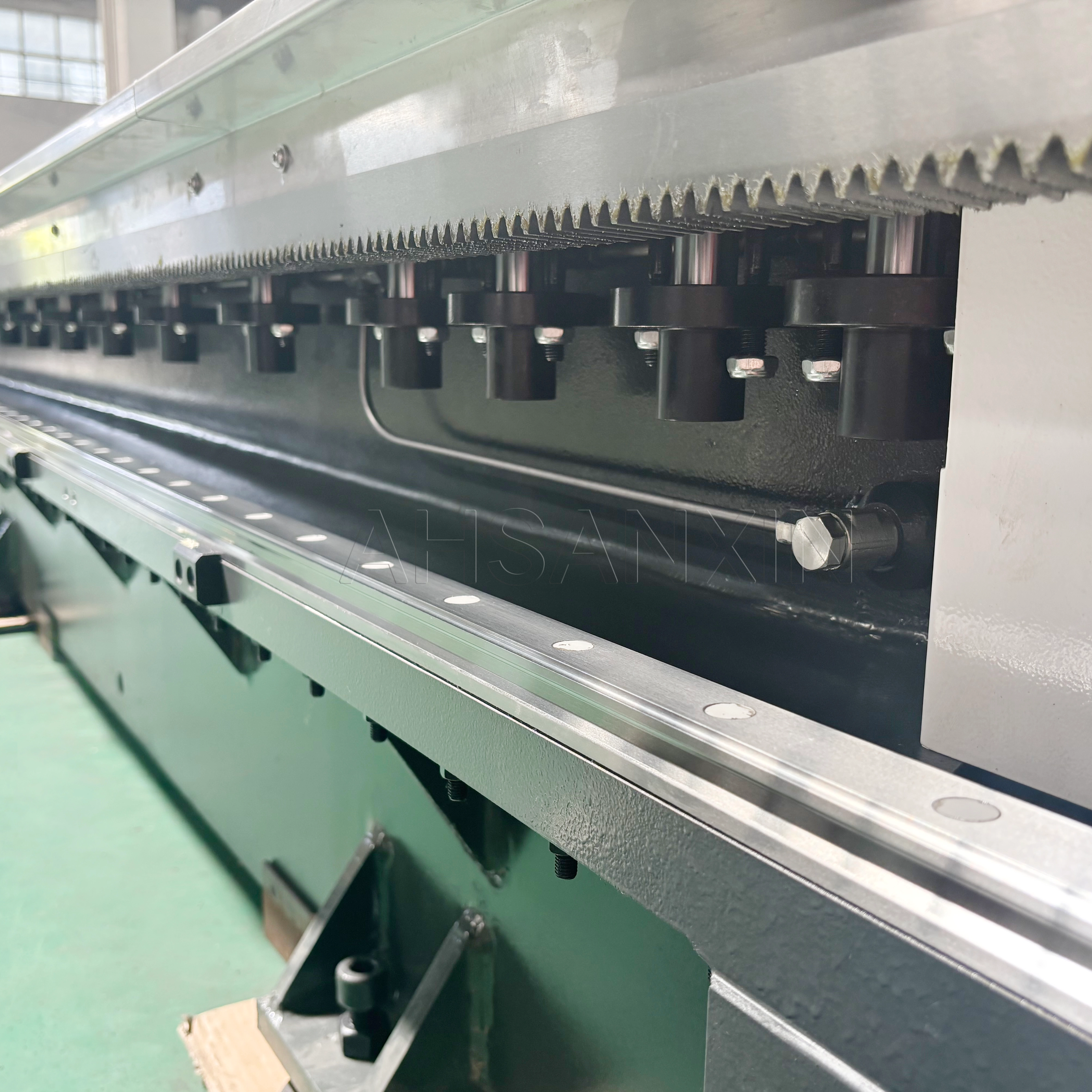

Heavy duty linear guide rail

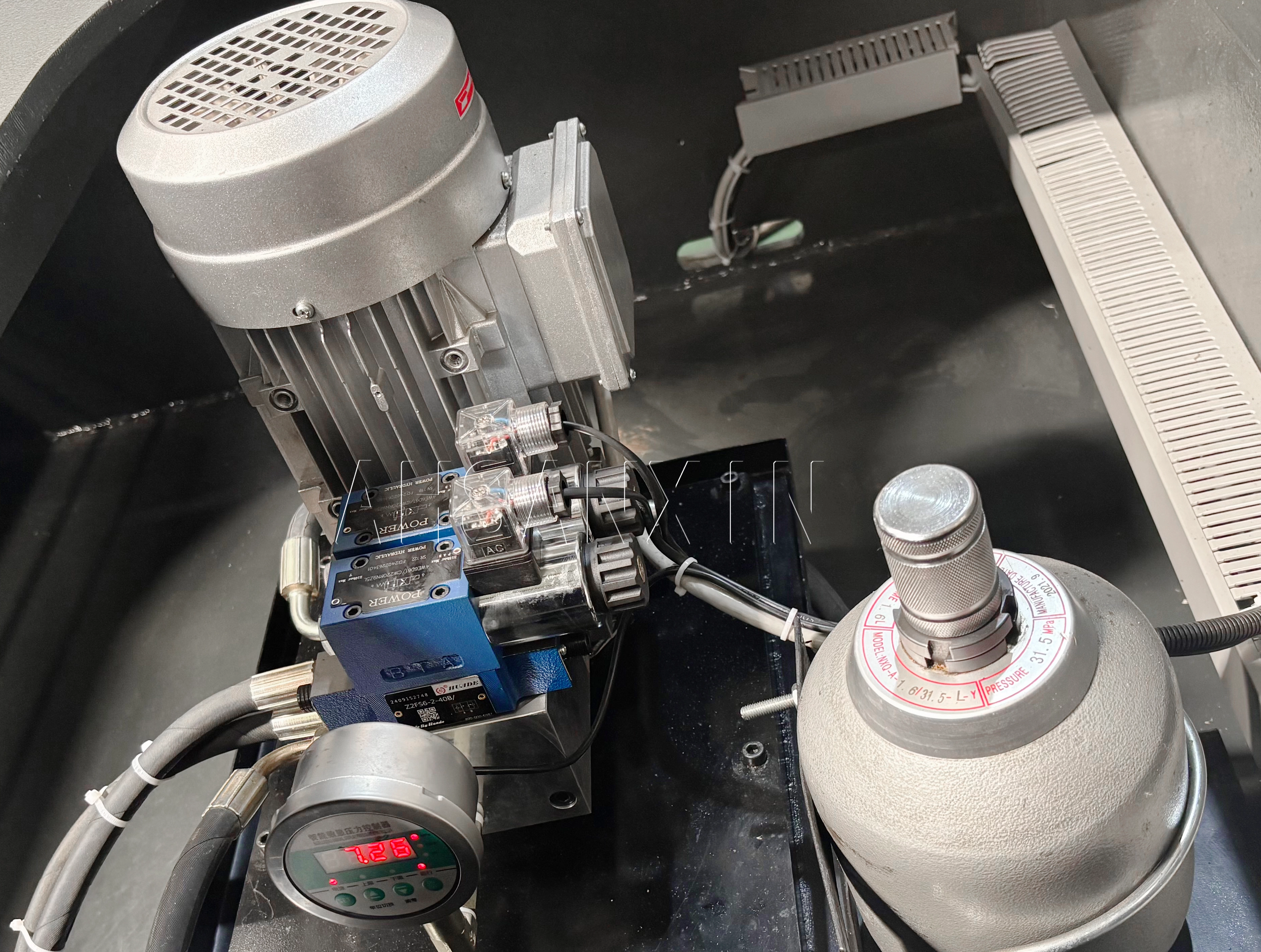

Hydraulic system for better clamping















Technical Specifications
