Sanxin hydraulic guillotine shear integrates a huge number of technological innovations. The design of the extreme rigid machine body was engineered with state of the art tools,
using the finite elements method and computer simulations and the drive concept has been completely renewed. Thanks to an energy-efficient drive with a converter-controlled motor and a hydraulic pump,
the machine is able to handle the most difficult cutting operations and materials. The guillotine shearing machine with a working length of 1600 mm to 6000mm is able to cut up to 40 mm steel sheet.
Guillotine shear
Guillotine shear
Guillotine shear

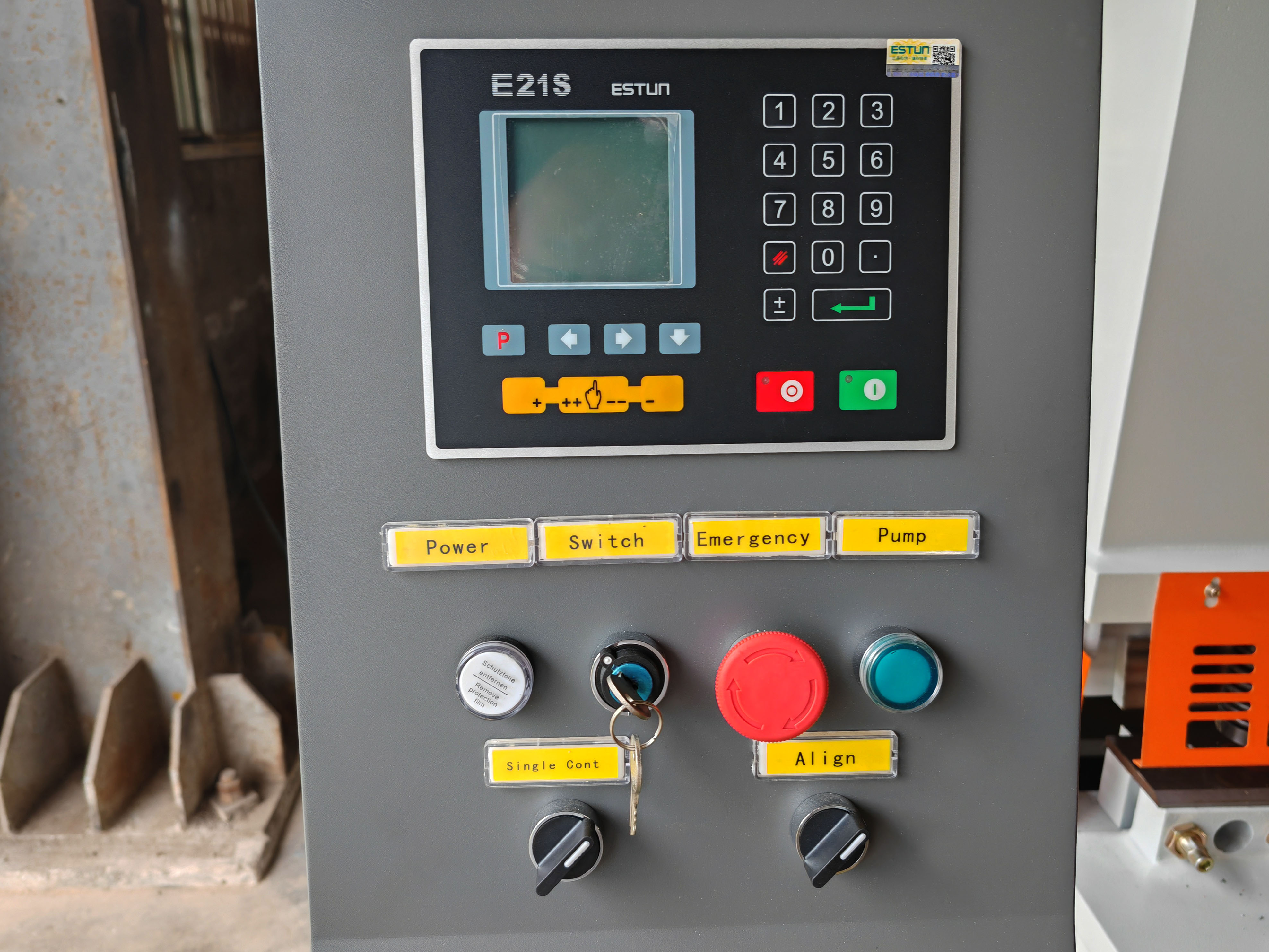

E21S Controller
* Backgauge and block control * Control for general AC motors, frequency inverter * Intelligent positioning * Stock counter * Holding/decompression time setting * Program memory of up to 40 programs * Up to 25 steps per program * One side positioning * Retract function * One key backup/restore of parameters * mm/inch * Chinese /English
Side Motor
blade gap adjustment
Blade clearance is electrically controlled and system displayed
Schneider
main electrical components
Stable efficient,brand guarantee

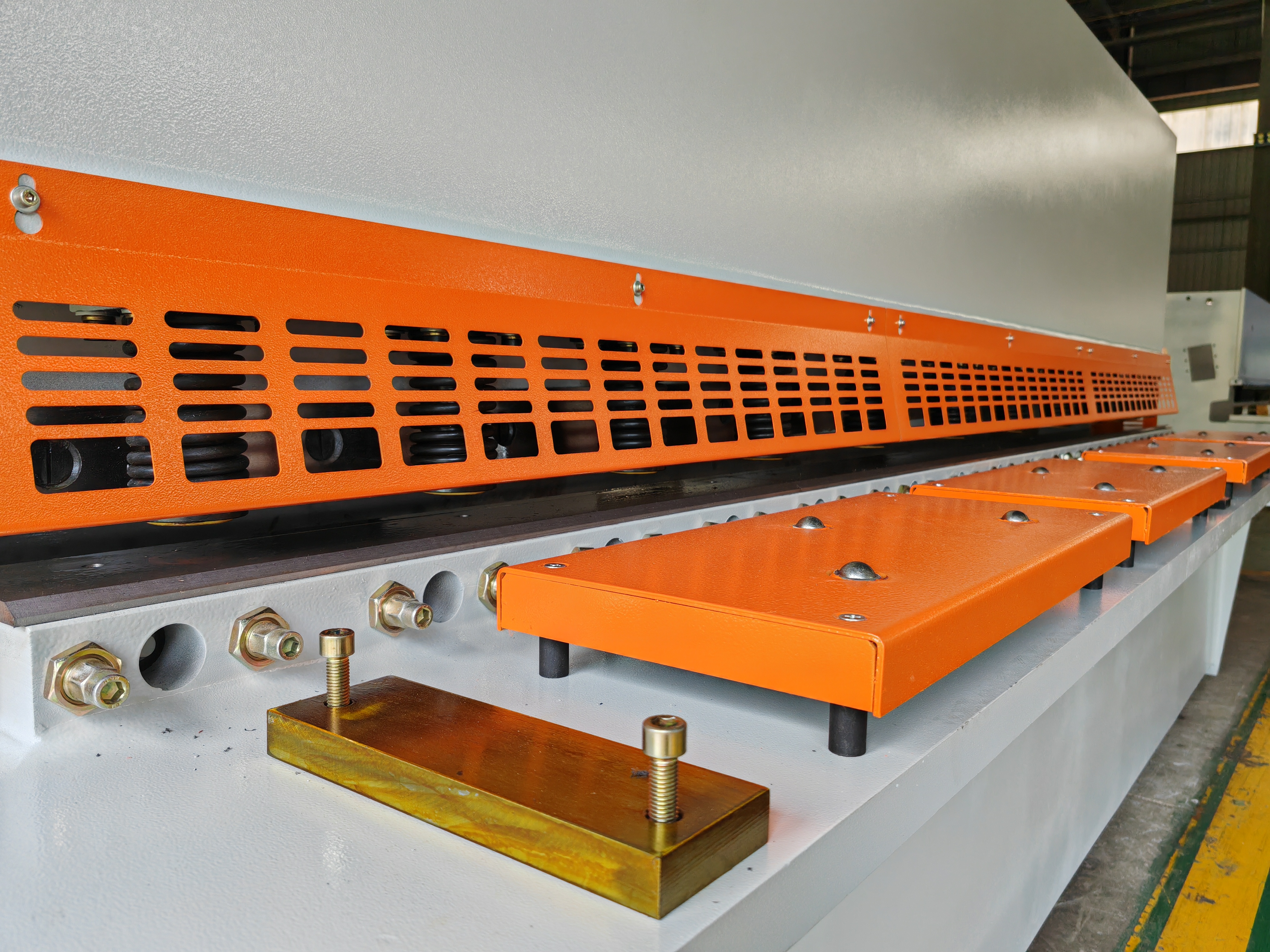

Front Working Table
with rolling steel ball structure
It can decrease the friction offeeding material,protecting the workpiece surface and also increase the security of the operator.
Cutting Blade
Material is 6CrW2Si
Rectangular blade,four cutting edges can be used,long service life
Machine rear view
1.The second generation of shear. 2.Welded steel plate construction, heating to eliminate stress,with high strength and good rigidity. 3.Advanced integrated hydraulic system with and excellent reliabitity quality. 4.Rapidly,accurately and conveniently adjusting the blade clearance by motor 5.The adjustable rake angle can minimize plate deformation. 6.As the cutting beam has been designed in inner-inclined structure,it is easy for plates to fall down and the accuracy of products can be also guaranteed. 7.Shearing in sections,shadow-line cutting. 8.Counter for the motorized back gauge. 9.Back support device (optional).
Technical Specifications
