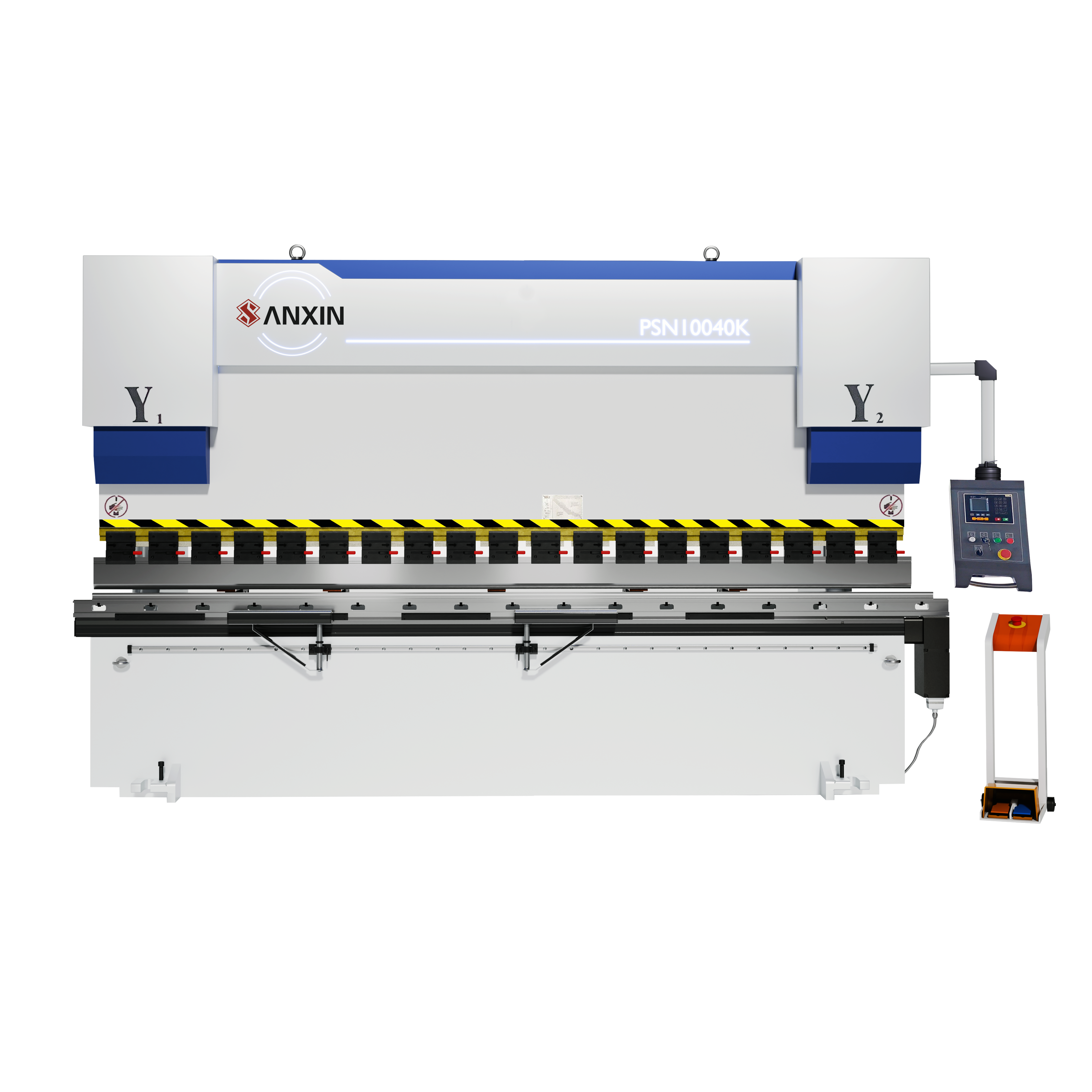

Europe design with heat treatment of machine frame and high rigidity workbench; E21 Controlled back gauge with high precision ball screws; Fast clamping for easy changing punches; Top brand motor and pump ensuring stable power output; Integrated hydraulic systems(Rexroth valves) ensuring different bending speed switch smoothly Optional crowing device ensuring best bending precision and straightness

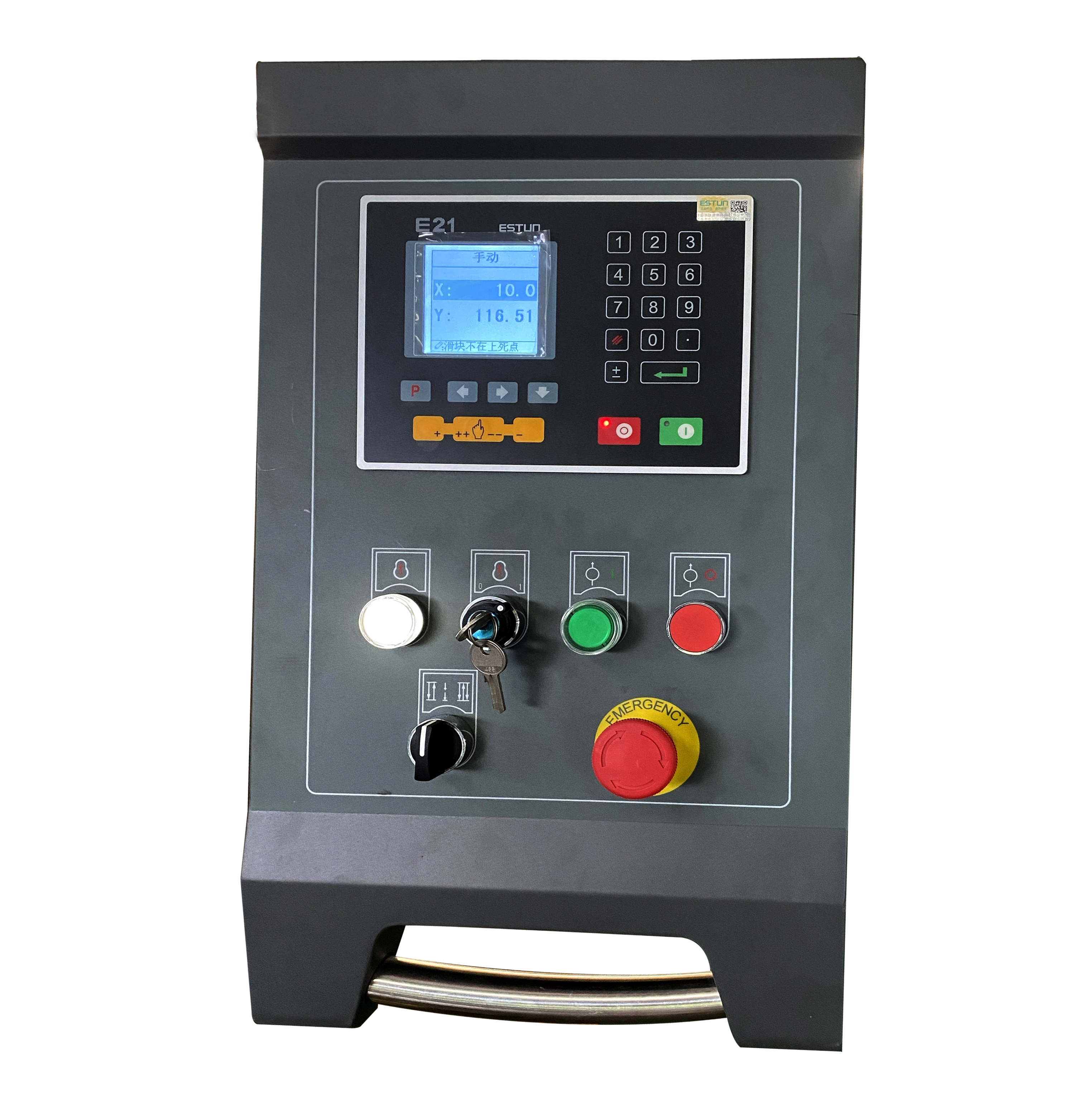

E21 Controller
Backgauge control Step motor and inverter control Cylinder adjustment position control 40 programs stored, 25 steps per program One-key backup / restore mm / inch Chinese / English

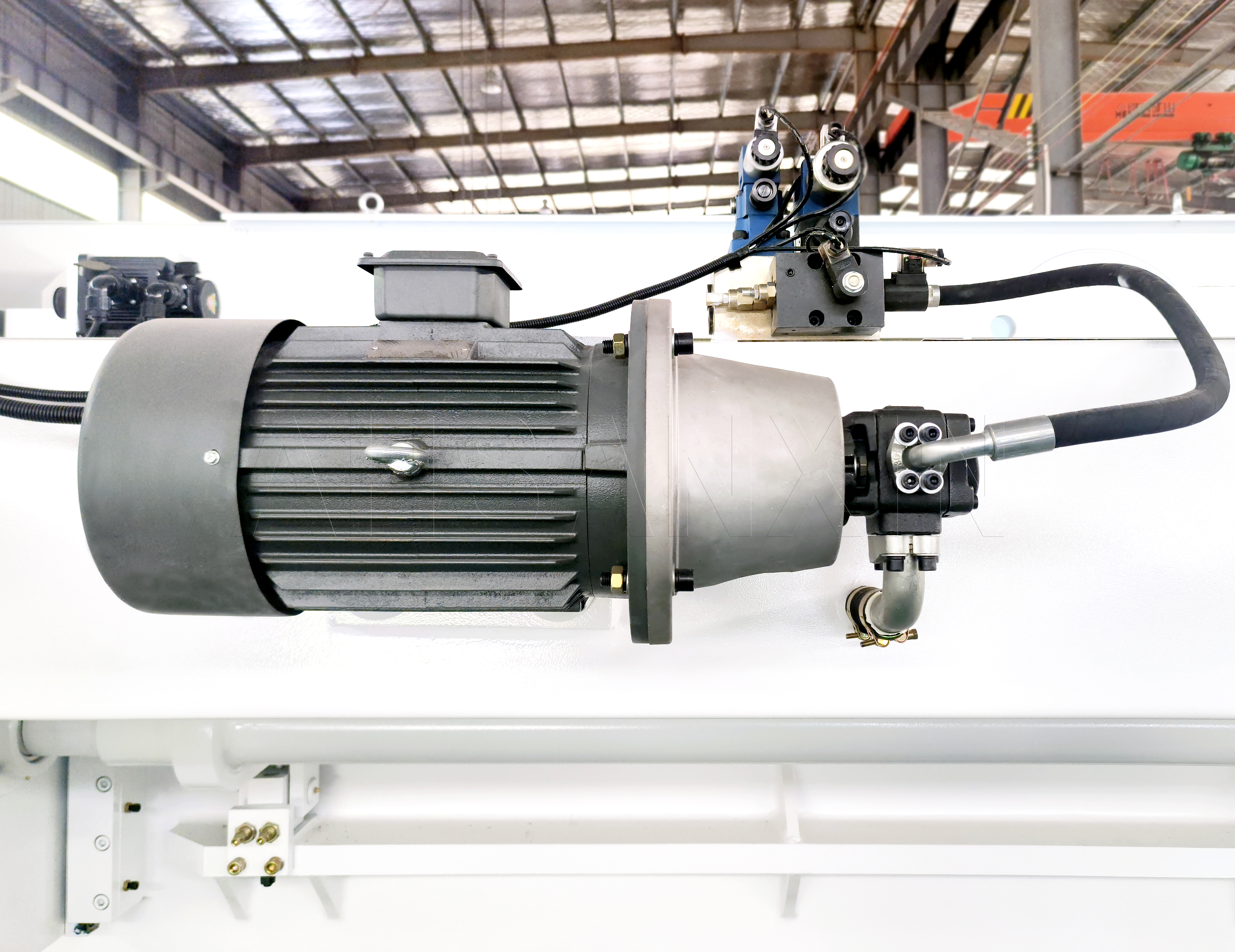

Motor and pump
Using Siemens motor and high performance Sunny pump to offer most stable
power supply with less noise.
Electrics
Main electric components with Schneider brand
Taiwan Shilin inverter to keep good accuracy and speed
Hydraulic systems
Using Japan NOK Seals in the cylinders to improve cylinder using life
Germany Rexorh integrated valves can significantly minimize the oil leakage
EMB Connector
Adopts Germany EMB tube connector,can efficiently prevent welding slag blocking the valves and effecting oil flow with no oil leakage
Back guage
Ball screw with high performance ball screw and linear guide
Back guage driven by step motor with inverter
Automatic controlled by E21
Stop fingers
Heavy duty fingers for both thin and thick materials
Equipped with double linear guides for moving smoothly and stable
Optional motorized stop fingers
Fast clampings
Equipped with quick release system for easy and fast changing the top punch
Optional hydraulic wila clamping systems

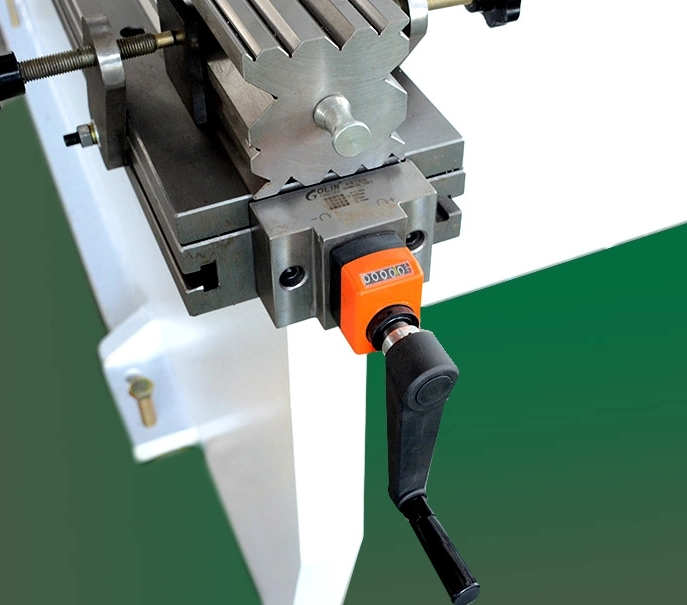

Crowning
Optional manual crowning for better bending angle accuracy and straightness
Technical Specifications
