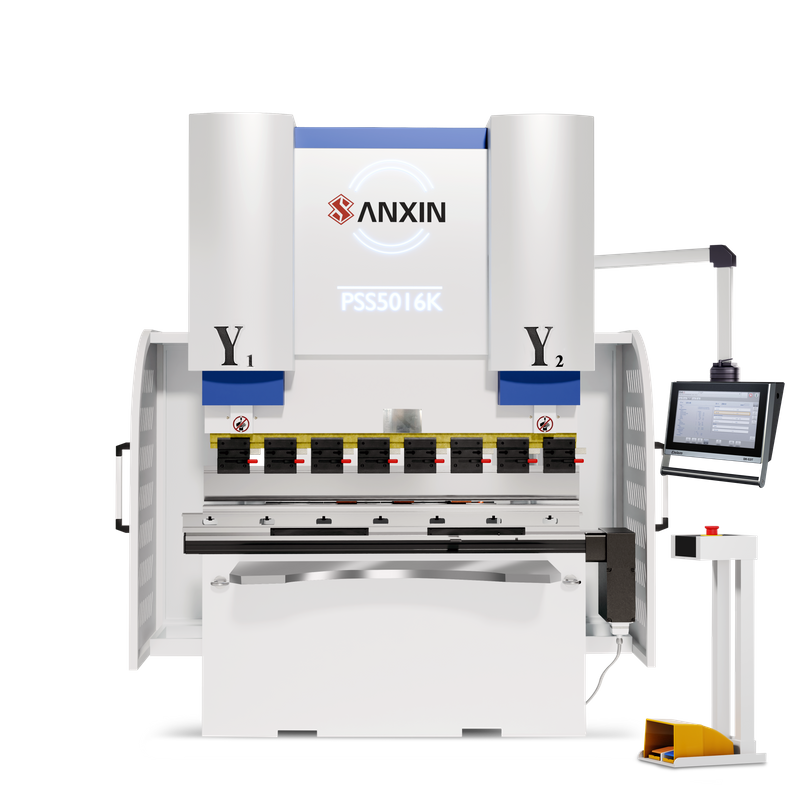

Bending Force 40 to 100ton
-
Bending Length 1300 to 3000mm
-
Up to 75% Energy Saving
-
Y Axis High Speed Bending
-
Environmental Protection
-
No Hydraulic System, No Hydraulic Oil
-
15.6 Inch Touch Screen Industry System
|Standard equipment
 | CNC DA53TX controller provide data programming |
| Sanxin BGA-4 Axis X,R,Z1,Z2 |
| X1,X2,R1,R2,Z1,Z2-Axis as Optional |
| Single V die and Standard CNC Punch |
| Sanxin Aotu Crowning Table |
| Linear guides and ball screws with Taiwan Hiwin |
| Electrical cabinet with Schneider,Omron |
| Japan SNK bearings |
| components CE, SGS, NR12 Certifications |

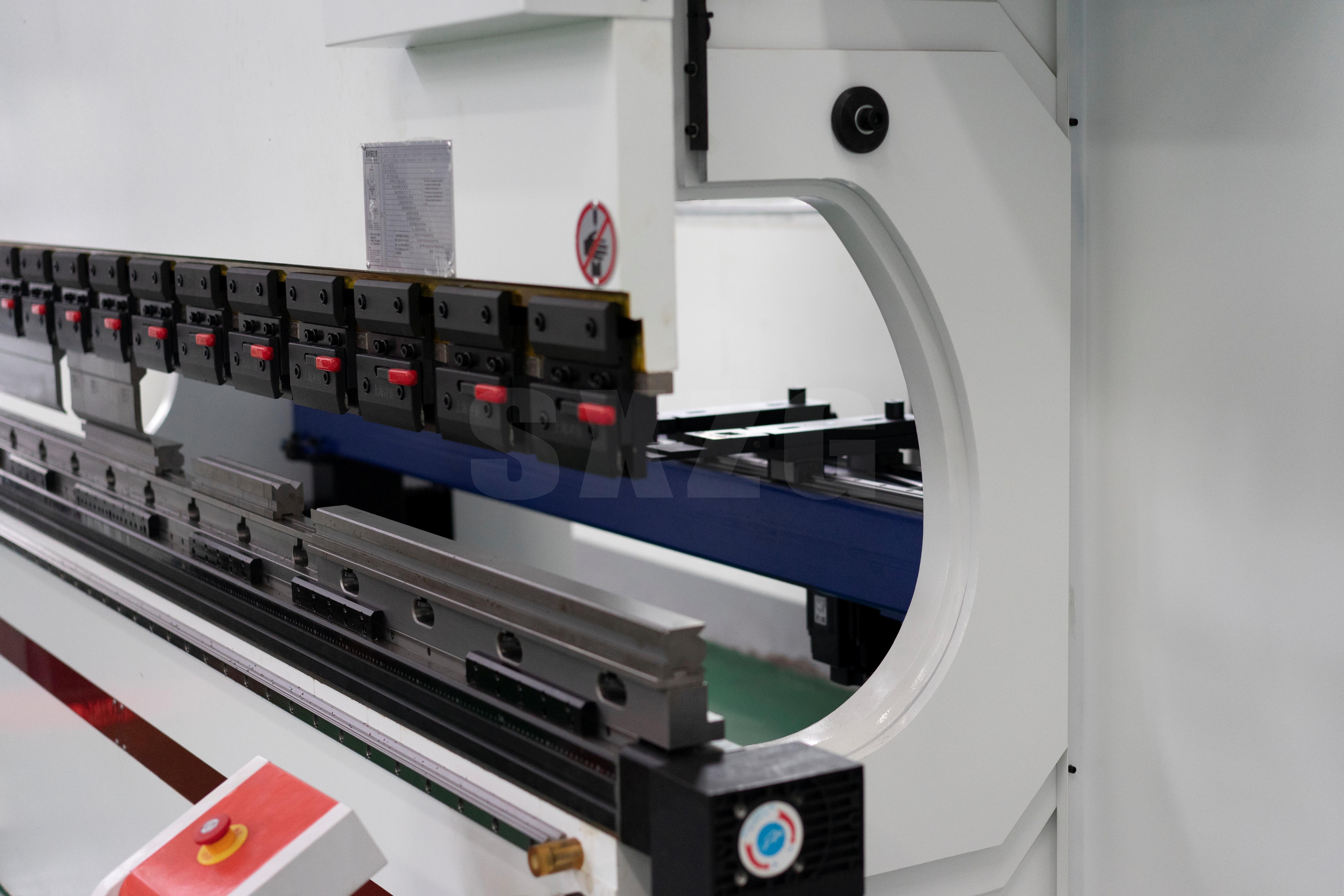

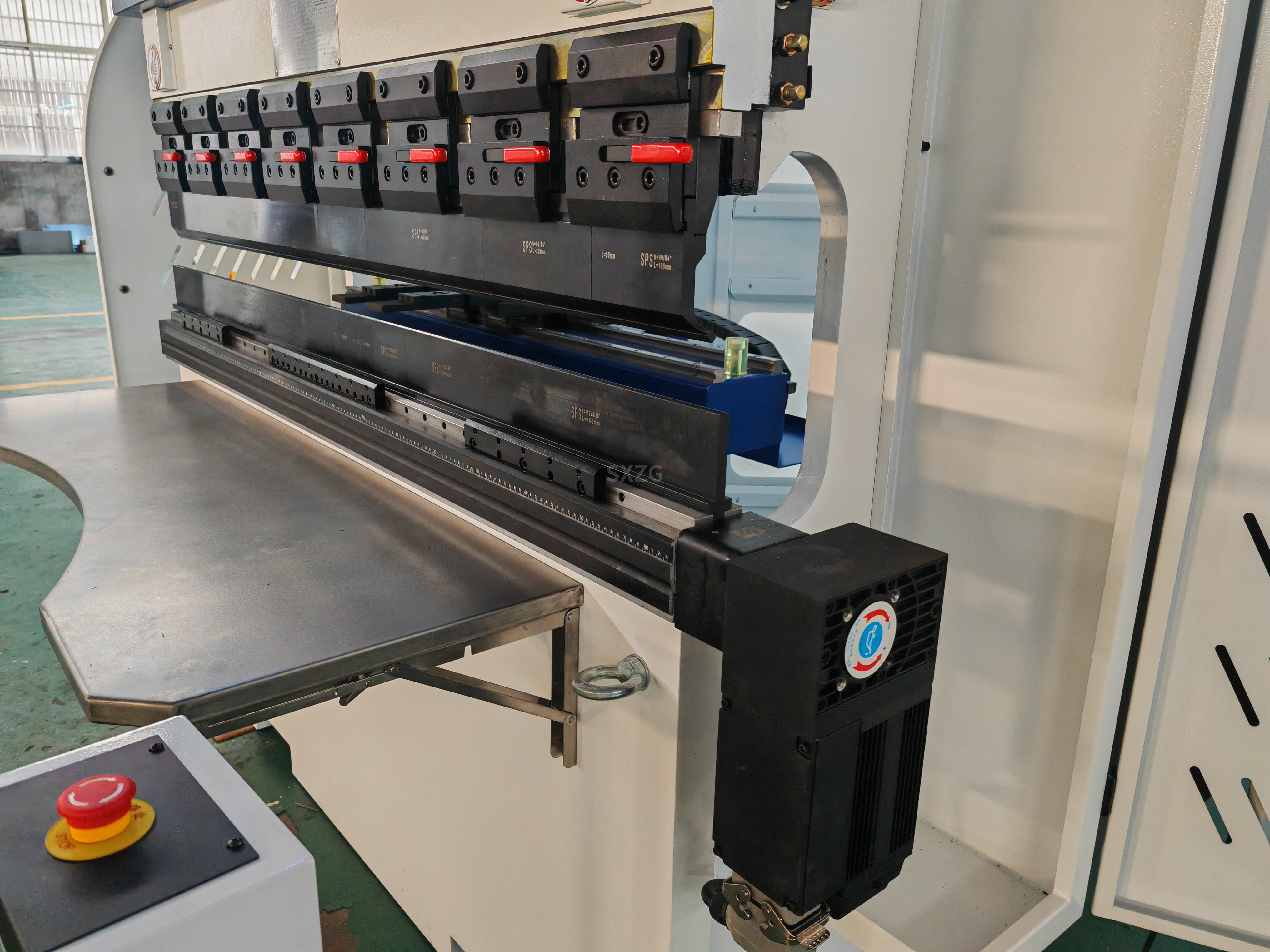

|SANXIN PUNCH TOOLING
Sanxin standard equipped fast clamp help customer replace the top
punch toolings in very short time. Convenient and time-saving. Fast
intermediate loading and unloading function to improve work efficiency.
|DELEM DA53TX Controller
• Equipped with a 15.6-inch 1080P resolution capacitive touchscreen.
•Supports 2D graphics programming capabilities
• Supports 6+1 axis control and Gigabit Ethernet USB interface
•Advanced sheet metal bending algorithm and motion control
algorithm
•High-speed acceleration and deceleration algorithm and trajectory
foresight algorithm are used
•Magnetic grid ruler and high digit encoder double loop control
|FEA & Stress Analysis
Finite element analysis is used to analyze the deformation and safety factor
of key mechanical parts of the machine tool to ensure the high rigidity
requirements of the machine tool as a whole and the reliability of long
term use.

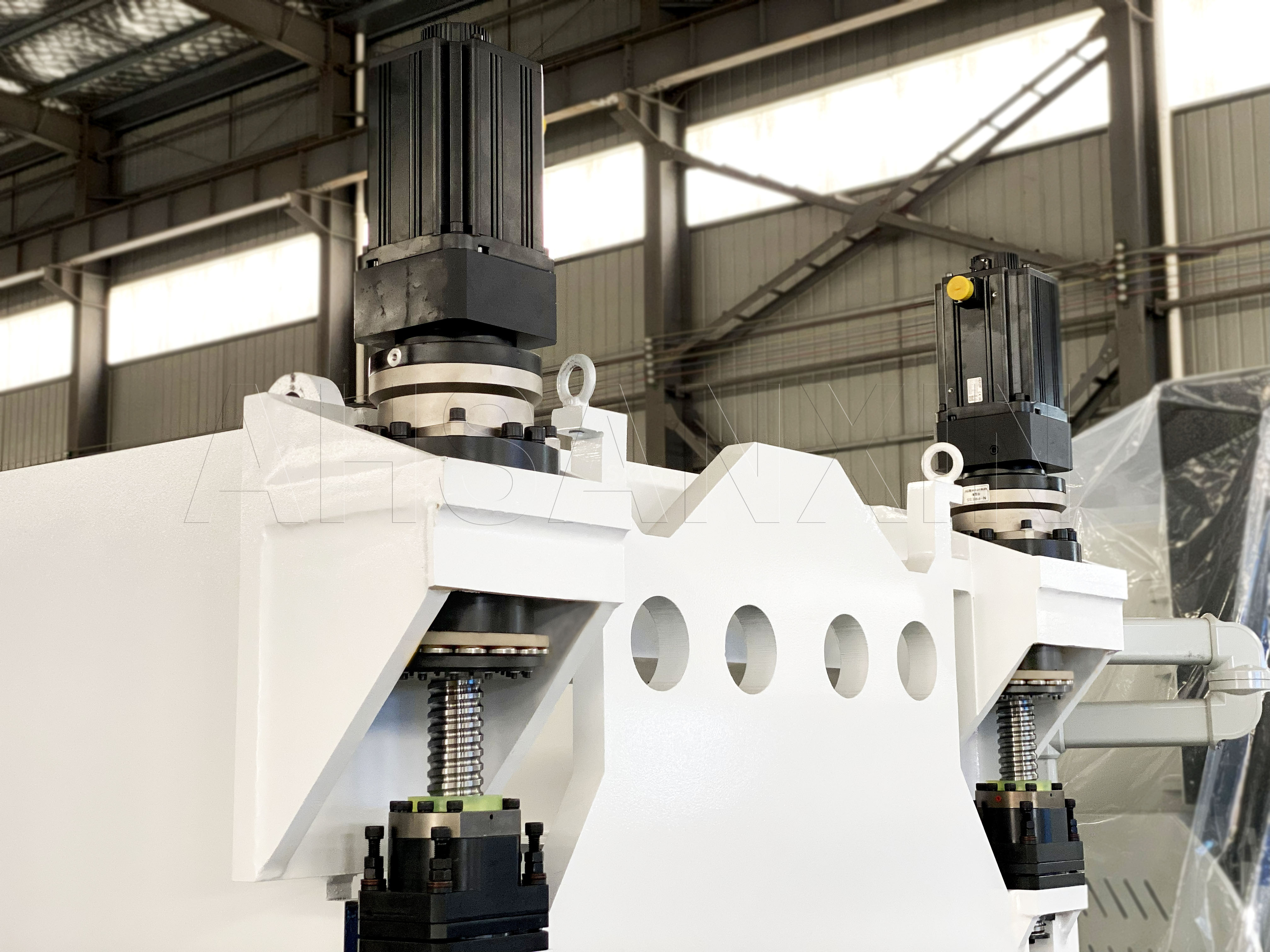

|Full electric cylinder
Sanxin pure electric cylinder mainly adopts servo motor control to
ensure accurate positioning and consistency of bending angle.
Compared with hydraulic system, it does not require hydraulic oil,
consumes less power while working, and has no complex pipelines,
thus reducing leakage risk and maintenance costs. The electric
cylinder is easy to integrate with CNC system to realize automation
and complex bending operations, and can quickly and smoothly
perform acceleration and deceleration bending operations. Due to
less wear and tear of moving parts, it can achieve a longer life.

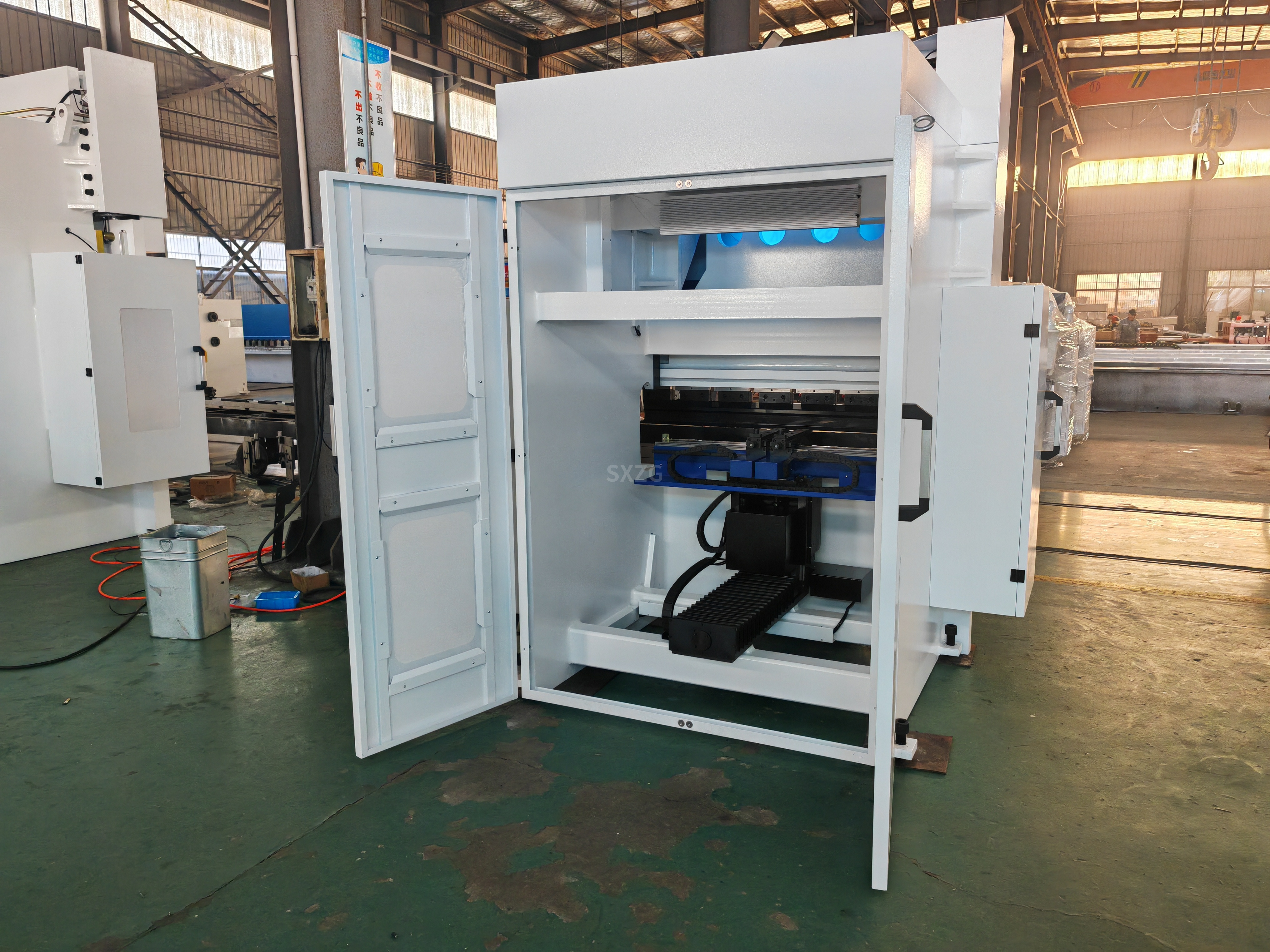

|Electrical cabinet
The electrical cabinet consists of motors, controllers, sensors, variable
frequency drives and cooling systems. The French Schneider Electric high
current-carrying capacity switch cabinet ensures stable power supply for
high-demand industrial equipment through low-resistance copper busbars
and optimized design to reduce energy loss. It has advanced ventilation and
cooling design, compact layout, and space saving. It can be upgraded and
expanded according to specific needs without replacing the cabinet, in line
with international standards(e.g., IEC 60439-1).

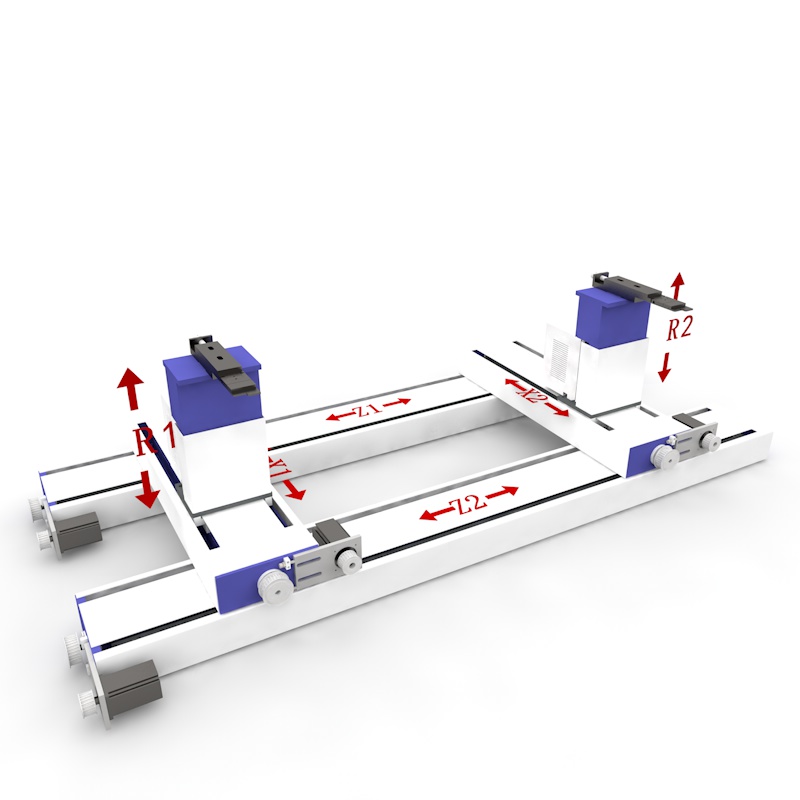

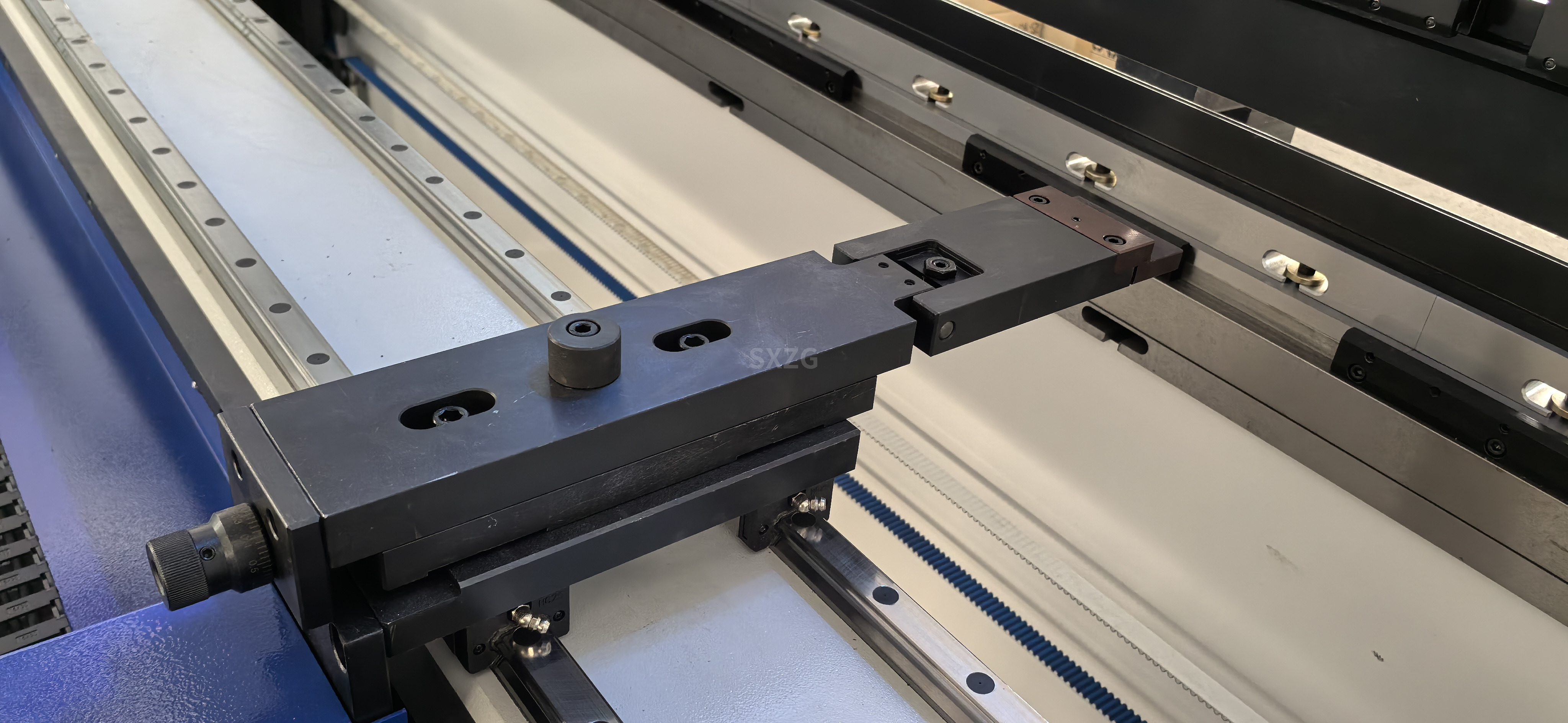

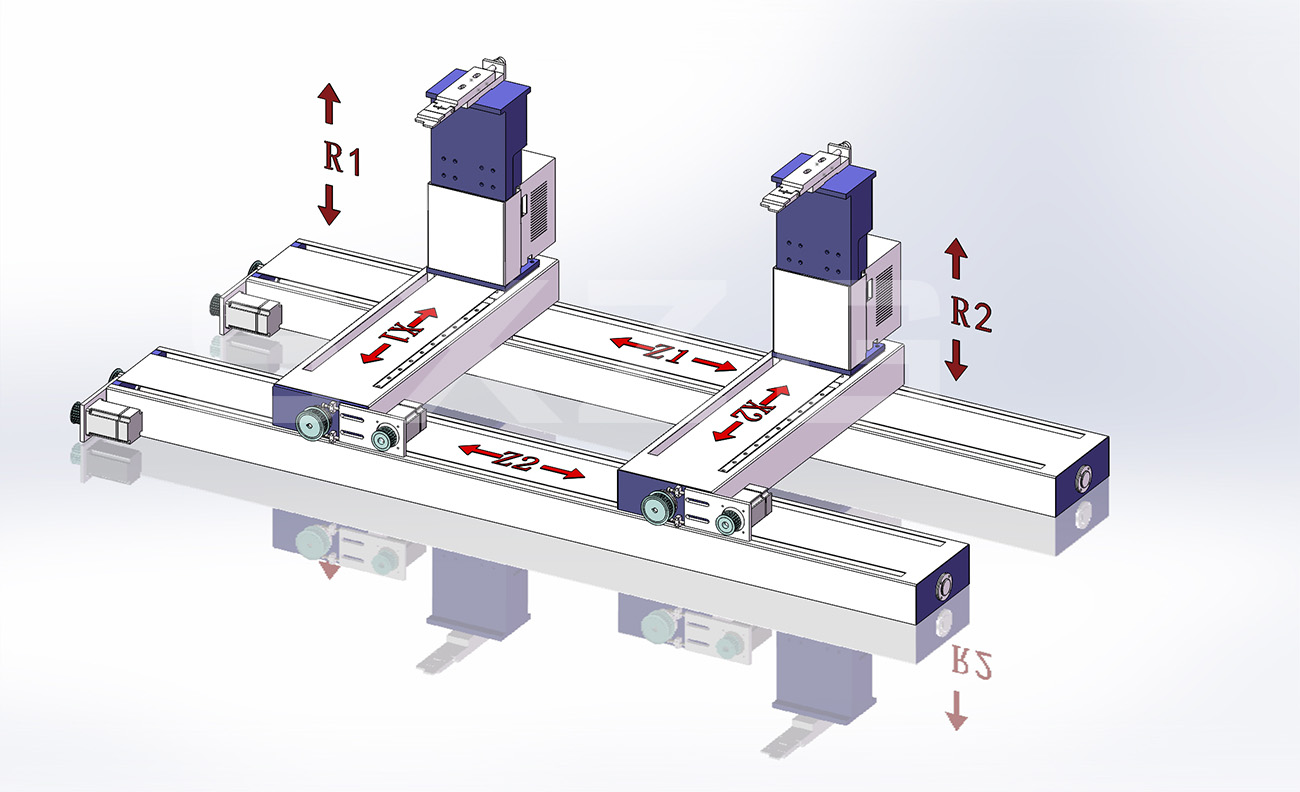

|Sanxin BGA-6 BackGauge
Press Brake 6-Axis CNC BackGauge With X1, X2, R1, R2 , Z1, Z2-Axis
Ball screws and double linear guide on X, R-axis
Precision linear guide and YYC rack on axes Z1‐Z2.
Fingers on linear guides and micro adjustment.
Mechanical accuracy ± 0.03 mm.
Axes X1‐X2 speed 500 mm/s
Axes R1‐R2 speed 500 mm/s
Axes Z1‐Z2 speed 1100 mm/s
|Optional Control
DELEM DA53T Touch Color CNC System
10.1" high resolution colour TFT
“Hot-key” touch navigation
Up to 4 axes (Y1,Y2 + 2 aux. axes)
Tool / material / product library
Advanced Y-axis control algorithms
for closed-loop as well as open-loop valves.
CNC Crowning control
USB memory stick interfacing
Profile-53TL offline software

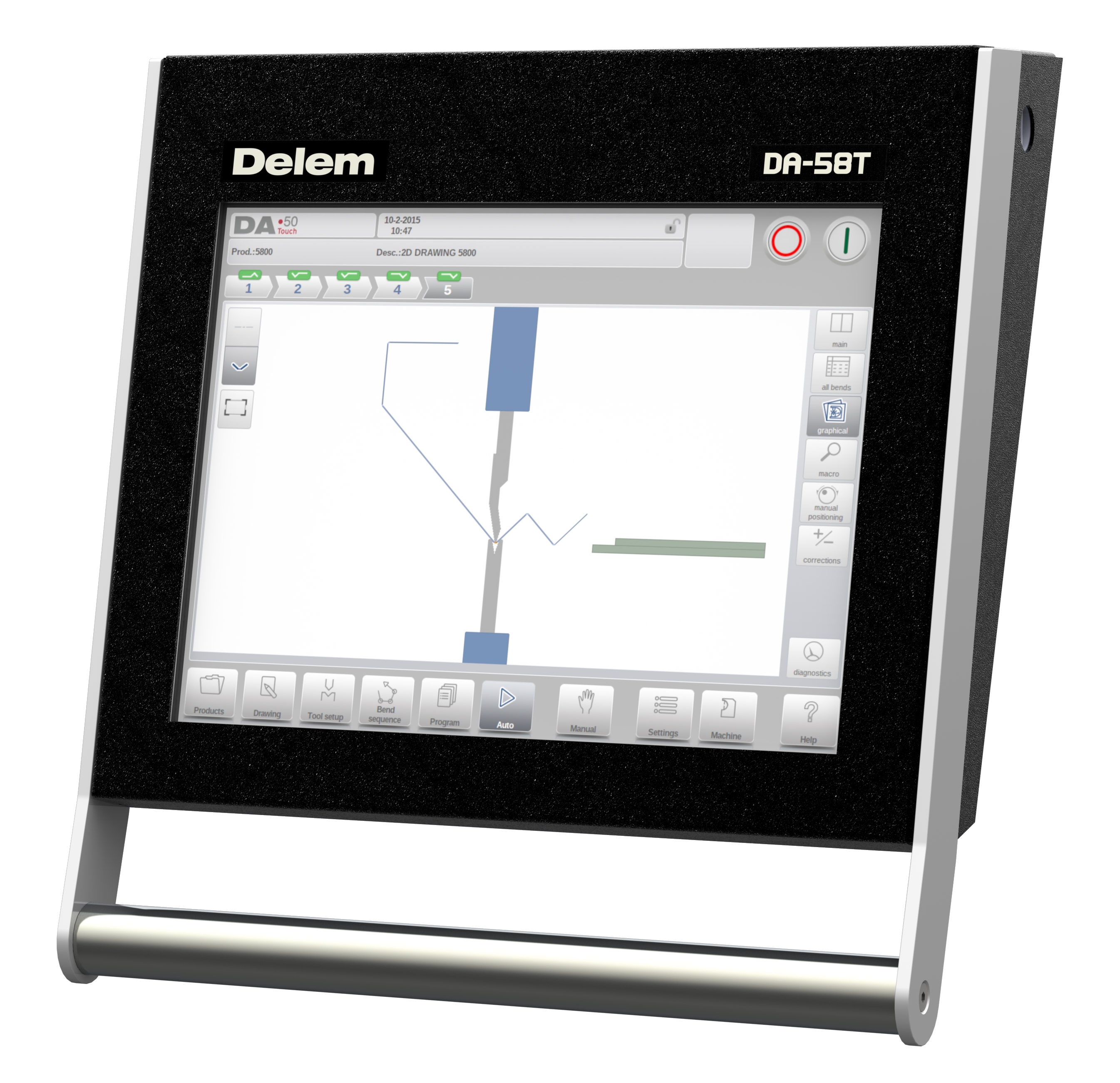

DELEM DA58T Color 2D graphical CNC System
15" high resolution colour TFT
2D graphical touch screen programming
Up to 4 axes (Y1,Y2 + 2 aux. axes)
Bend sequence calculation
Advanced Y-axis control algorithms for
closed-loop as well as open-loop valves.
CNC Crowning control
USB, peripheral interfacing
Profile-58TL offline software

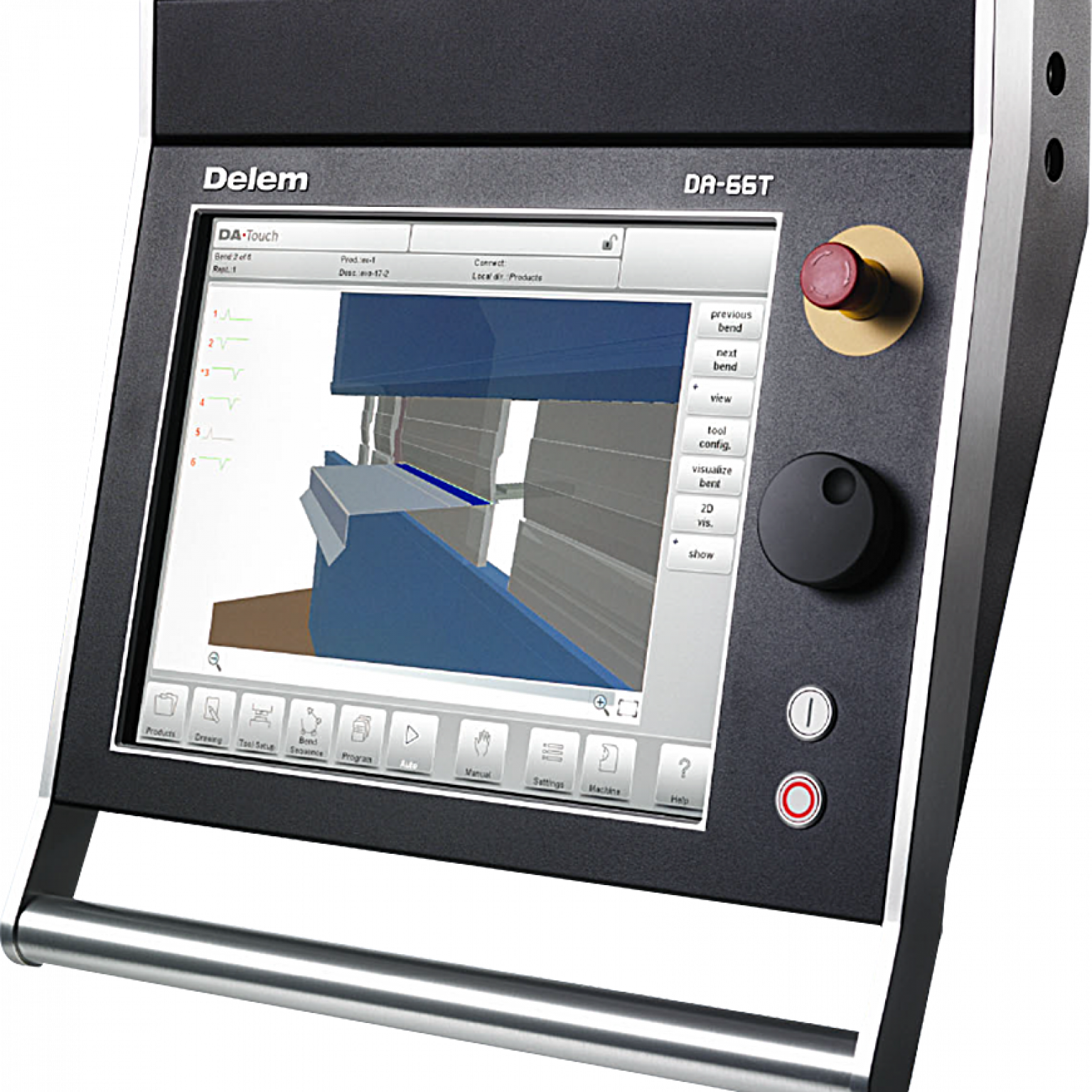

DELEM DA66T Touch 2D Graphical Control
17" high resolution colour TFT
2D graphical touch screen programming mode
3D visualisation in simulation and production
Full Windows application suite
Delem Modusys compatibility (module
scalability and adaptivity)
USB, peripheral interfacing
Profile-T2D offline software
Sensor bending & correction interface
|Optional Surface

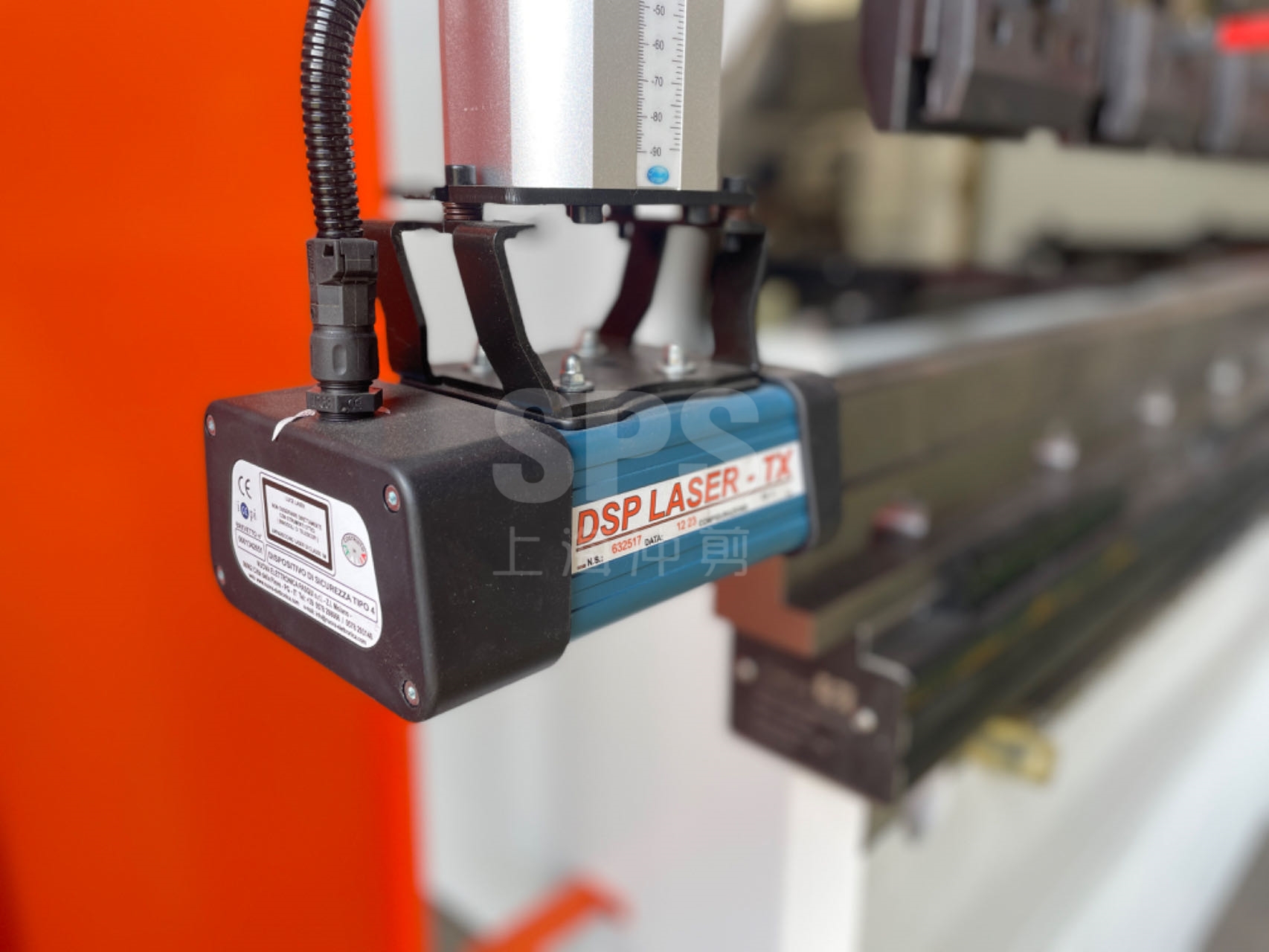

Optional Laser Protection
Multiple back-gauge design

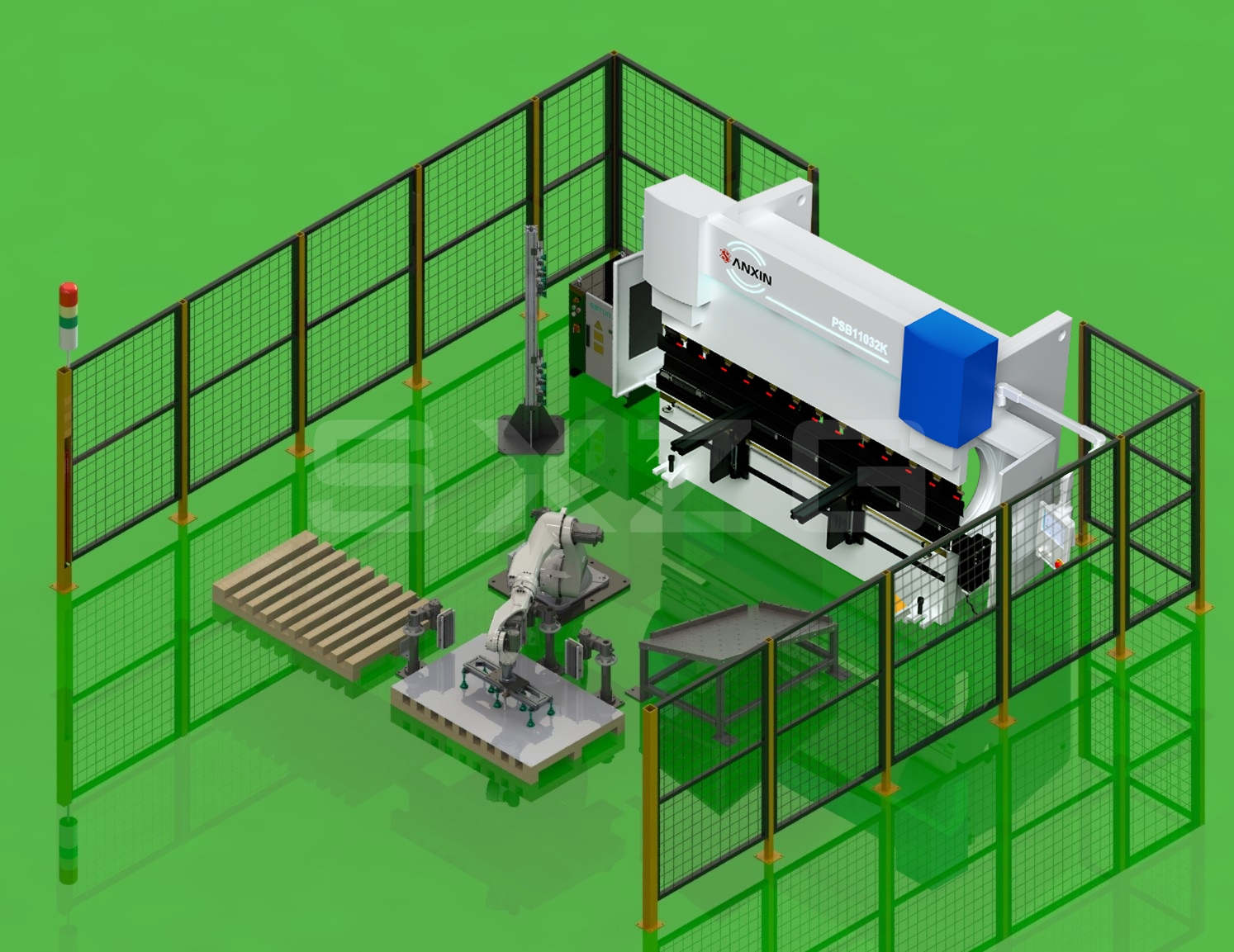

Robotic Arm system
|
Product Packaging

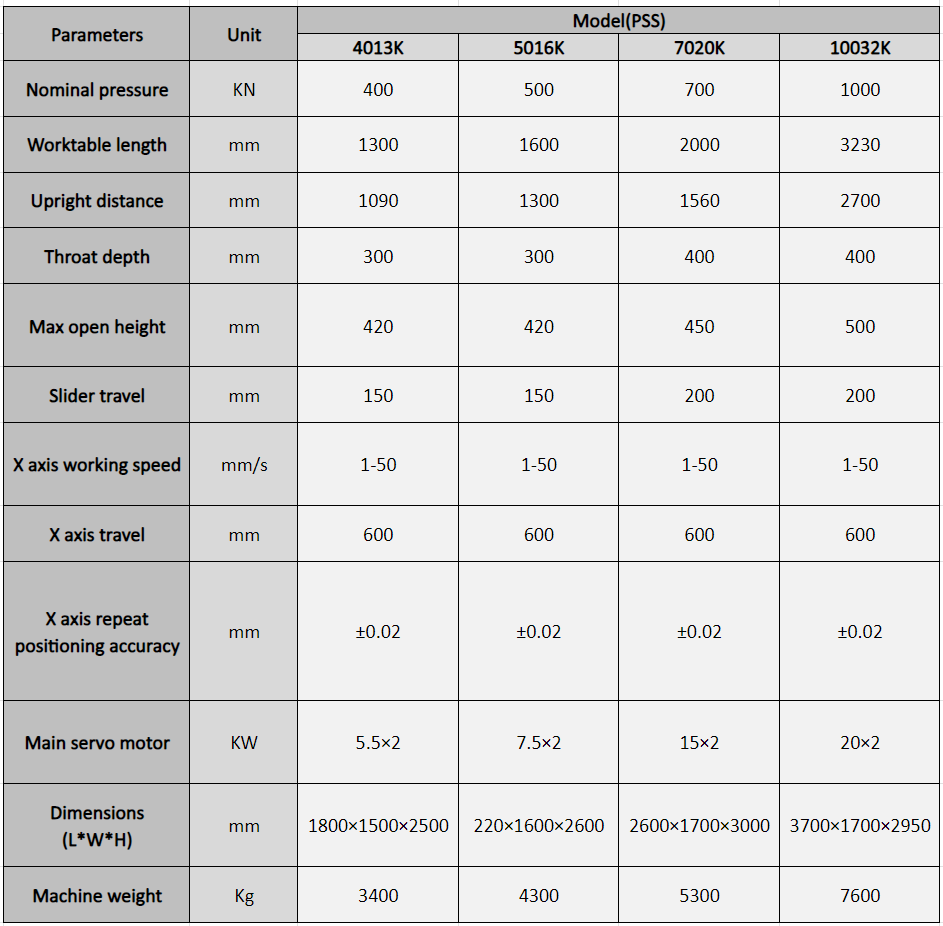

|Data Sheet
Model/Unit
| Bending Force | Bending Length | Polo Distance | Throat Depth | Slide Strokes | Worktable Heght | Max Open Height | Servo Main Motor | Backgauge Travel | Speed | Dimension L*W*H |
Kn | Mm | Mm | Mm | Mm | Mm | Mm | Kw | Mm | mm/s | Mm |
63T2500 | 630 | 2500 | 2100 | 350 | 150 | 780 | 420 | 5.5 | 600 | 200 | 3200*1600*2500 |
80T2500 | 800 | 3200 | 2700 | 350 | 150 | 780 | 420 | 7.5 | 600 | 200 | 3500*1600*2500 |
110T3200 | 1100 | 3200 | 2700 | 500 | 200 | 780 | 480 | 11 | 600 | 200 | 3500*1700*2700 |
110T4000 | 1100 | 4000 | 3500 | 500 | 200 | 780 | 480 | 11 | 600 | 200 | 4300*1700*2700 |
130T3200 | 1300 | 3200 | 2700 | 500 | 200 | 780 | 480 | 11 | 600 | 200 | 3500*1700*2700 |
130T4000 | 1300 | 4000 | 3500 | 500 | 200 | 780 | 480 | 11 | 600 | 200 | 4300*1700*2700 |
170T3200 | 1700 | 3200 | 2700 | 450 | 200 | 850 | 480 | 15 | 600 | 200 | 3700*1800*2800 |
170T4000 | 1700 | 4000 | 3500 | 400 | 200 | 840 | 480 | 15 | 600 | 200 | 4500*2200*3600 |
220T3200 | 2200 | 3200 | 2700 | 360 | 200 | 900 | 480 | 18.5 | 600 | 200 | 3700*1900*3000 |
220T4000 | 2200 | 4000 | 3500 | 400 | 200 | 900 | 480 | 18.5 | 600 | 200 | 4500*1900*3000 |
250T3200 | 2500 | 3200 | 2700 | 360 | 250 | 840 | 480 | 18.5 | 600 | 200 | 3800*1900*3100 |
250T4000 | 2500 | 4000 | 3500 | 400 | 250 | 900 | 550 | 22 | 600 | 200 | 4500*1900*3100 |
320T3200 | 3200 | 3200 | 2700 | 400 | 250 | 950 | 560 | 22 | 600 | 200 | 3800*2000*3200 |
320T4000 | 3200 | 4000 | 3500 | 400 | 250 | 950 | 560 | 22 | 600 | 200 | 4500*2000*3200 |
400T4000 | 4000 | 4000 | 3500 | 400 | 250 | 1000 | 560 | 30 | 600 | 200 | 4300*2200*3600 |
500T5000 | 5000 | 5000 | 3900 | 500 | 250 | 1000 | 600 | 37 | 600 | 200 | 5300*2300*360 |
500T6000 | 5000 | 6000 | 4900 | 500 | 250 | Sink800 | 600 | 37 | 600 | 200 | 6300*2300*3700 |
500T7000 | 5000 | 7000 | 5900 | 500 | 250 | Sink800 | 600 | 37 | 600 | 200 | 7500*2500*3700 |
600T5000 | 6000 | 5000 | 3900 | 500 | 300 | Sink800 | 600 | 45 | 600 | 200 | 5500*2700*3800 |
600T6000 | 6000 | 6000 | 4900 | 500 | 300 | Sink800 | 600 | 45 | 600 | 200 | 6500*2700*3800 |
600T7000 | 6000 | 7000 | 5900 | 500 | 300 | 1000 | 600 | 45 | 600 | 200 | 7500*2800*3900 |
|
Company Profile 1）Anhui Sanxin Heavy Industrial Machinery Manufacturing Co., Ltd is located in Bowang Economic Development Zone, Maanshan city, Anhui Province, China, and was established in 2007. Our company specializes in metalworking machines, including press brakes, shearing machines, rolling machines, CNC grooving machines and laser cutting machines.
2）We have a strong team of professional mechanical engineers and assembly technicians who work together on design and research. We also provide high-quality sales and after-sales services. We are recognized as a modern, well-known brand both domestically and internationally.
|

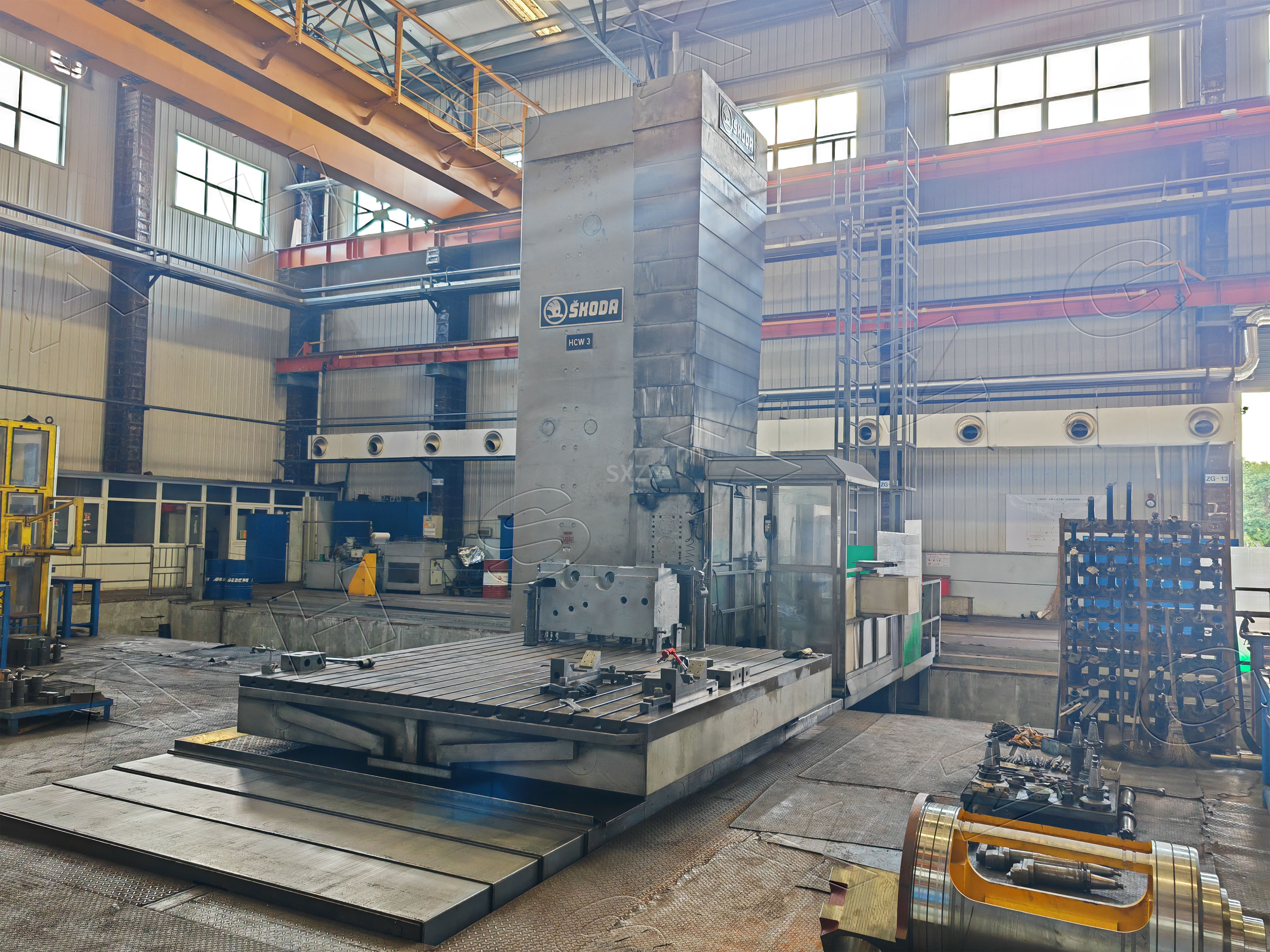

Production Process

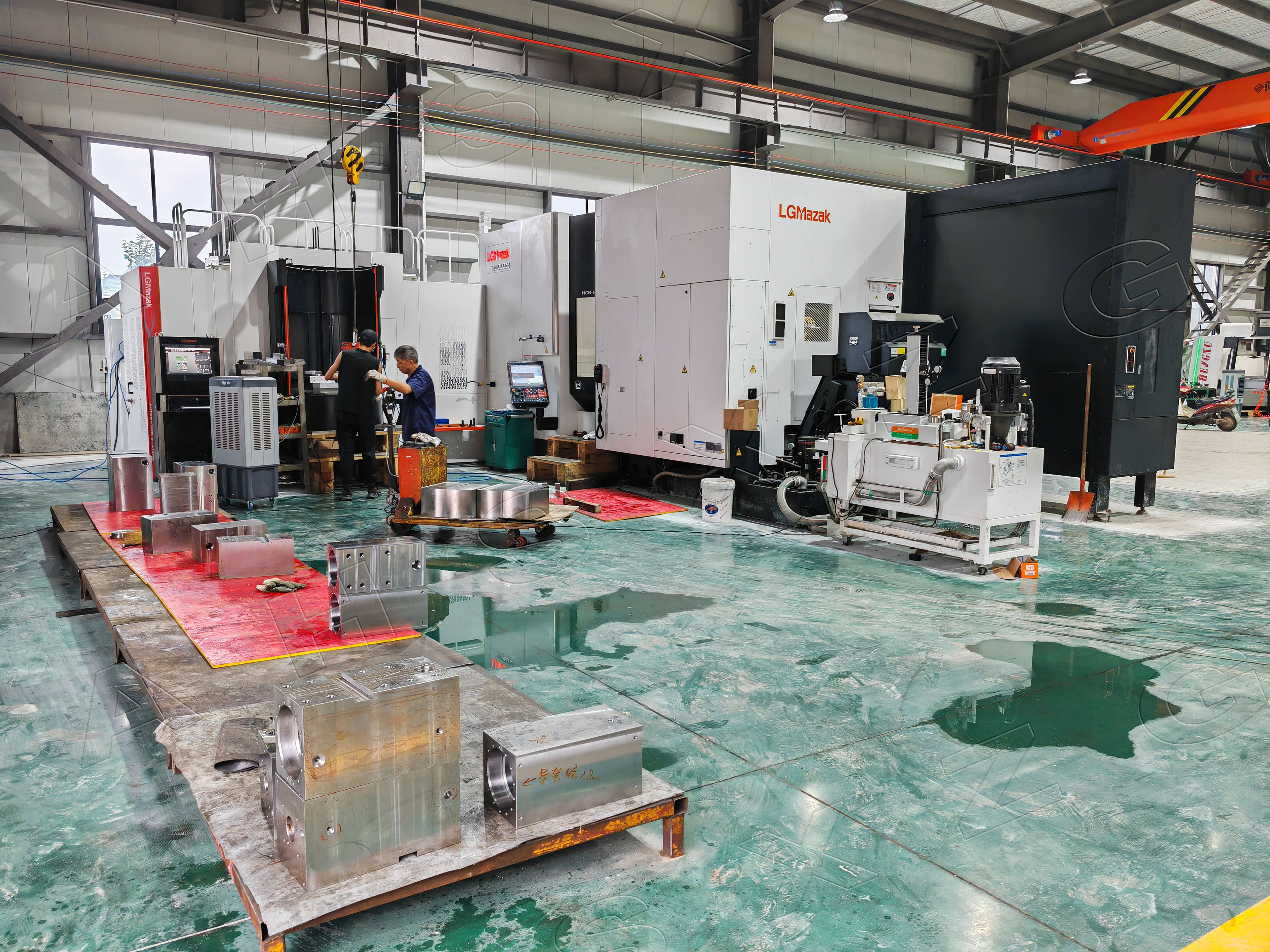

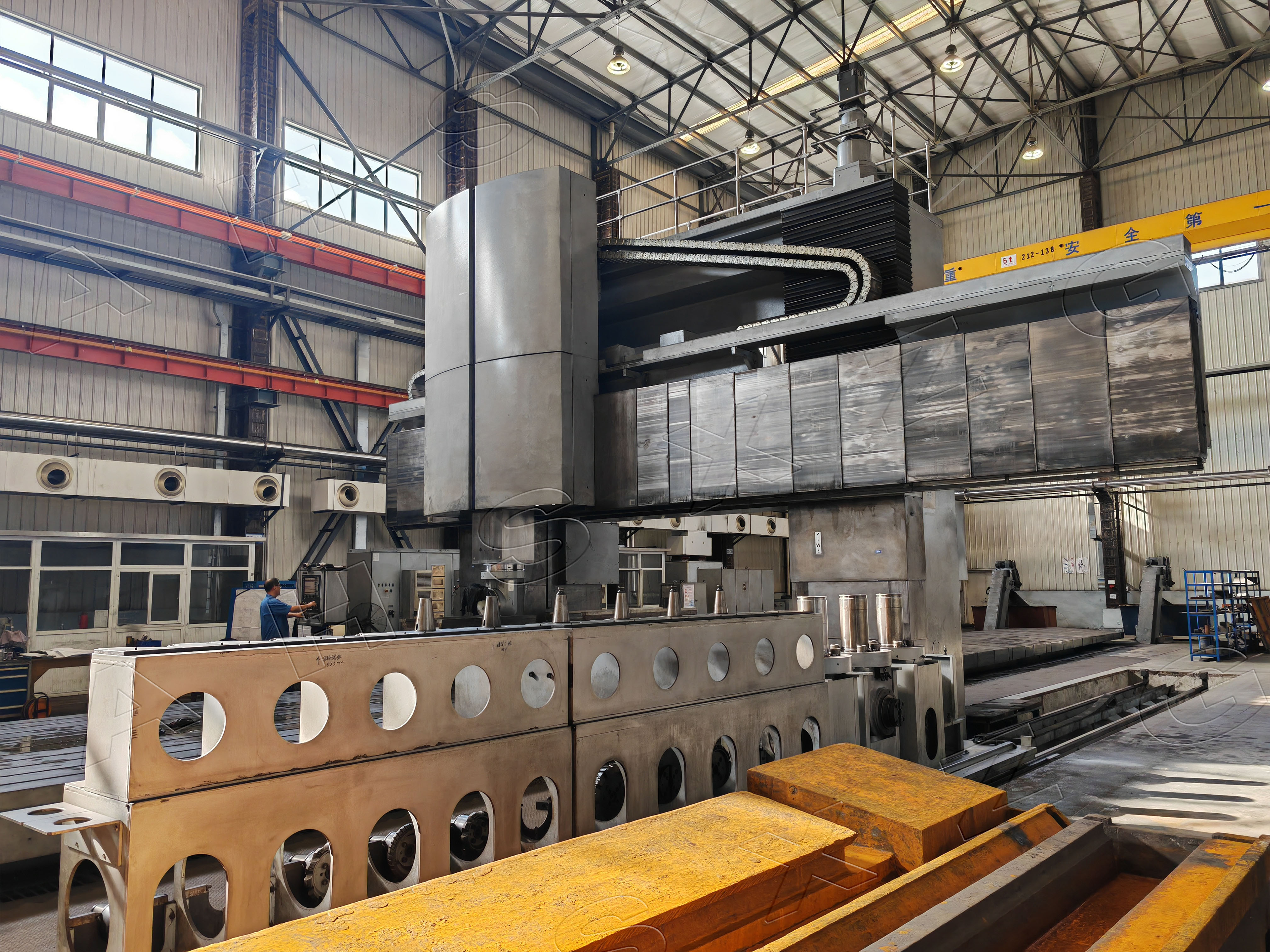

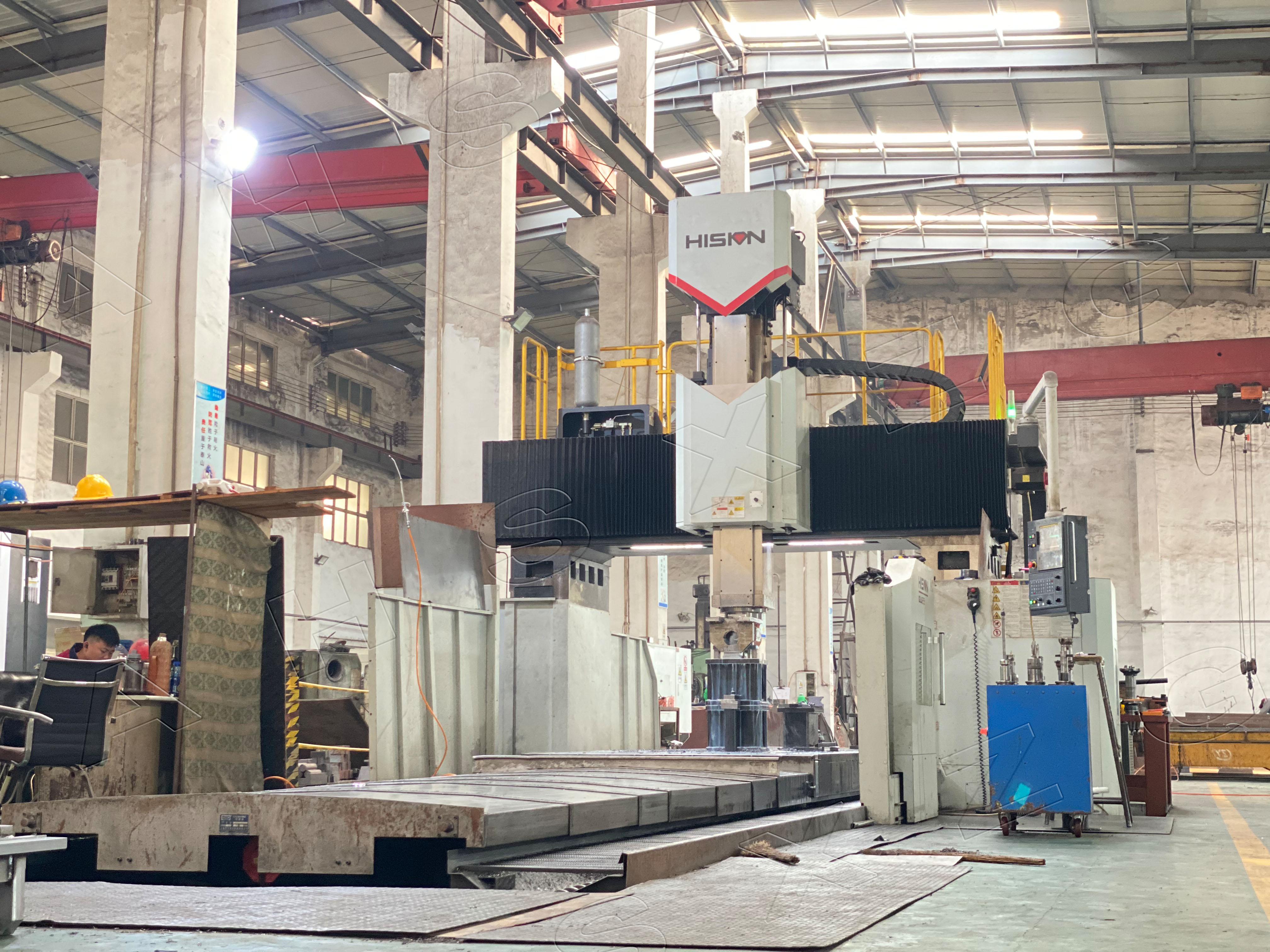

Floor type Gantry machining center
