PSN160T3200 with TP10S Ready Ship to Brazil

Sanxin PSN series 160T3200mm with TP10S controller 2+1 axis and light curtain protection

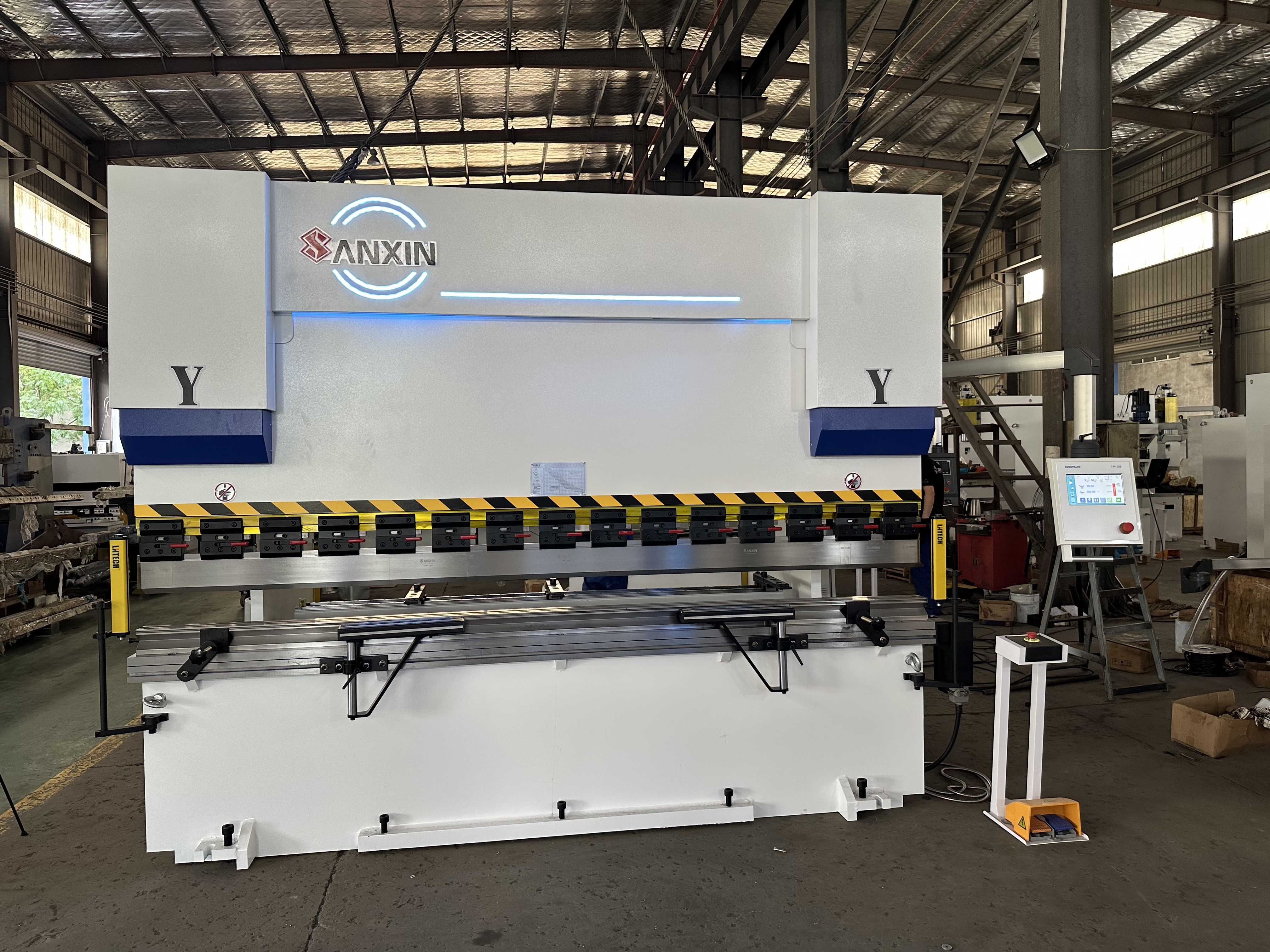

This tremendous PSN 160T3200 is ready to ship to Brazil.  We can quickly go through the machine and to see what's the configuration looks like.

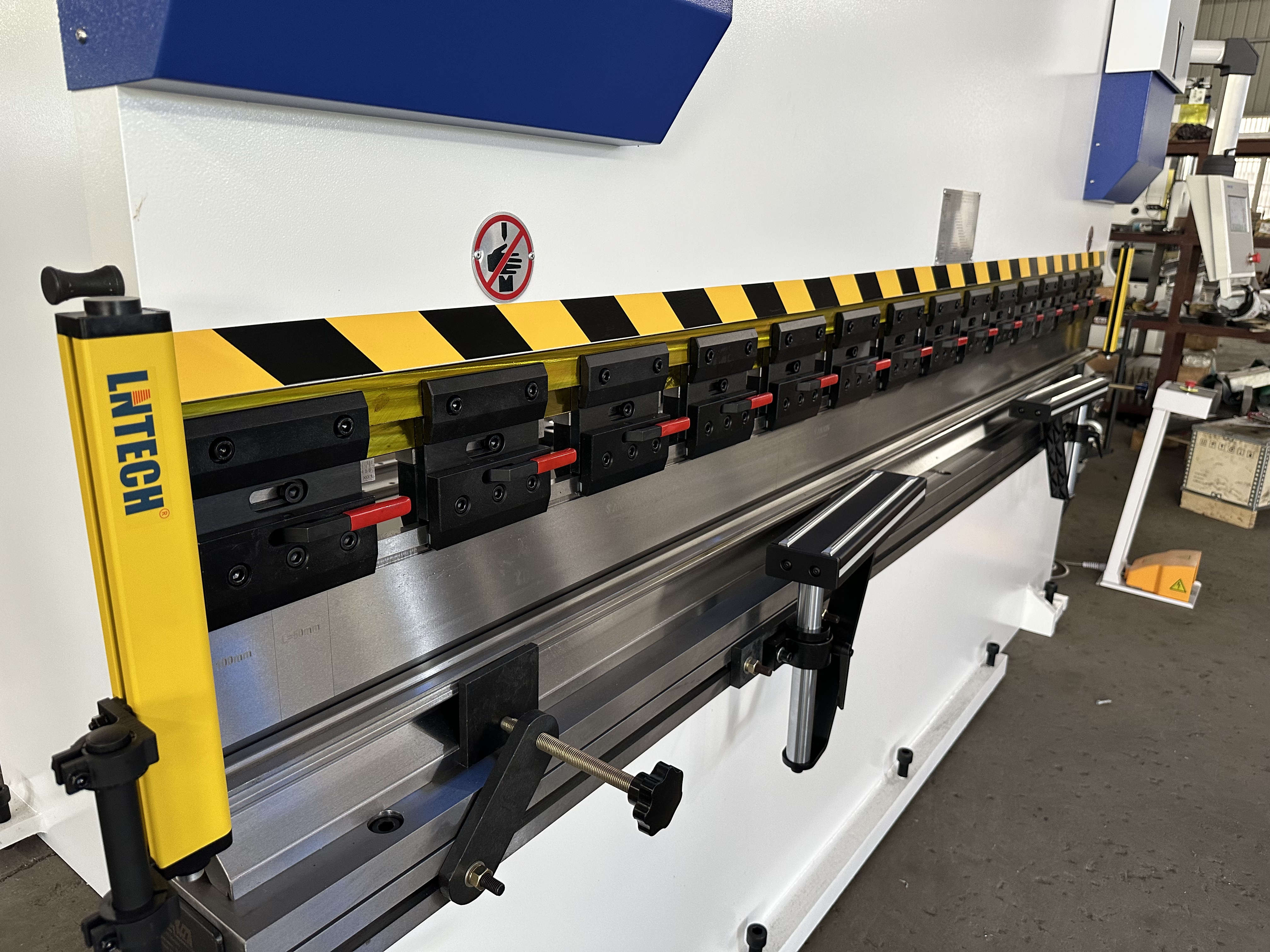

This PSN press brake has light curtain protection for the front and back working area in order to eliminate any possible accidents coming. This PSN series also equips the compensation device (crowning system) to ensure the bending parts nice and straight. Especially for machines have over 3 meters worktable length, this crowning system will improve your efficiency and productivity after long-term use. Meanwhile, the standard fast clamp design helps workers to quickly change tools for different bending parts.

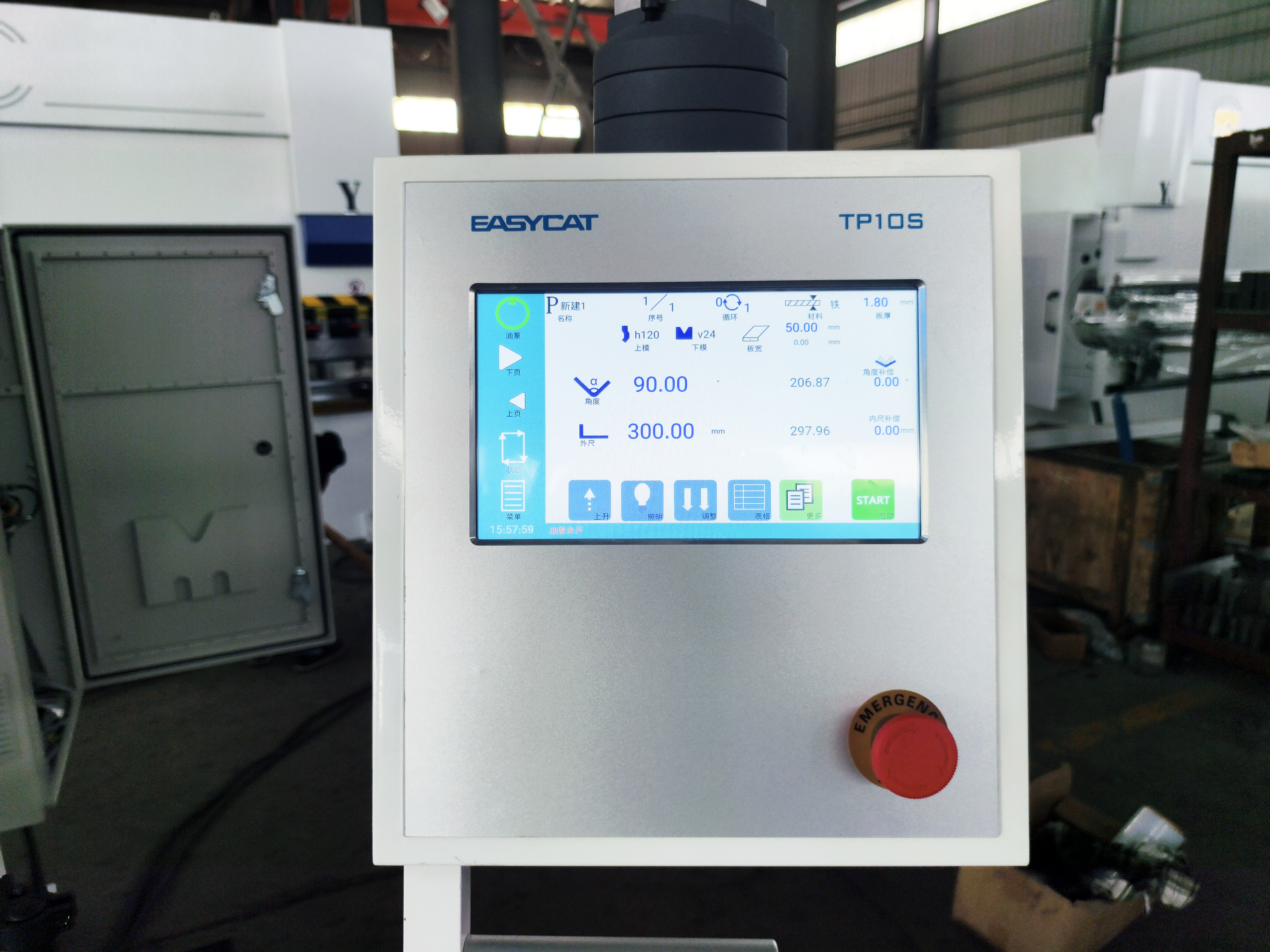

TP10S system powered by EASYCAT

TP10S features:

-10 inch color touch screen

-The standard X,Y axis servo motor

-Angle programming, system automatic caculate depth

-Slider(Y axis) position control

-Position control of rear stopper(X axis)

-220 programs, 24 steps per program

-Soft limit function, power off memory

-Option Y1 Y2 R Axis

-Option degree of compensation(W axis)

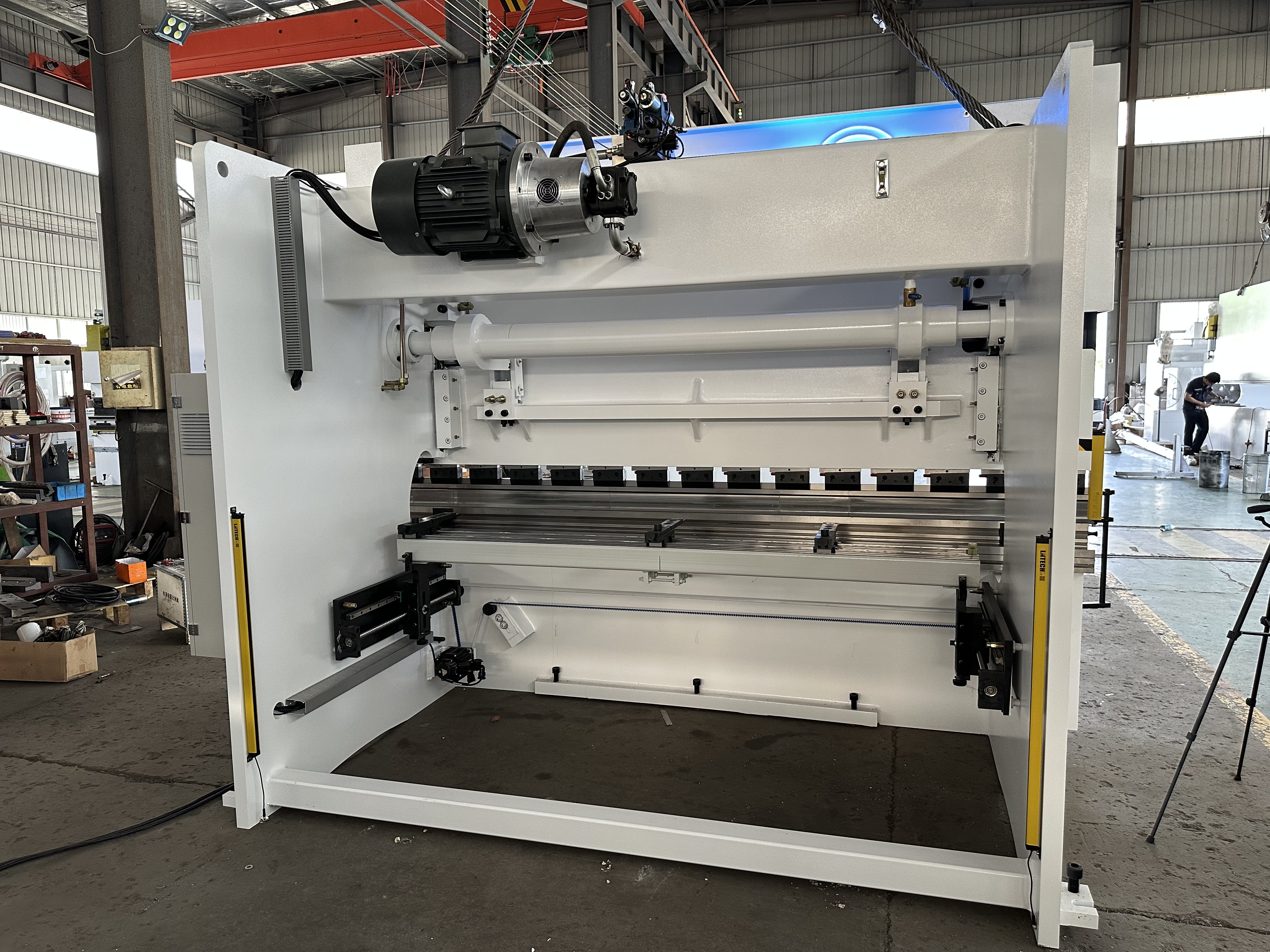

The standard torsion bar structure and X- axis design provide high accuracy and stable bending.  Rear light curtain protection also remain the safety for workers.

The frame and structures of the machine are made by Sanxin ourselves to ensure the long-term use. We use reinforced structures on frames and special tempering process on sliders in order to maintain the stability and accuracy after 5 or 10 years of use.

This PSN series press brake are welcomed by our customers all over the world, please contact us for more information.
