|Application Video

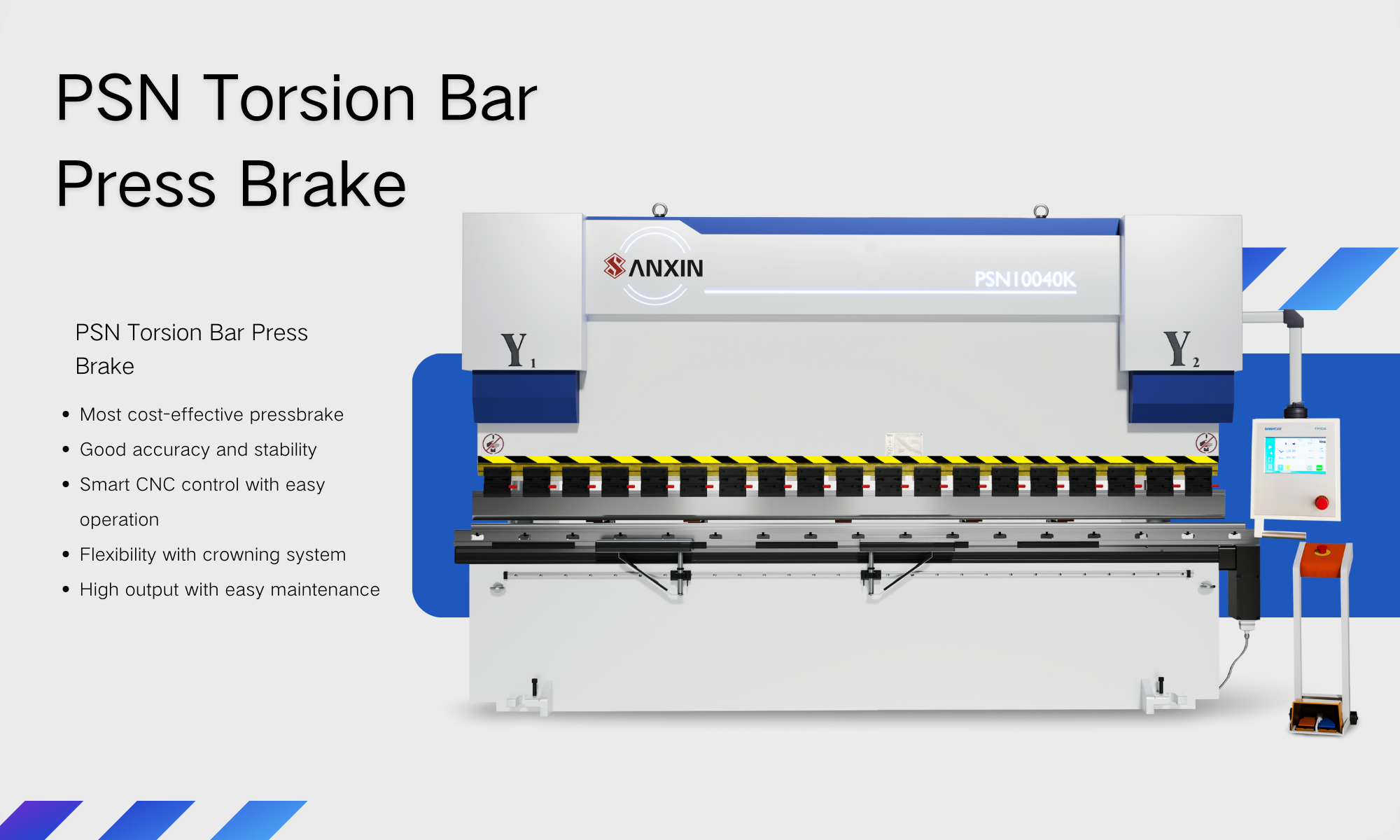

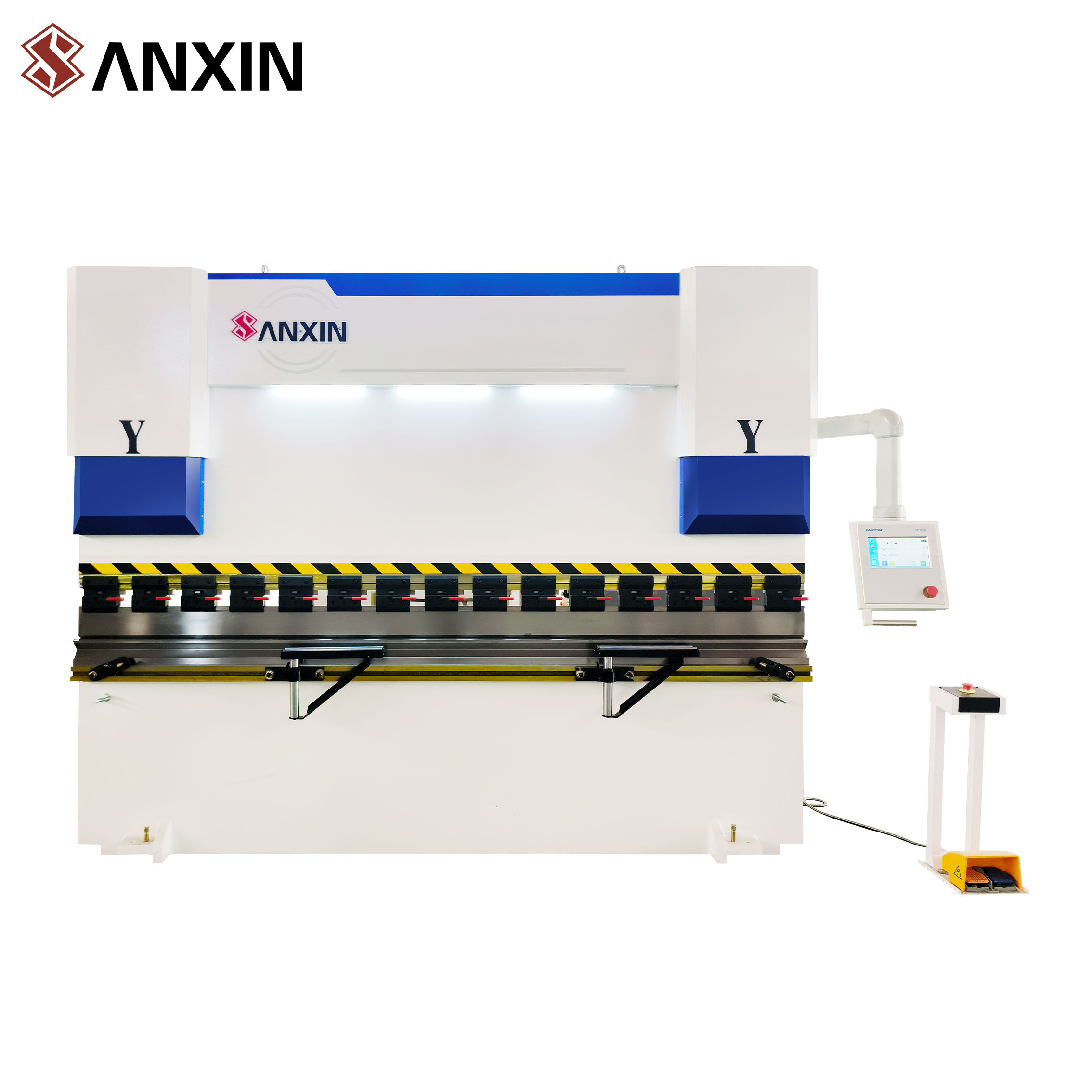

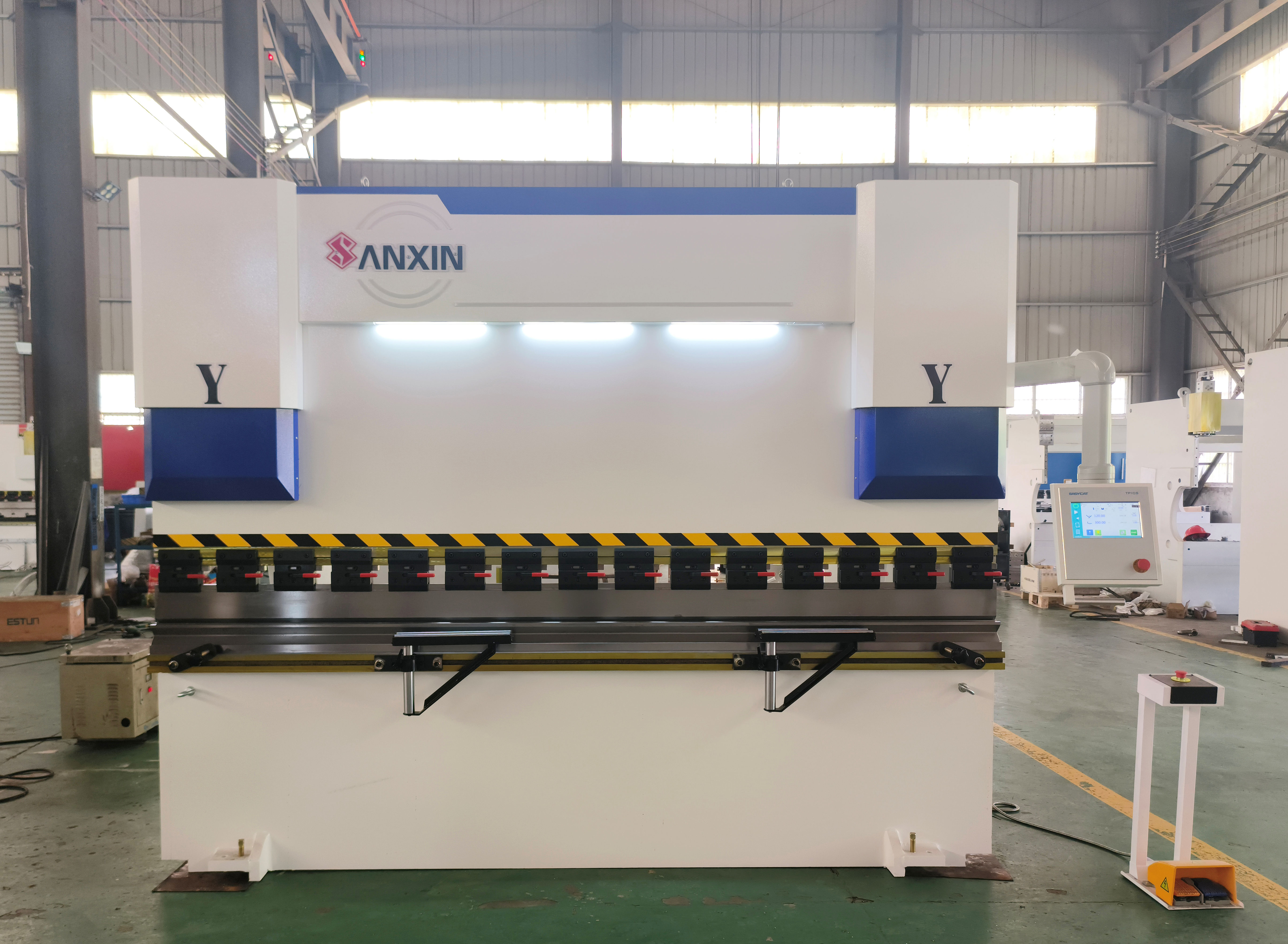

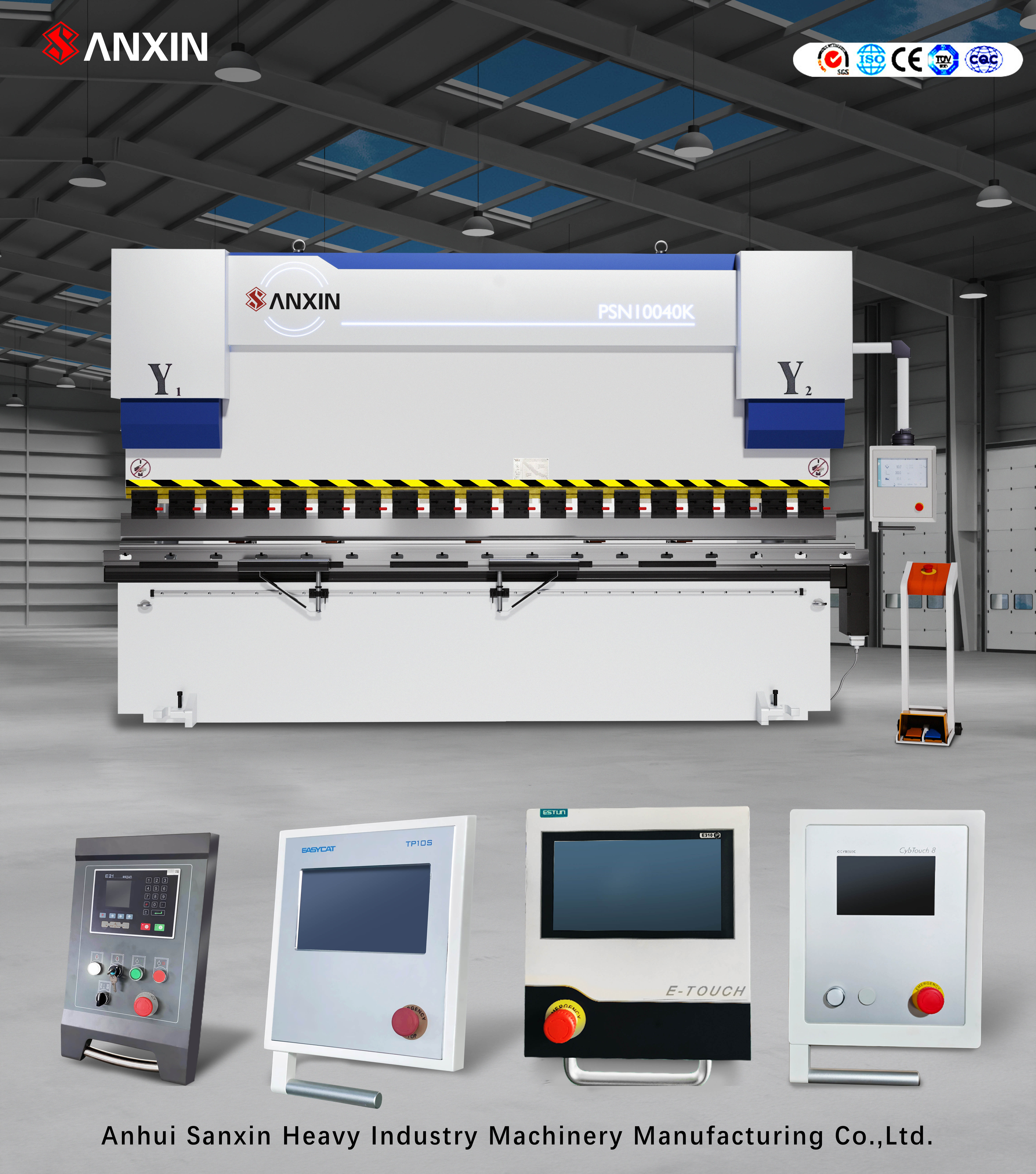

Sanxin PSN 10040K Press Brake with TP10S system

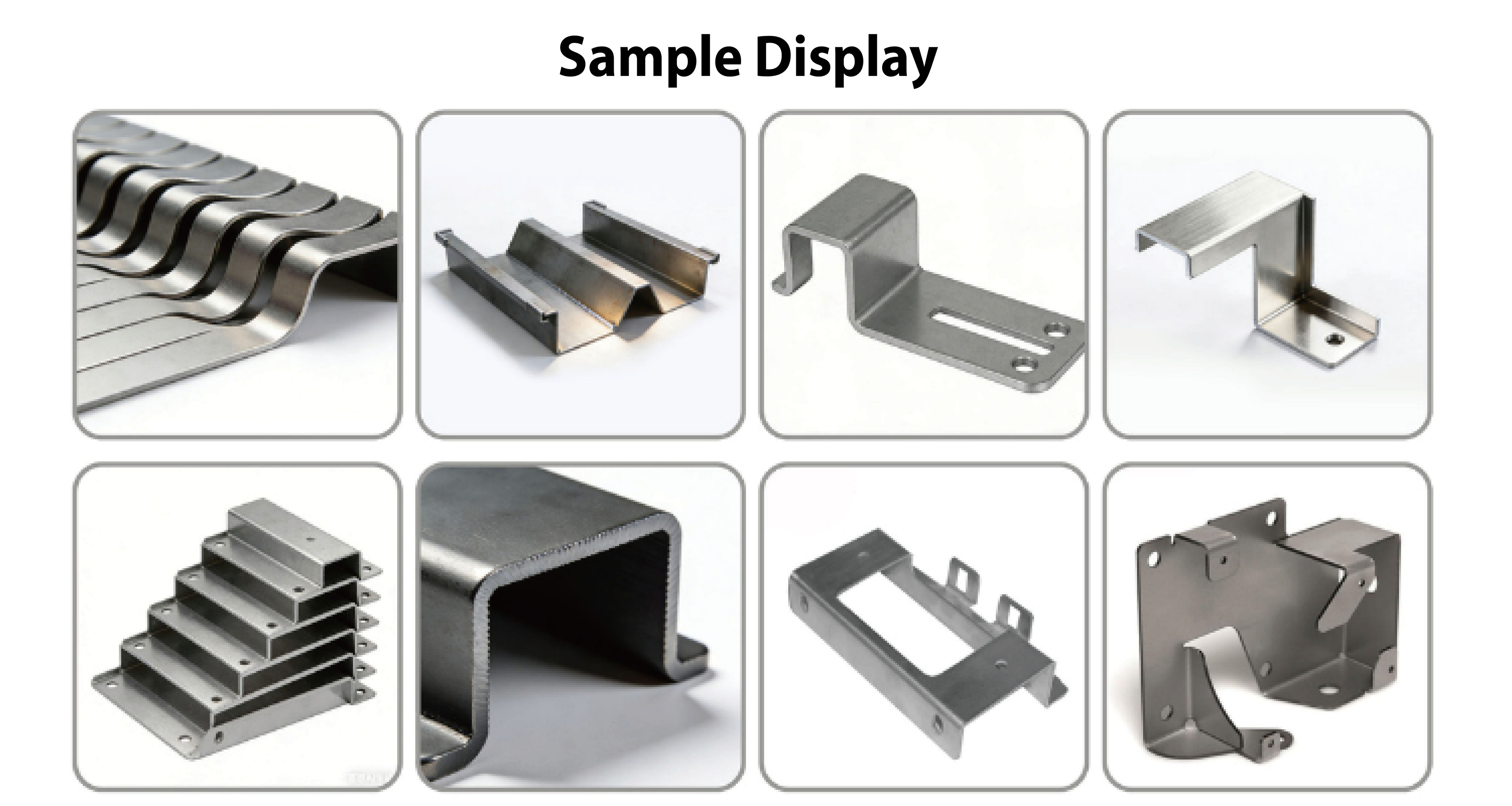

1）SANXIN PSN Torsion Bar NC Press brake machine is a general equipment for bending various metal sheets, while equip with different bending toolings, it can be folding into different workpieces. SANXIN hydraulic press brake TP10S are widely used in shipbuilding, automobiles, vehicles, mining machinery, petroleum, electric power and other industries.
2）SANXIN NC hydraulic press brake is mainly driven by 2 hydraulic cylinder to drive the slider to move the mold up and down. The machine has an integral structure and the frame is welded, which is easy to manufacture and install. The whole machine has good rigidity and high strength.
|Standards For Manufacture And Inspection
• JB/T 2257.1-92 "Technical Requirements for Sheet Metal Bending Machines"
• JB/T 2257.2-1999 ''Sheet Metal Bending Machine Type and Basic Parameters''
• JB/T 50115-1998 ''Sheet Metal Bending Machine Reliability Assessment Method''
• GB/T 14349-2011 ''Sheet Metal Bending Machine - Precision''
|Detailed Images

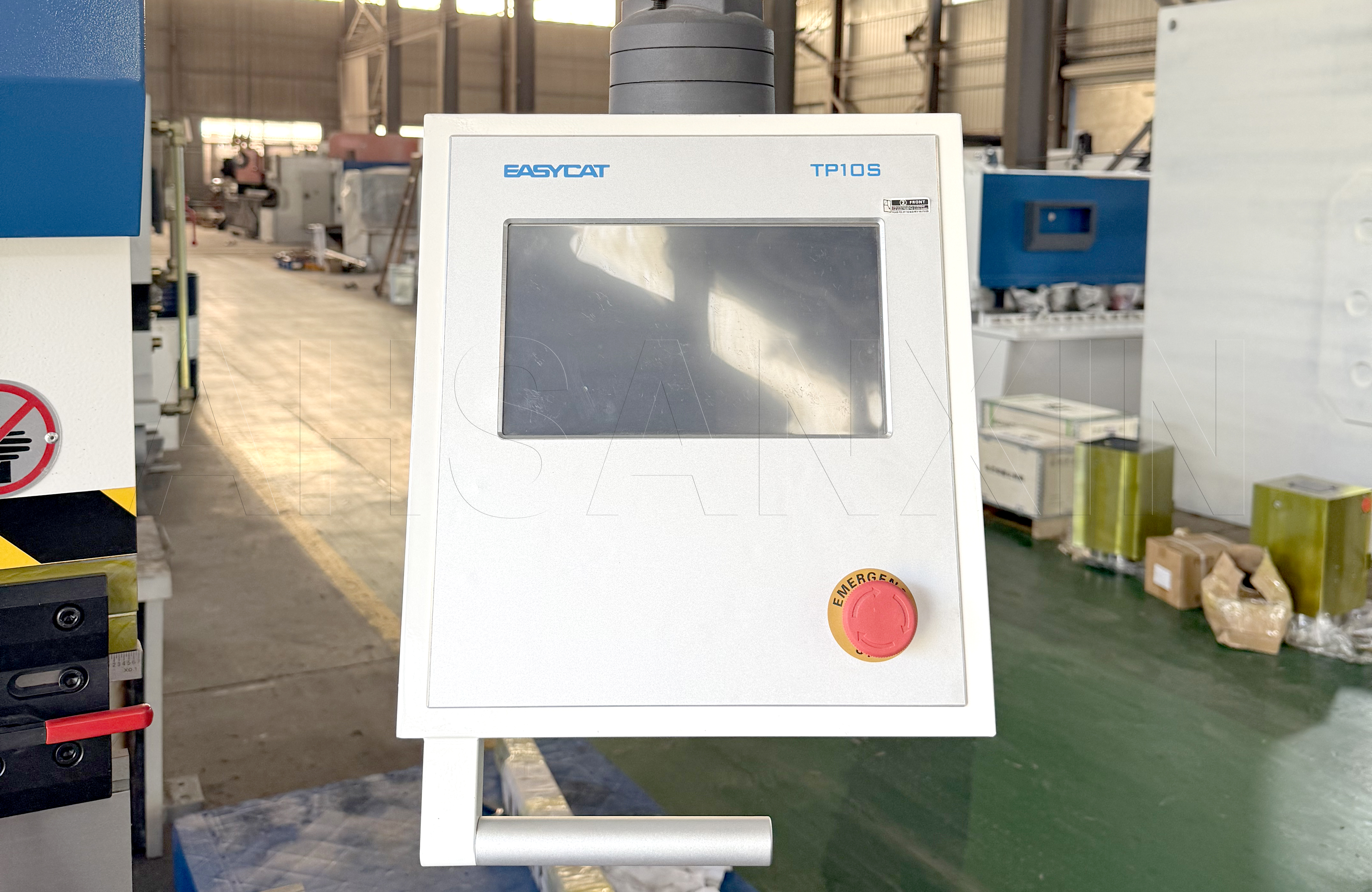

TP10S Controller Features
• 4 Axis are supported-X, Y, R and C • Y axis block position automatic calculation
• Backguage controlled by servo motor
• Optional Mechanical Crowning Table
• EN/Spanish/RU/PL/PT/FR/DE/SP/TR/KO/JP/FA
• Stock up to 100 programs, 25 steps per program
• Support USB expansion

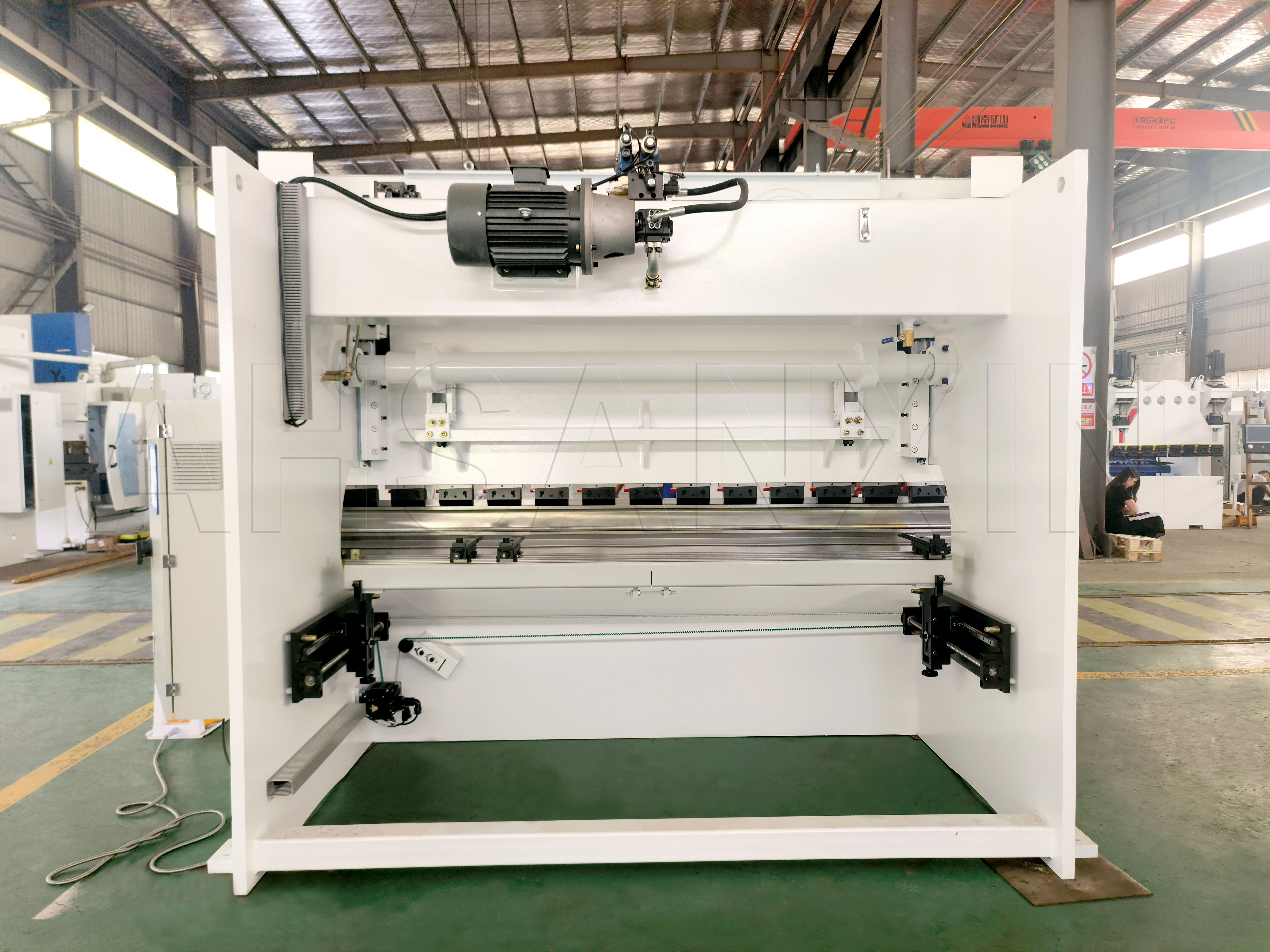

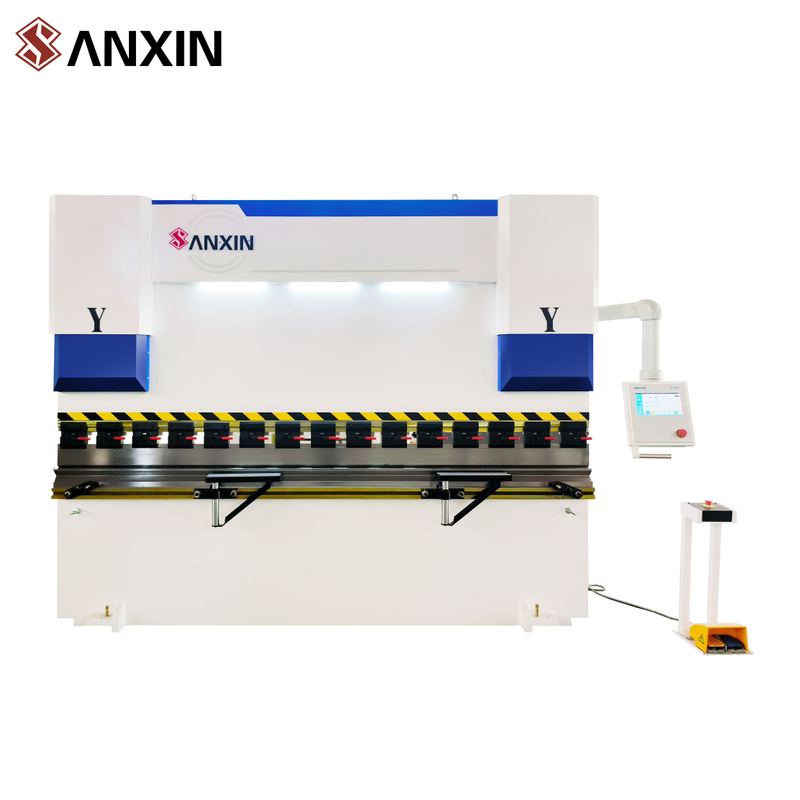

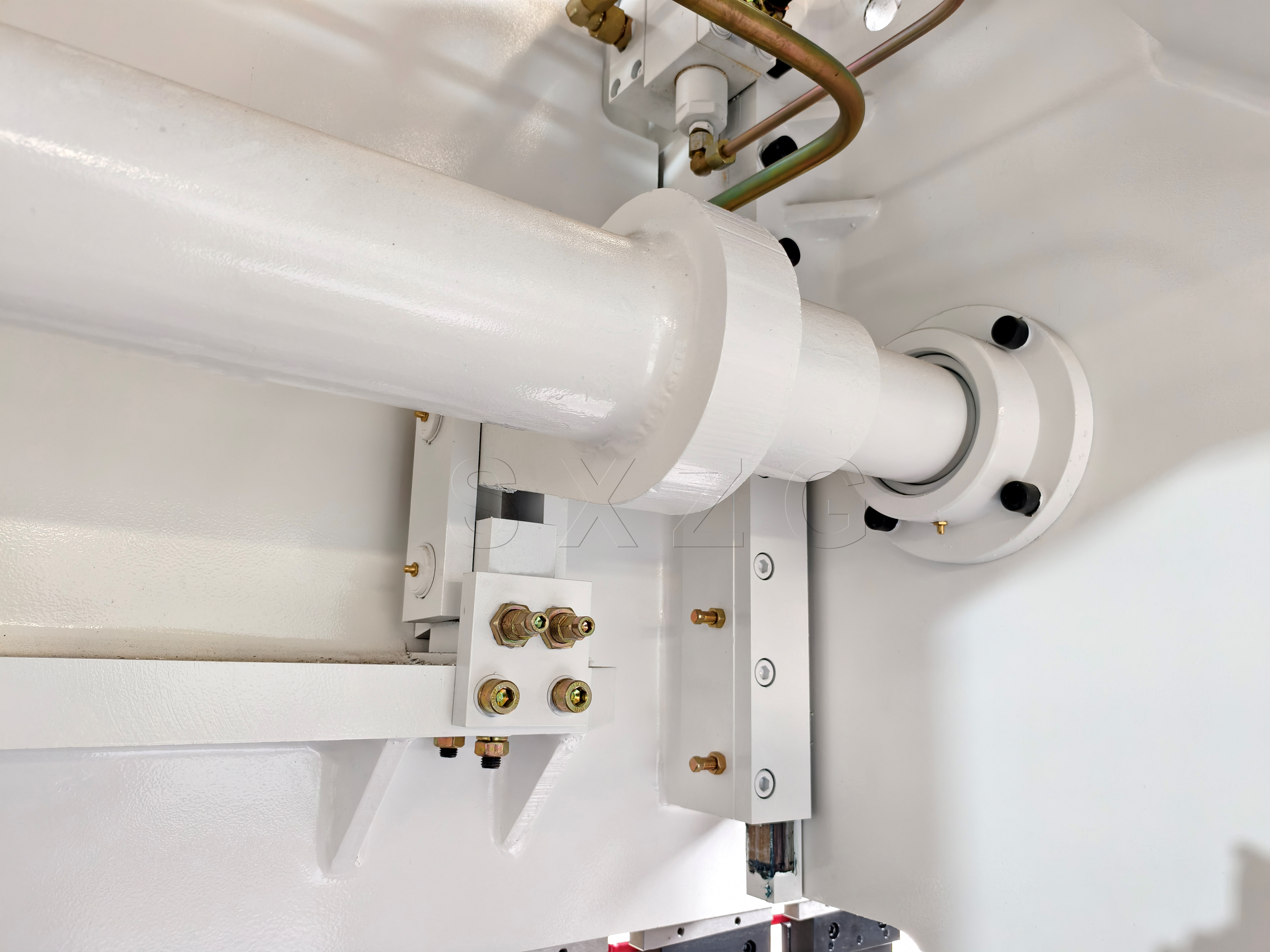

Sanxin® Torsion Bar CNC Press Brake
EUROPEAN DESIGN STYLE
EURO series one step beyond robustness, Engergy-efficient, reliability, precision and performance make Euro an election model.
Read More
3+1 axis for TP10 CNC hydraulic press brake
Y X R and V Crowning table
Read More

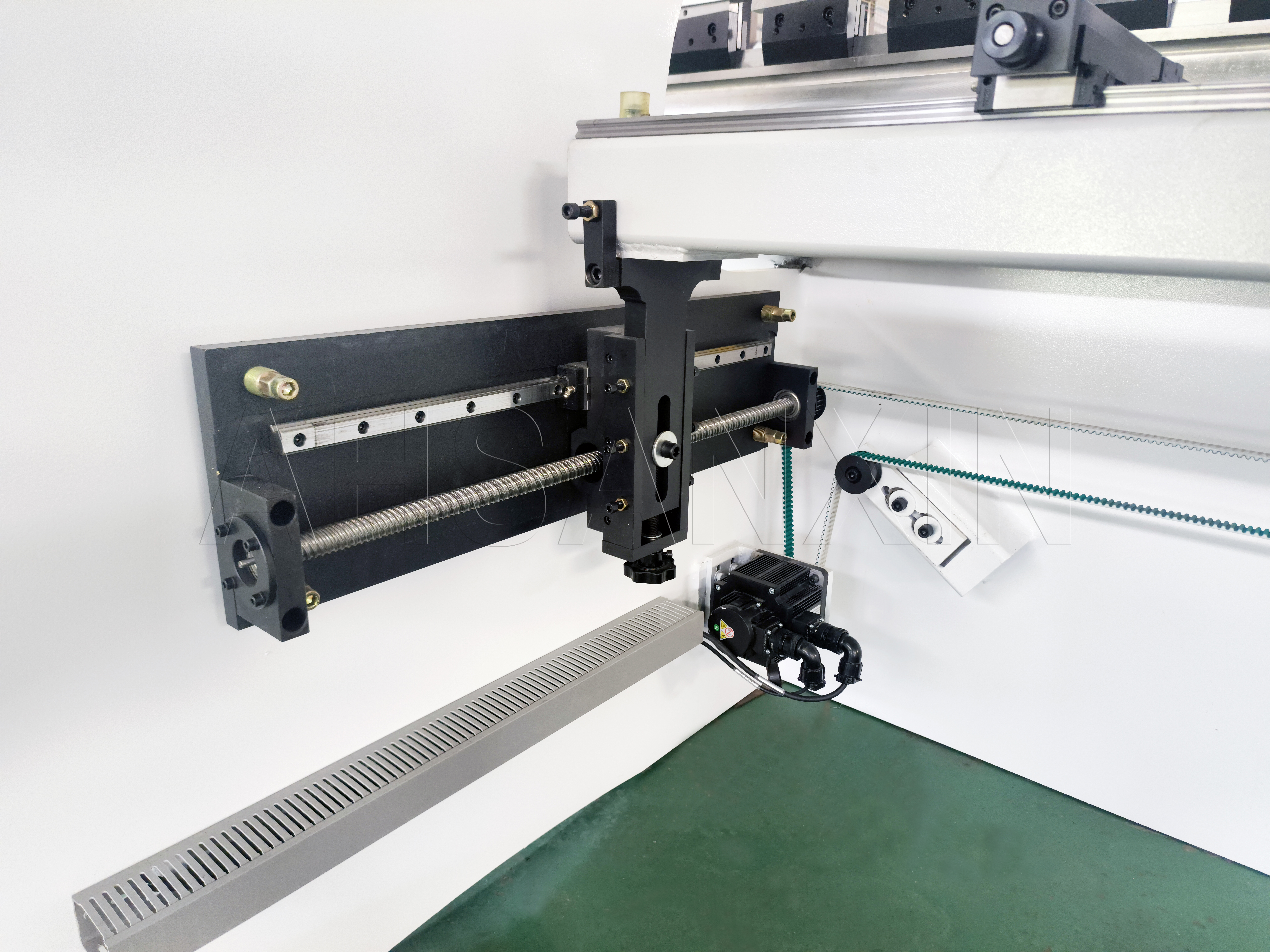

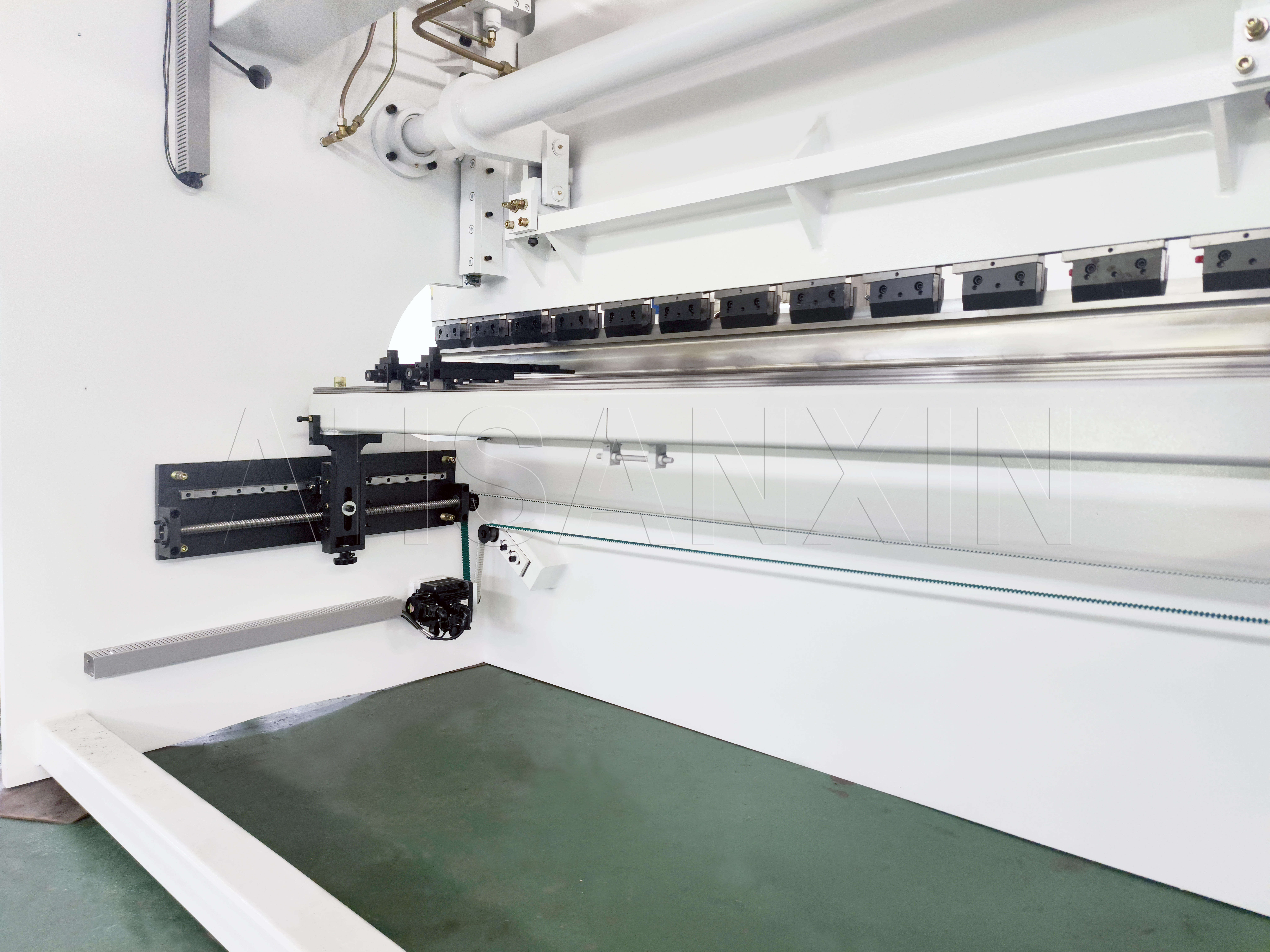

Backgauge up and down
Optional Servo motor drive R Axis-Backgauge up and down
Read More
Ball Screw And Linear Guide
HAWKINGS, TAIWAN in bending machine press brake
Read More

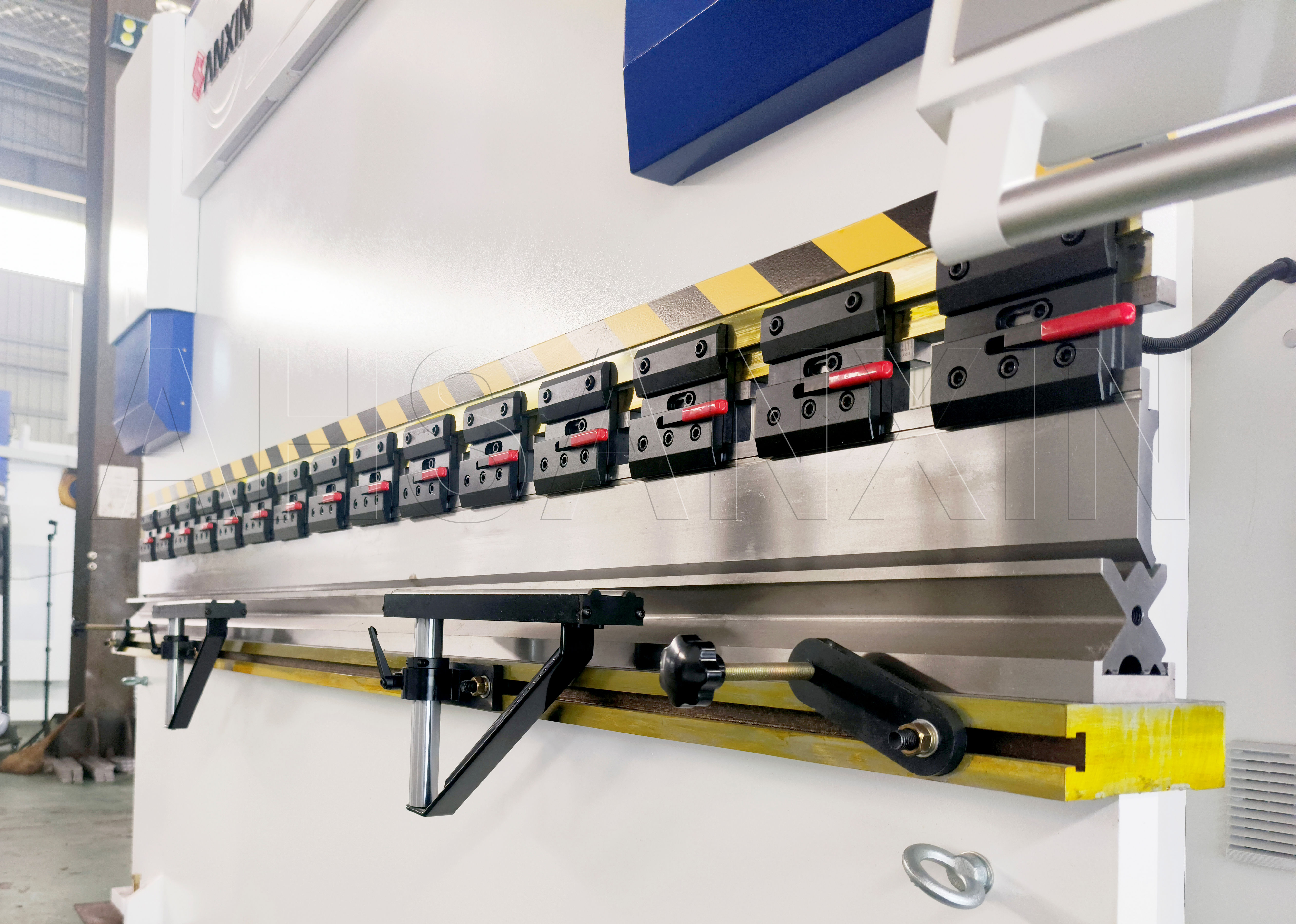

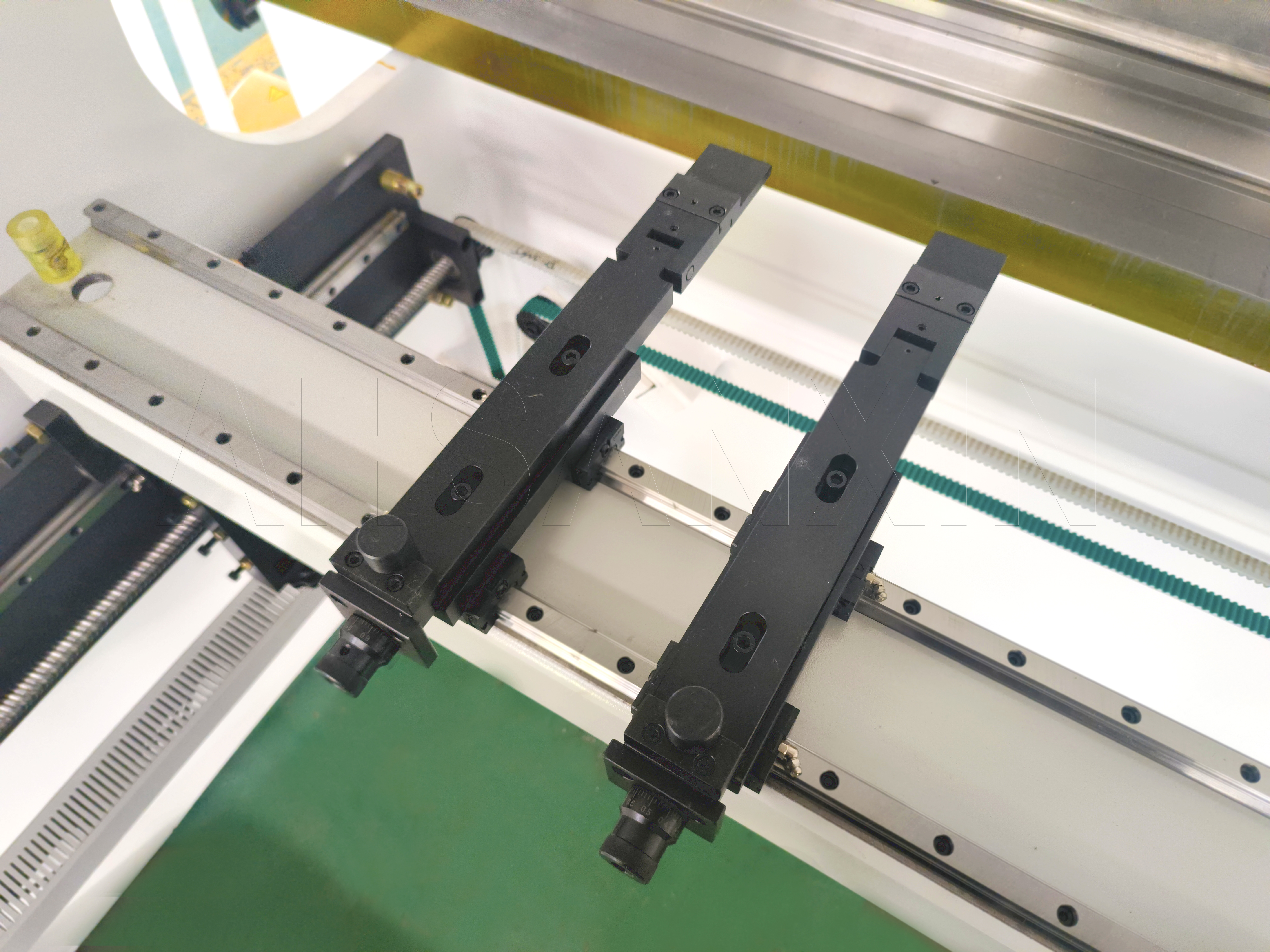

Stop Finger
Stop finger with liner guide, Easy to move
Read More
Mechanical Table Crowning
Optional mechanical crowning, improving the precision of bending angle and linearity
Read More

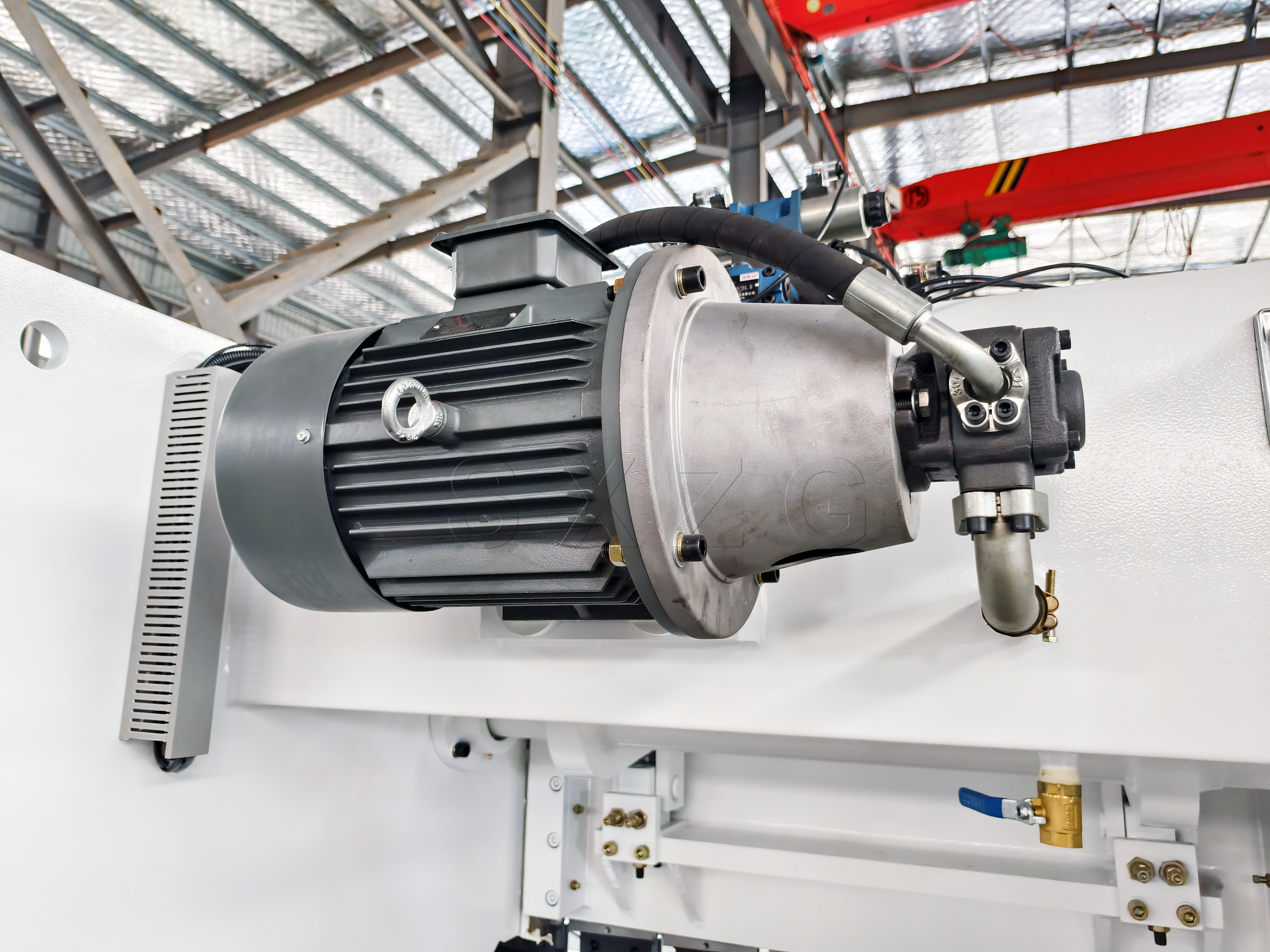

Germany Siemens Motor
Siemens motors guarantee the machine service life and improve the machine working stability
Read More

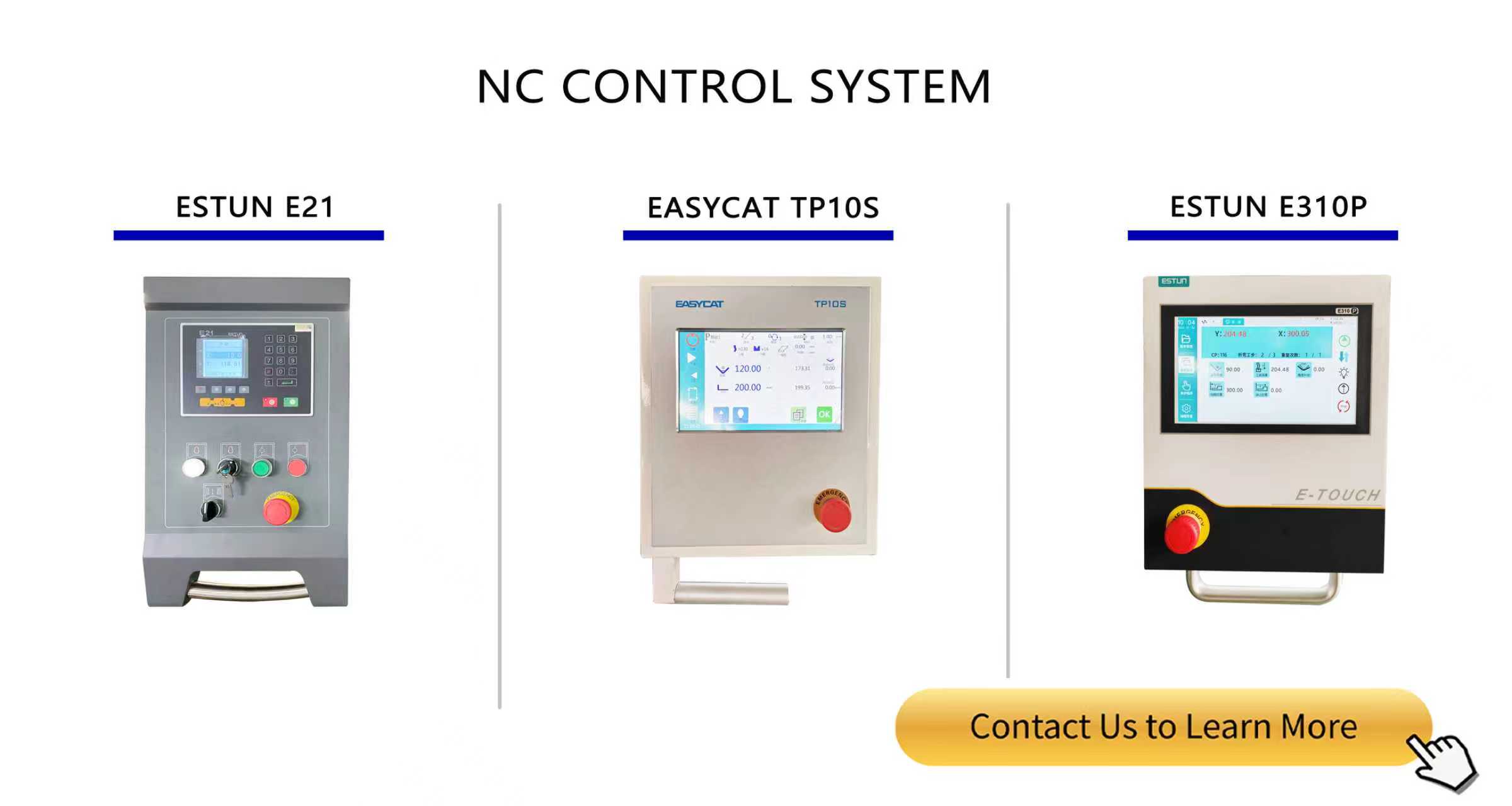

TP10 CNC CONTROLLER
Optional E310P, E21, CT8, DA41, DA42
Read More
|Optional Surface

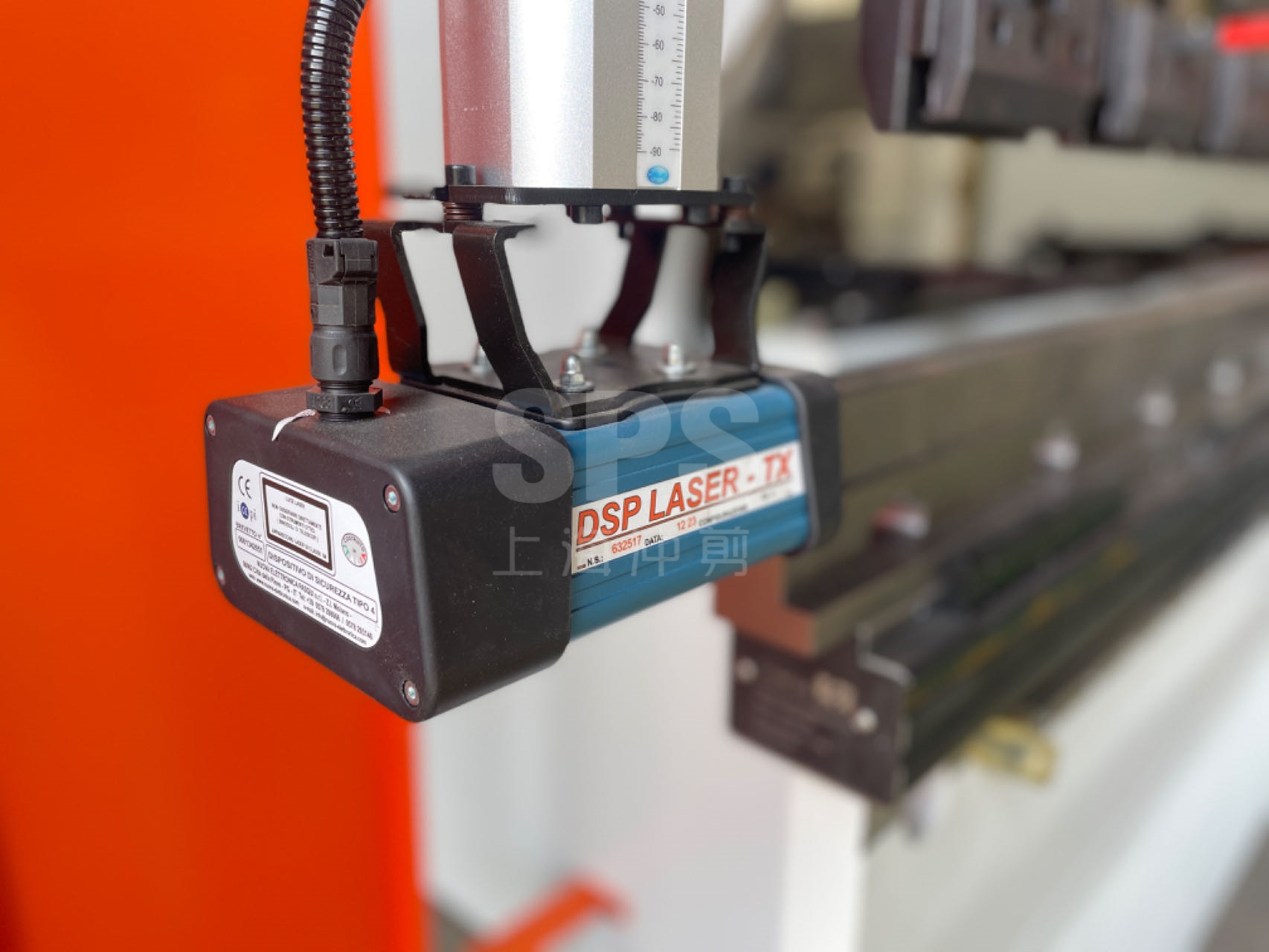

Laser Protection

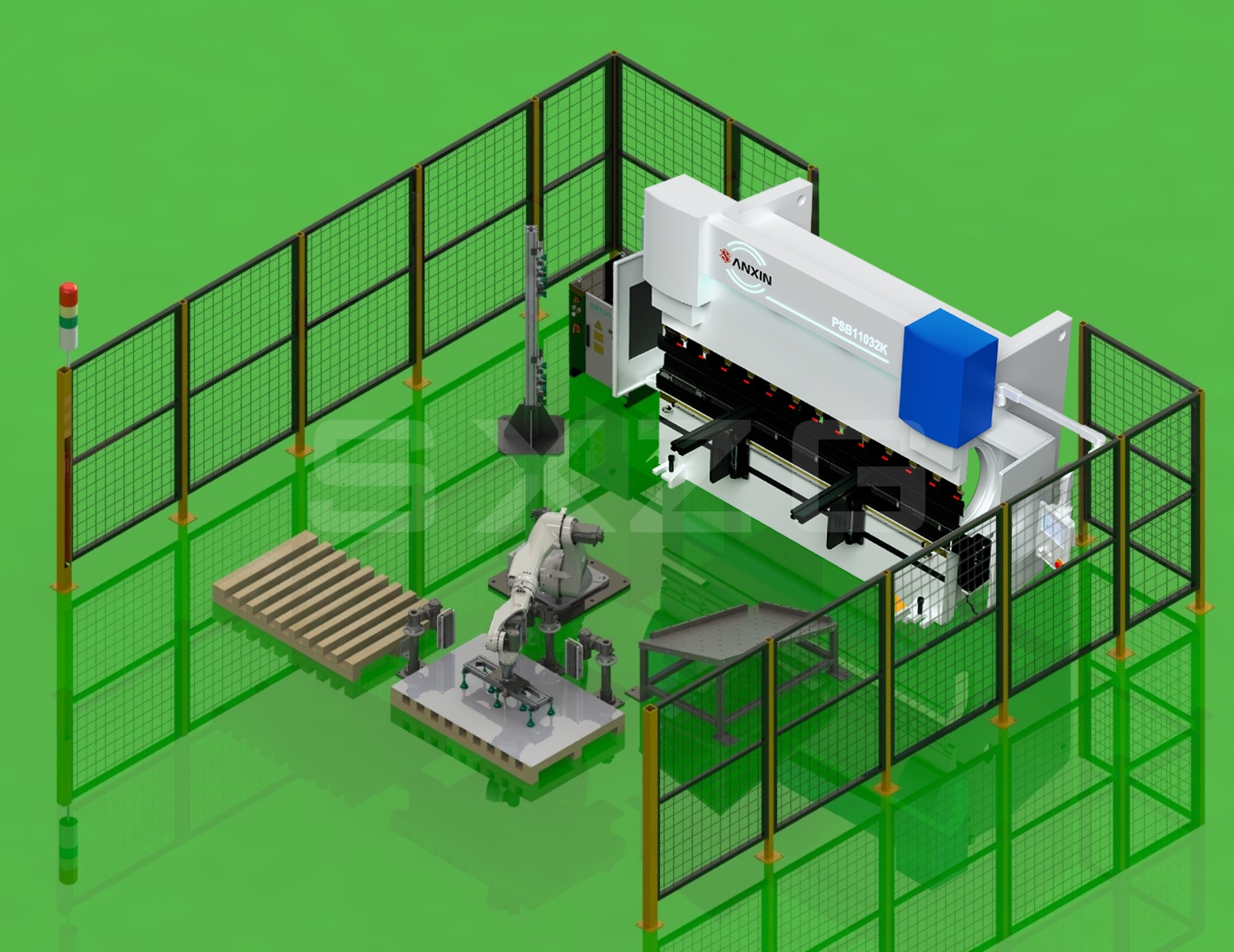

Robotic Arm system

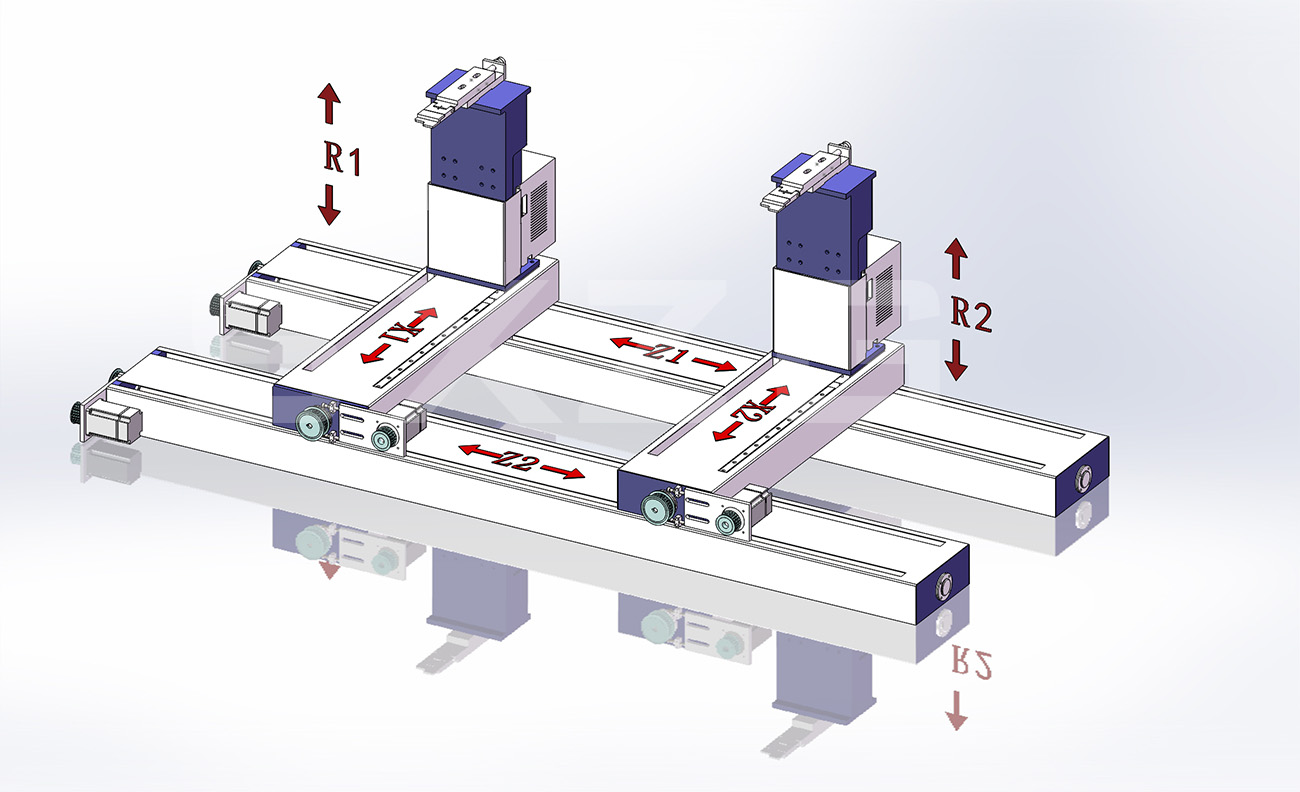

Multiple Back-gauge design

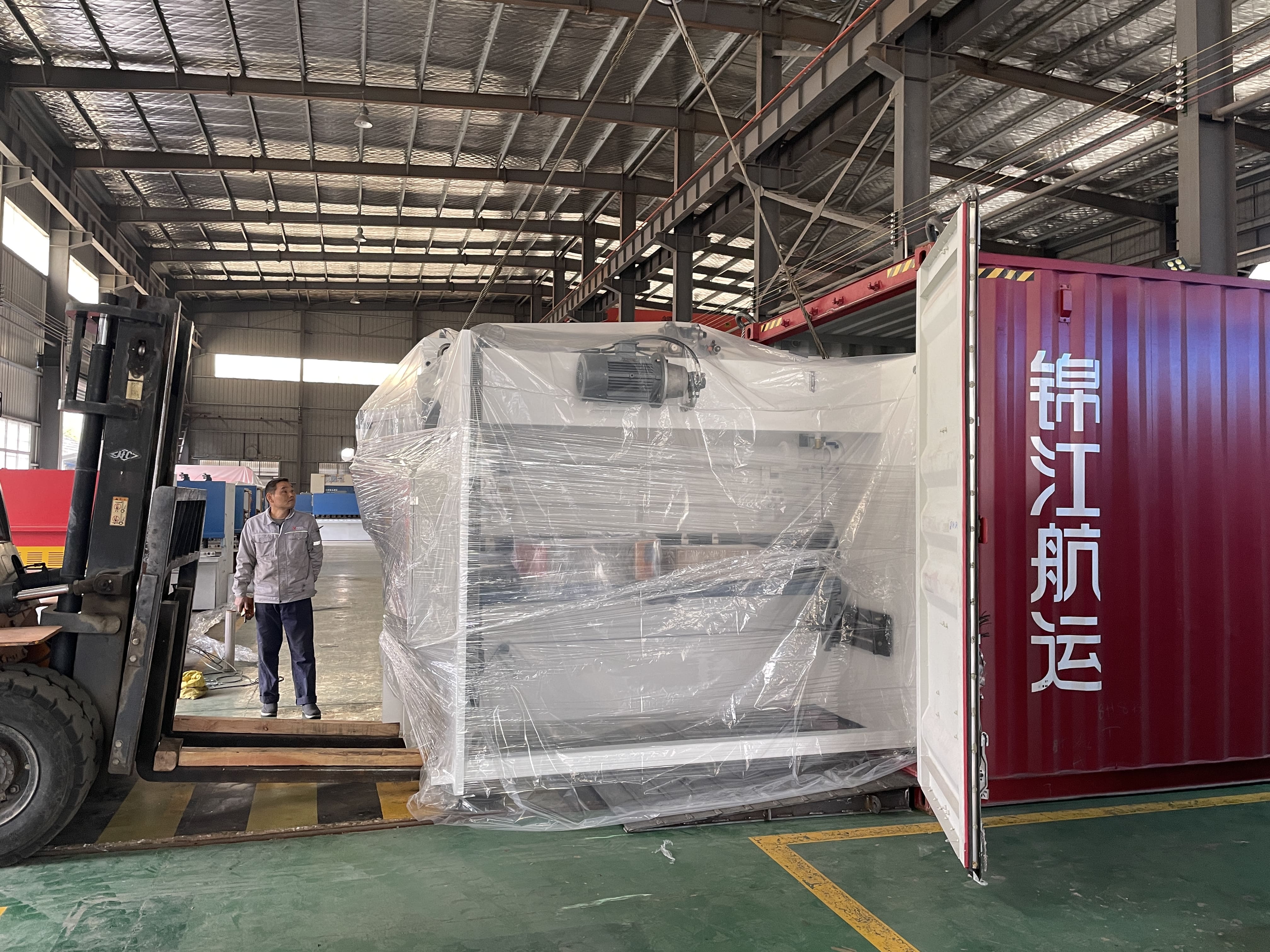

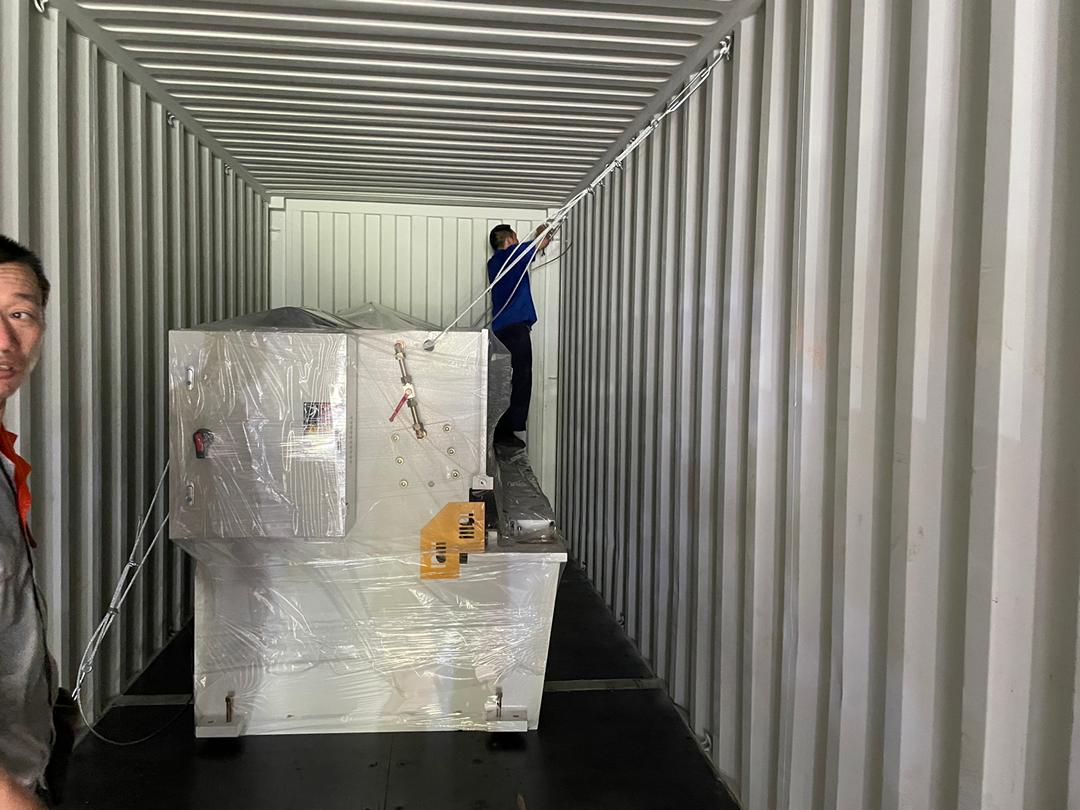

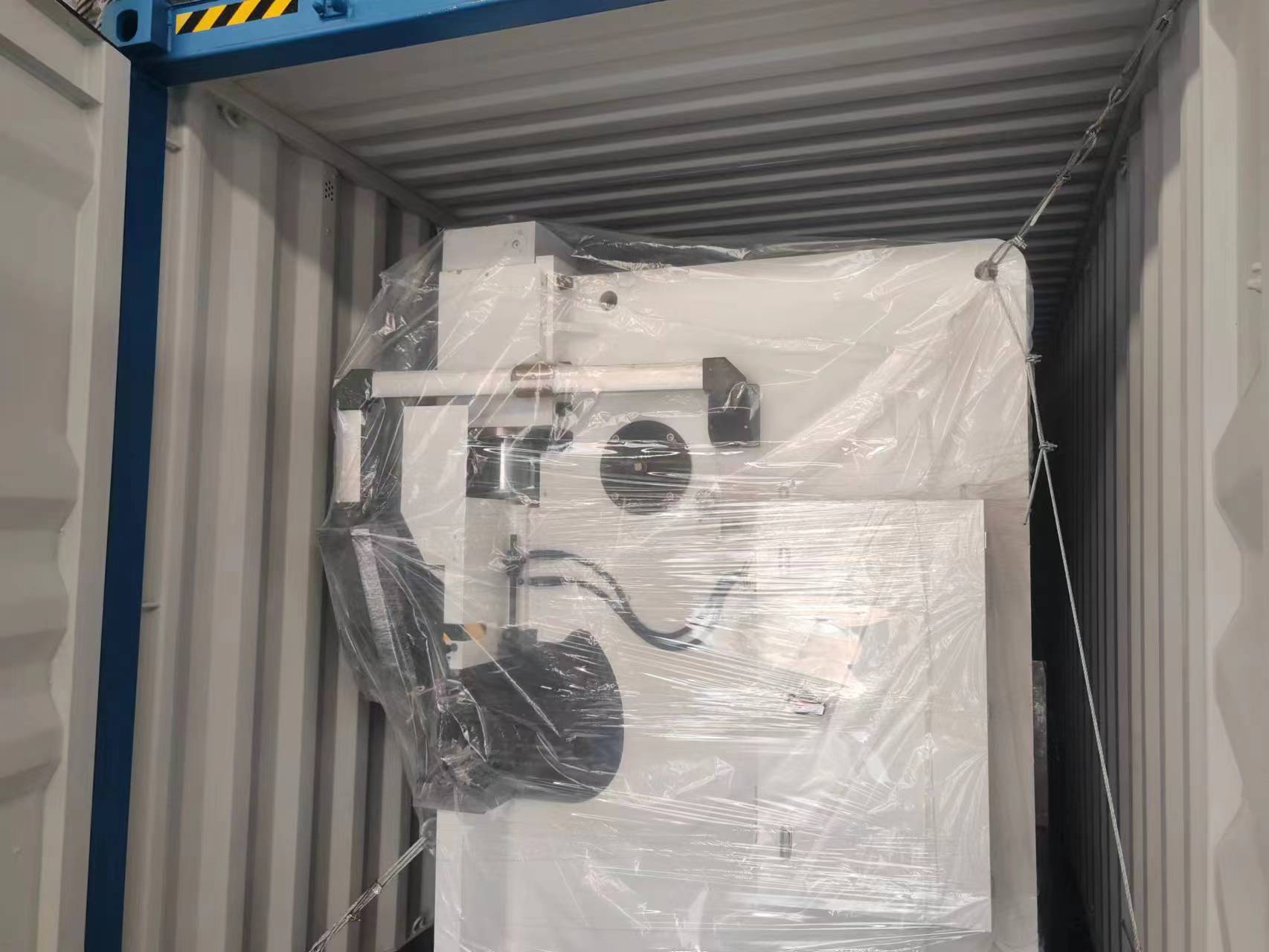

|Product Packaging

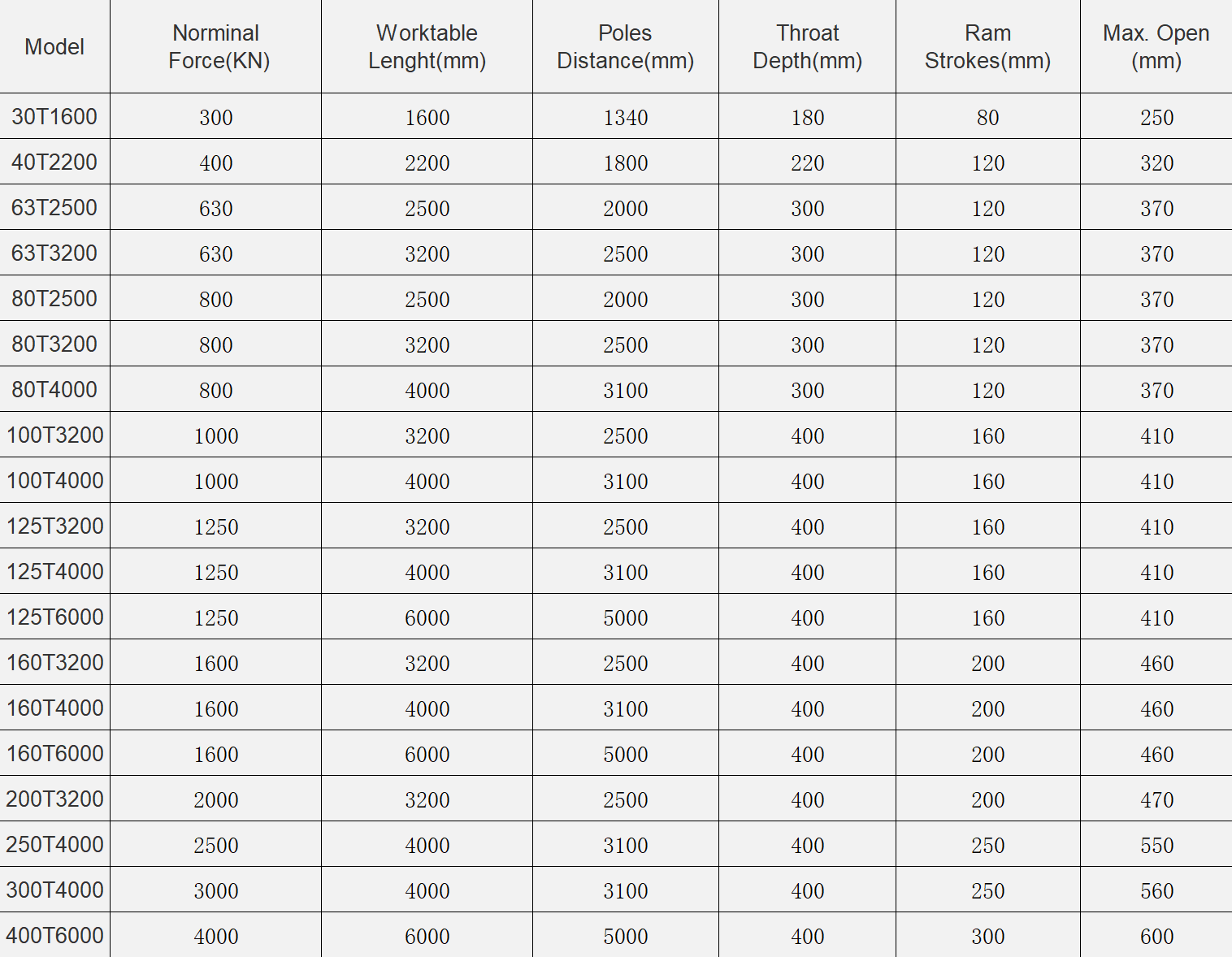

|Data Sheet
|
Company Profile
1）Anhui Sanxin Heavy Industrial Manufacturing Co., Ltd is located in Bowang Economic Development Zone, Maanshan city, Anhui Province, China, and was established in 2007. Our company specializes in metalworking machines, including press brakes, shearing machines, rolling machines, CNC grooving machines and laser cutting machines.
2）We have a strong team of professional mechanical engineers and assembly technicians who work together on design and research. We also provide high-quality sales and after-sales services. We are recognized as a modern, well-known brand both domestically and internationally.
|
Production Process

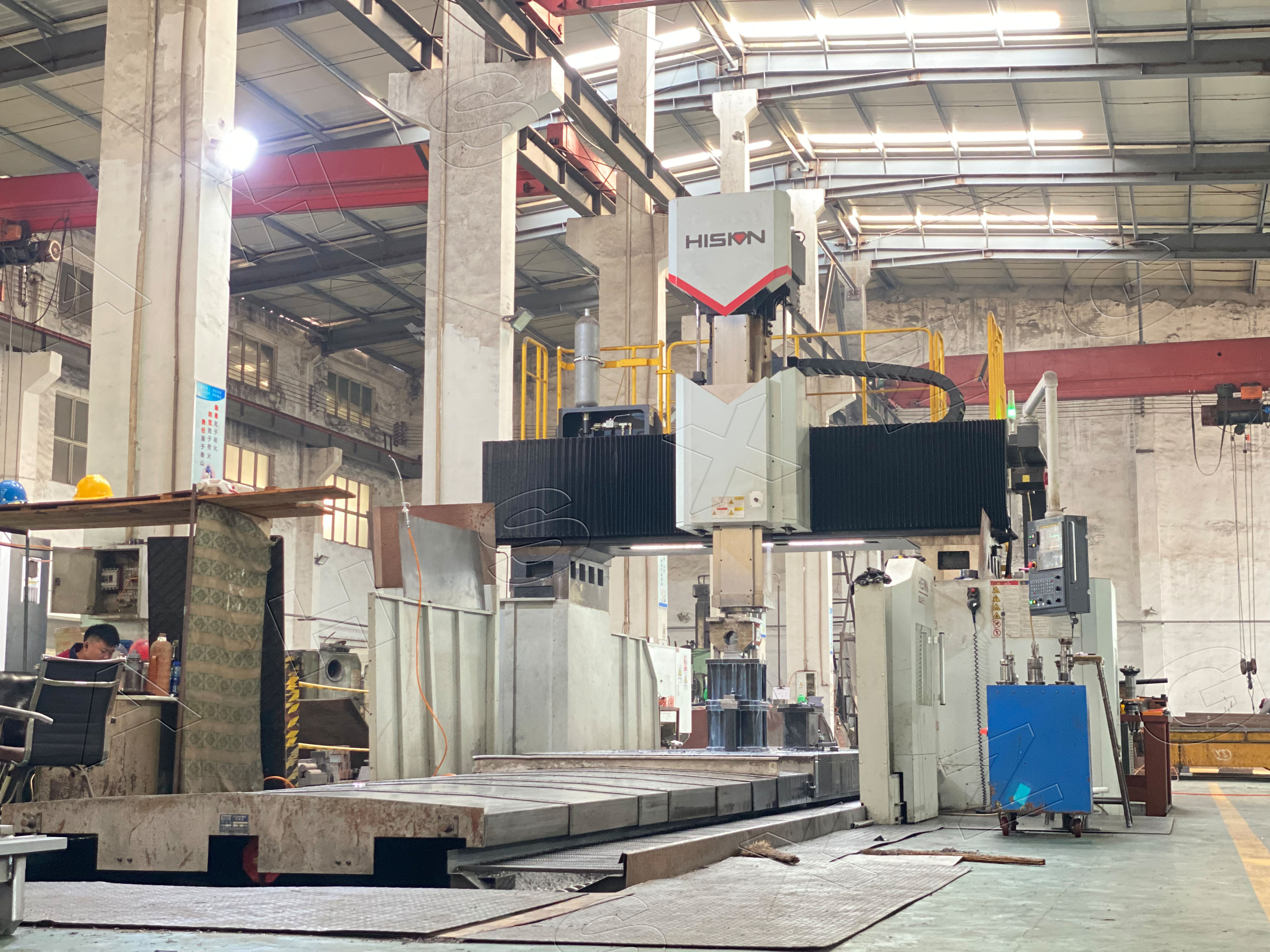

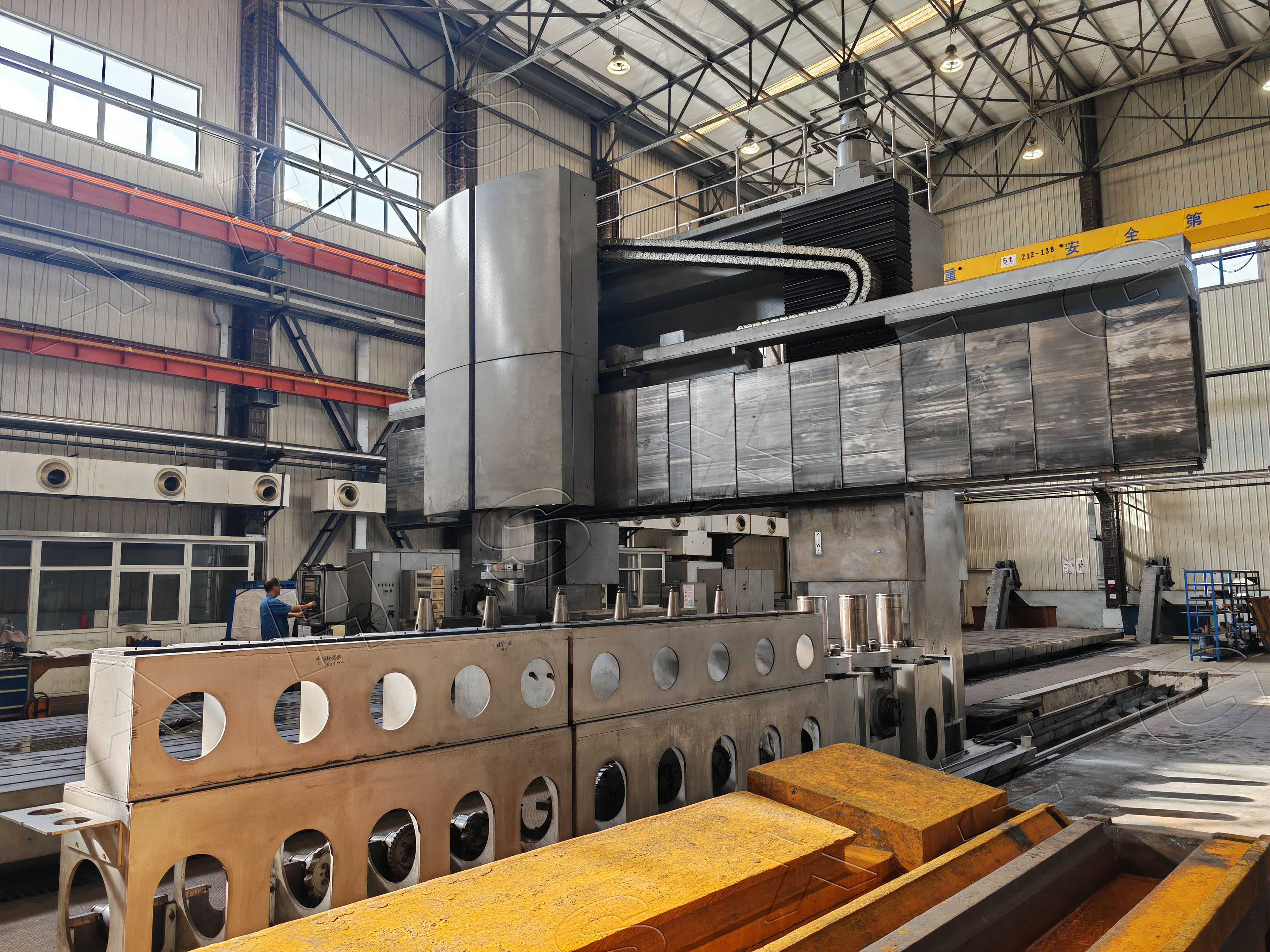

Floor type Gantry Machining Center
Boring and Milling Machining Center

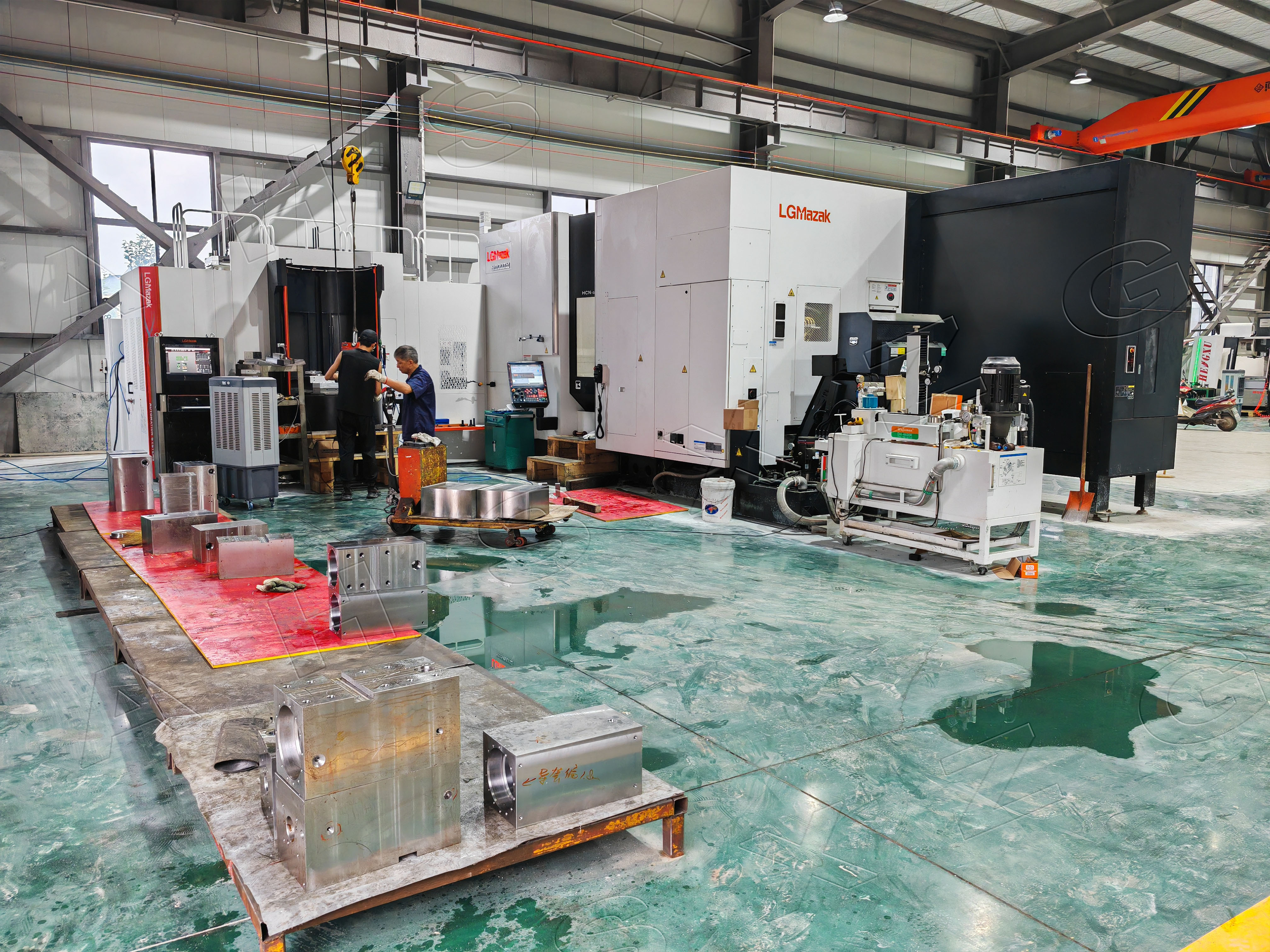

CNC Machining Centers
|
Certifications
|Comment & FAQ
1. Are you trading company or manufacturer?
A: We are manufacturer of press brake, shearing machine, rolling machine and other sheet metal processing machines. Our company has more than 30 years of production experiences.
2. How long is your delivery time?
A: The standard model is 15-30 days, the customized model is 30-60 days.
3. How to choose the model of machines?
A: Tell us the Max working area, the material and its thickness you want to bend/cut, we can help you to choose the best suitable machine.
4. What is your term of payment?
A: T/T, L/C, Western Union, Paypal, Alibaba Secure payment, etc. 30% deposit and 70% payment before delivery.
5. Where is your factory located?
A: Our company is in Maanshan, Anhui Province, which is only half an hour's drive from Nanjing Lukou Airport. If you visit our company, we will arrange a shuttle pick up to meet you at the airport.
