Product Description

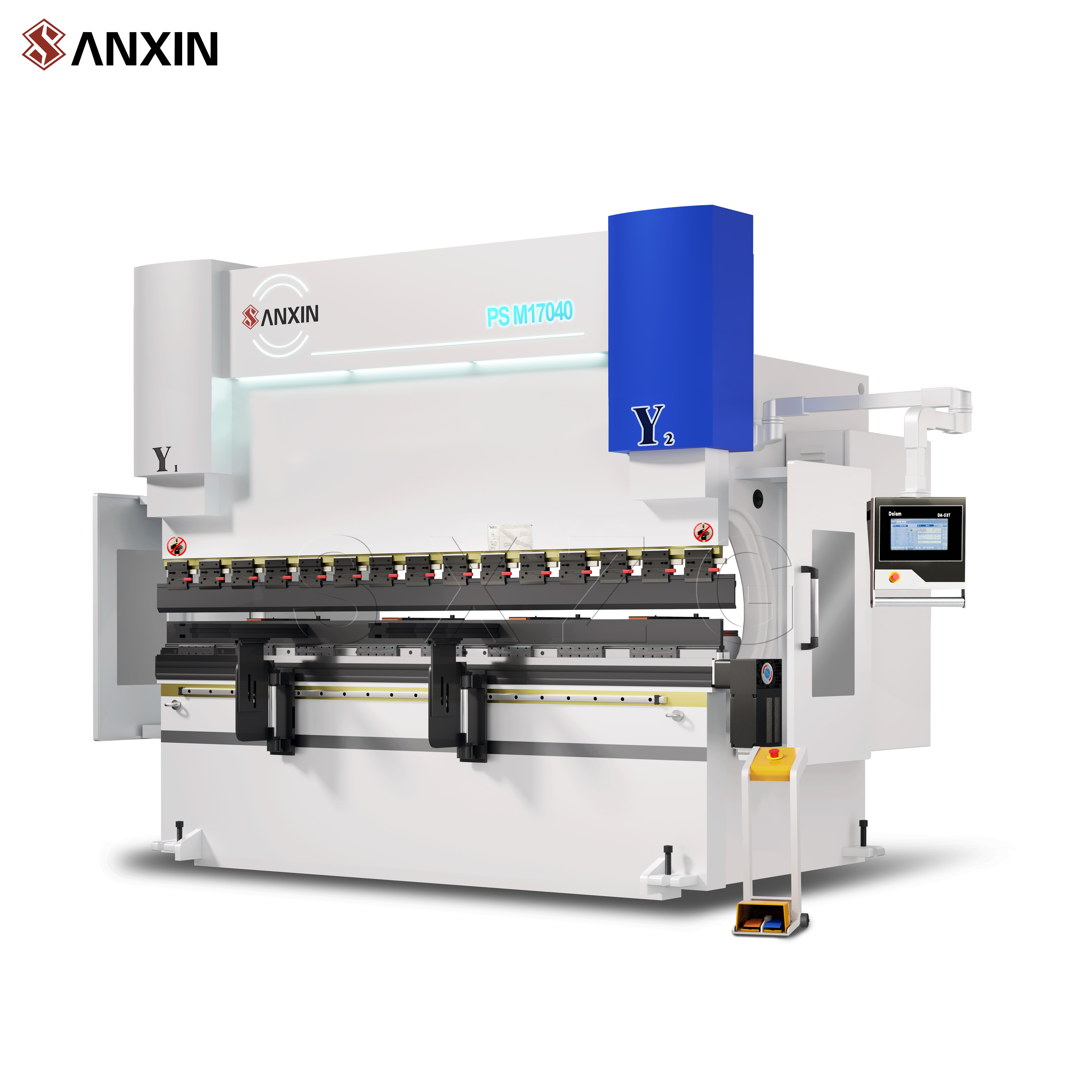

SANXIN PSM Hybrid CNC Press Brake adopts Pump control technology replaces conventional valve control technology. The Dual-Servo Oil-Electric Hybrid system controls the quick lowering, bending and return movements of Y1 and Y2 axes through a set of servo motors and servo pumps on the left and right sides. The movements are fast and stable, and the response speed greatly exceeds that of proportional valve control. Compared with PSA Electro-Hydro CNC Press Brake, hydraulic oil usage is reduced by 70%, energy efficiency increase 50%, and lower noise during operation.
|

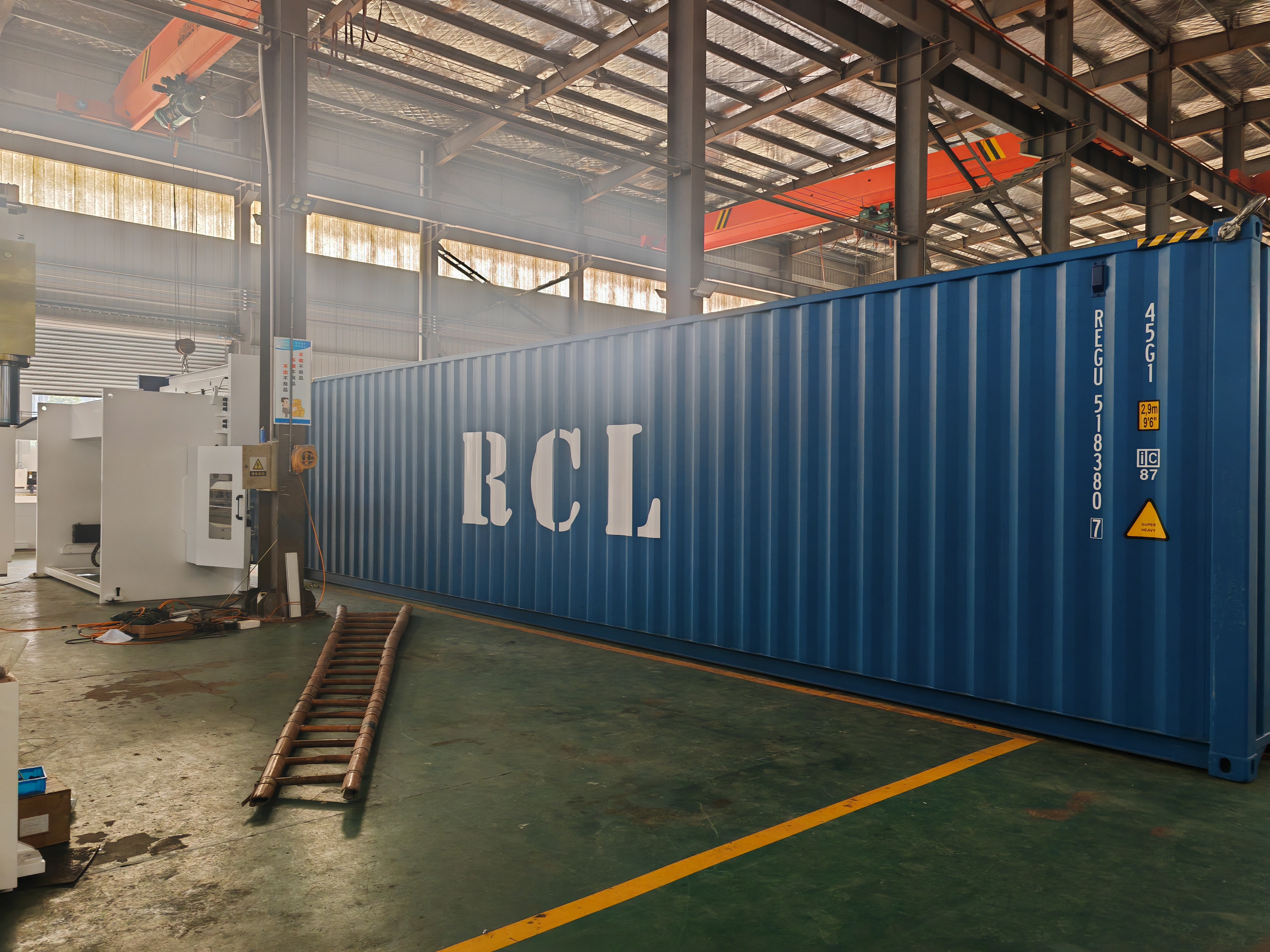

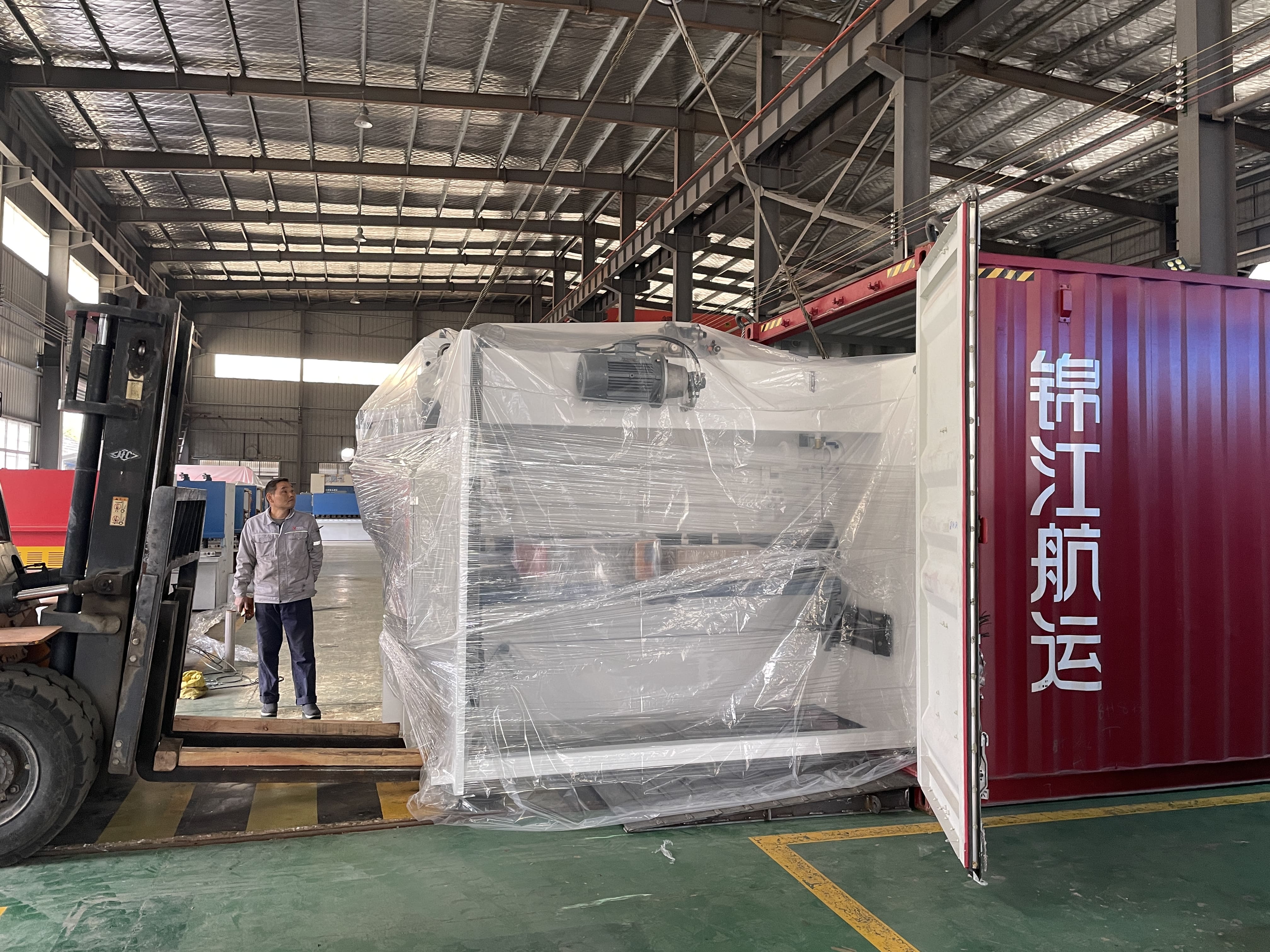

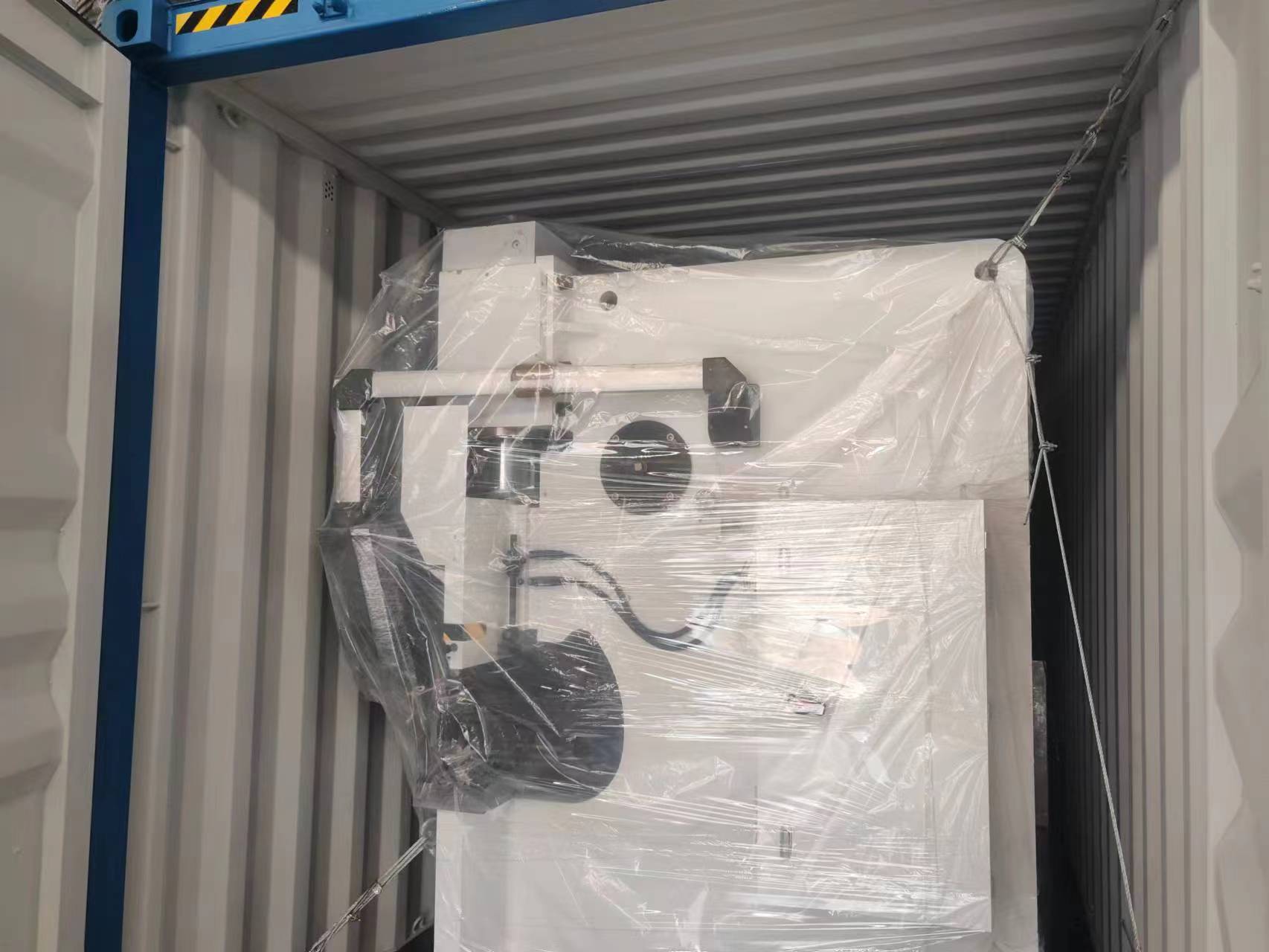

Product Packaging
|
Application Video
|
Comment & FAQ
1. Are you trading company or manufacturer?
A: We are manufacturer of press brake, shearing machine, rolling machine and other sheet metal processing machines. Our company has more than 30 years of production experiences.
2. How long is your delivery time?
A: The standard model is 15-30 days, the customized model is 30-60 days.
3. How to choose the model of machines?
A: Tell us the Max working area, the material and its thickness you want to bend/cut, we can help you to choose the best suitable machine.
4. What is your term of payment?
A: T/T, L/C, Western Union, Paypal, Alibaba Secure Payment, etc. 30% deposit and 70% payment before delivery.
5. Where is your factory located?
A: Our company is in Maanshan, Anhui Province, which is only half an hour's drive from Nanjing Lukou Airport. If you visit our company, we will arrange a shuttle pick up to meet you at the airport.
|
Company Profile
1）Anhui Sanxin Heavy Industrial Machinery Manufacturing Co., Ltd is located in Bowang Economic Development Zone, Maanshan City, Anhui Province, China, and was established in 2007. Our company specializes in metalworking machines, including press brakes, shearing machines, rolling machines, CNC grooving machines and laser cutting machines.
2）We have a strong team of professional mechanical engineers and assembly technicians who work together on design and research. We also provide high-quality sales and after-sales services. We are recognized as a modern, well-known brand both domestically and internationally.
|
Production Process

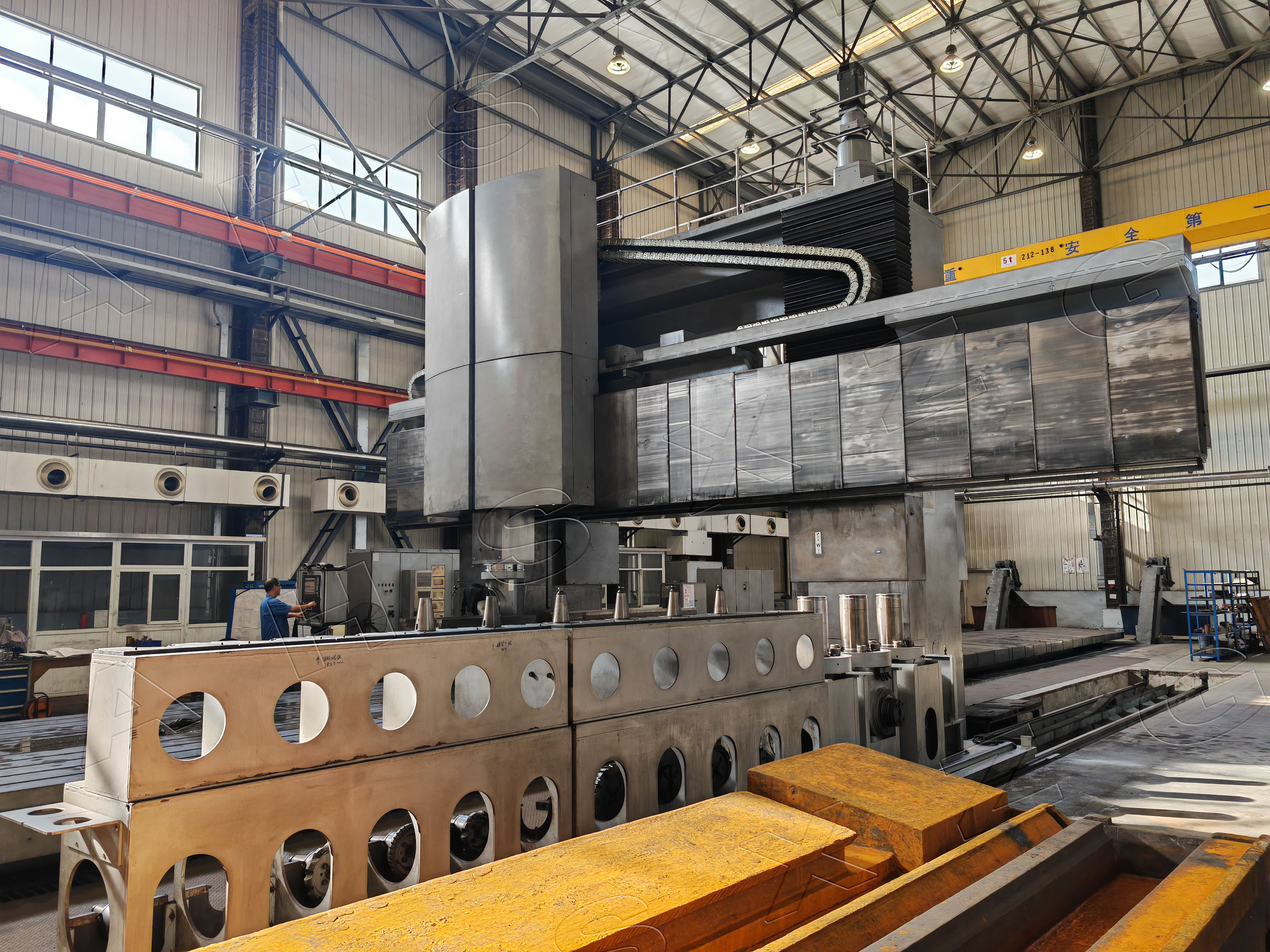

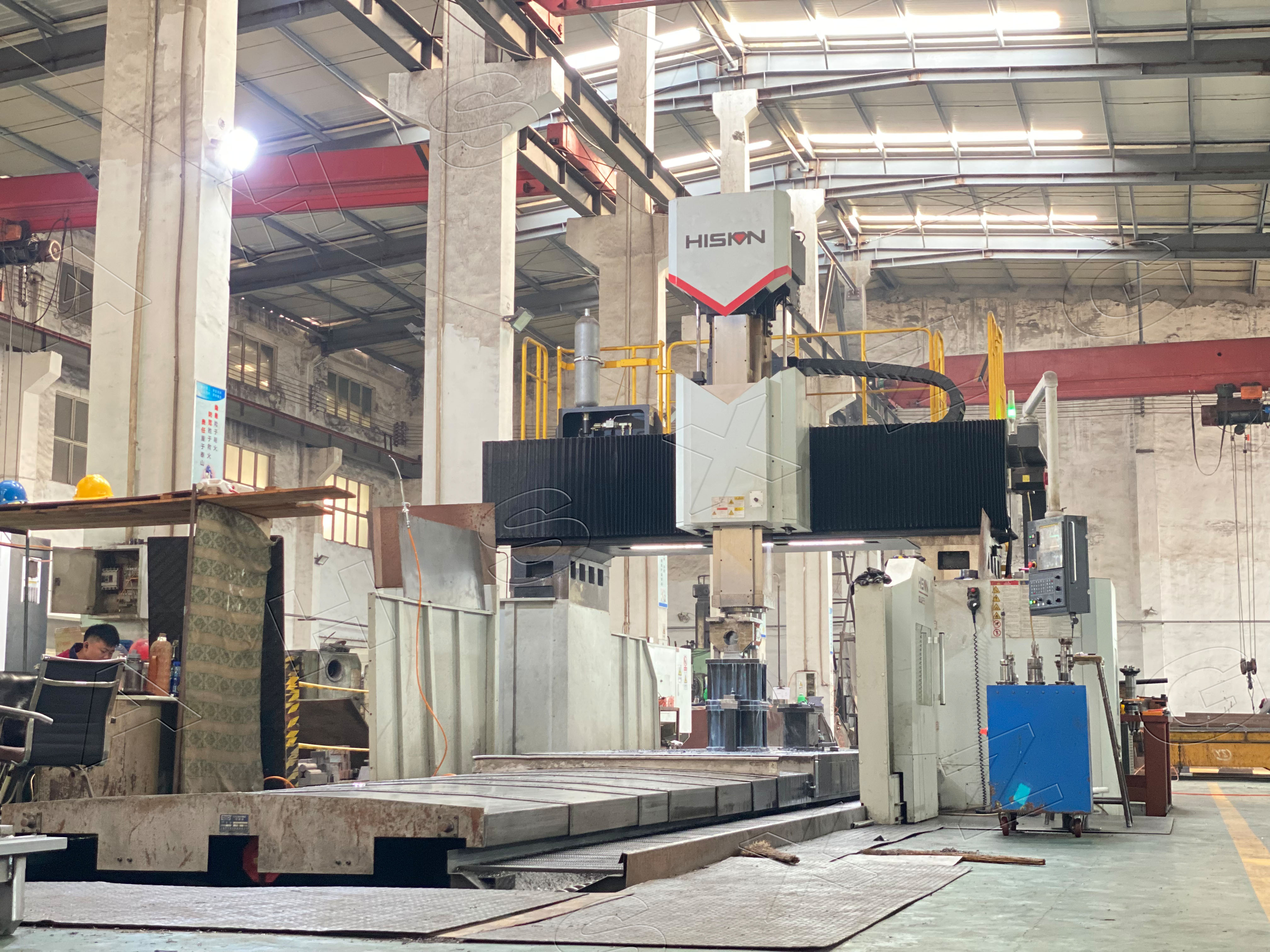

Floor type Gantry Machining Center
Boring and Milling Machining Center

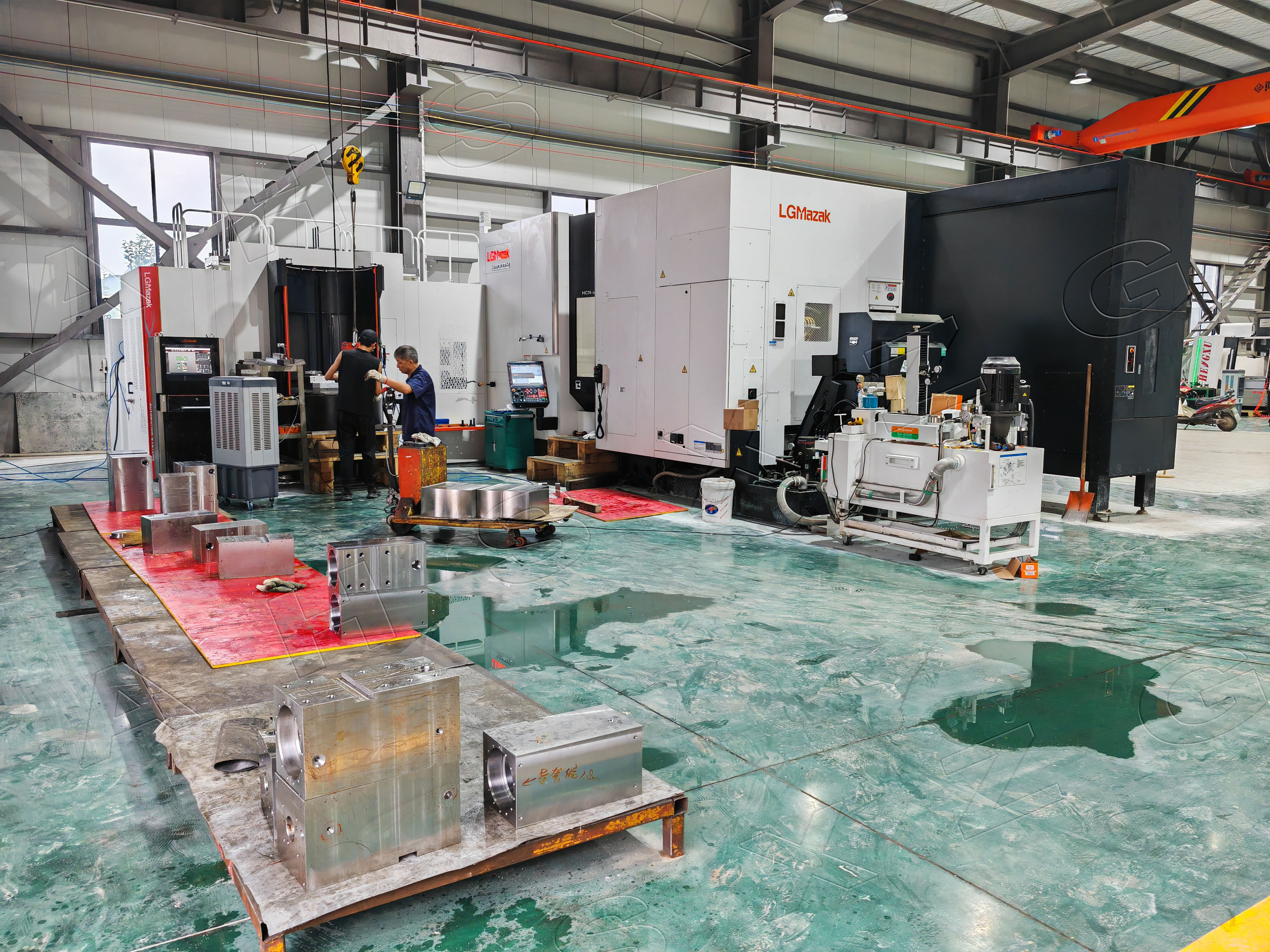

CNC Machining Centers
|

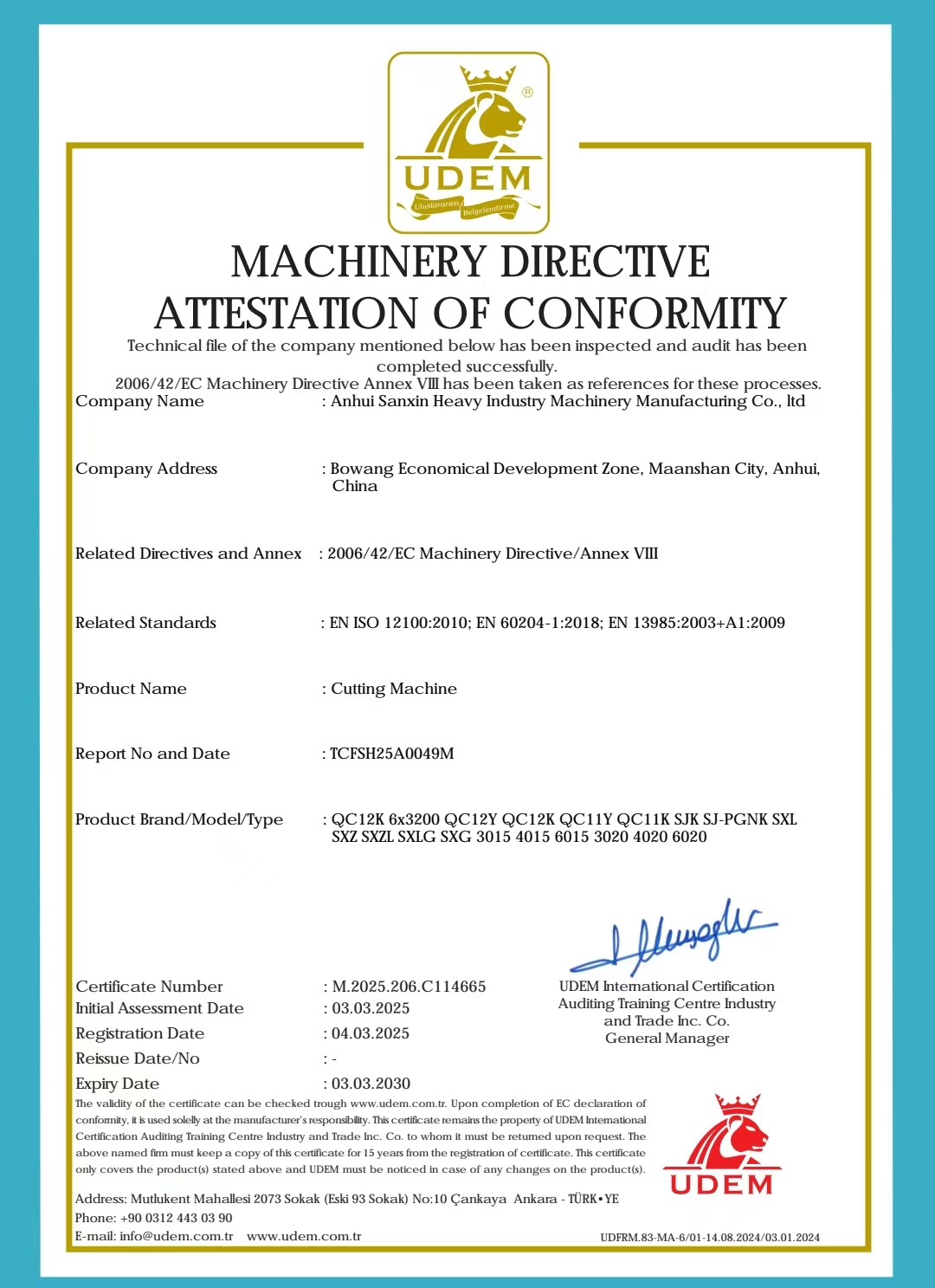

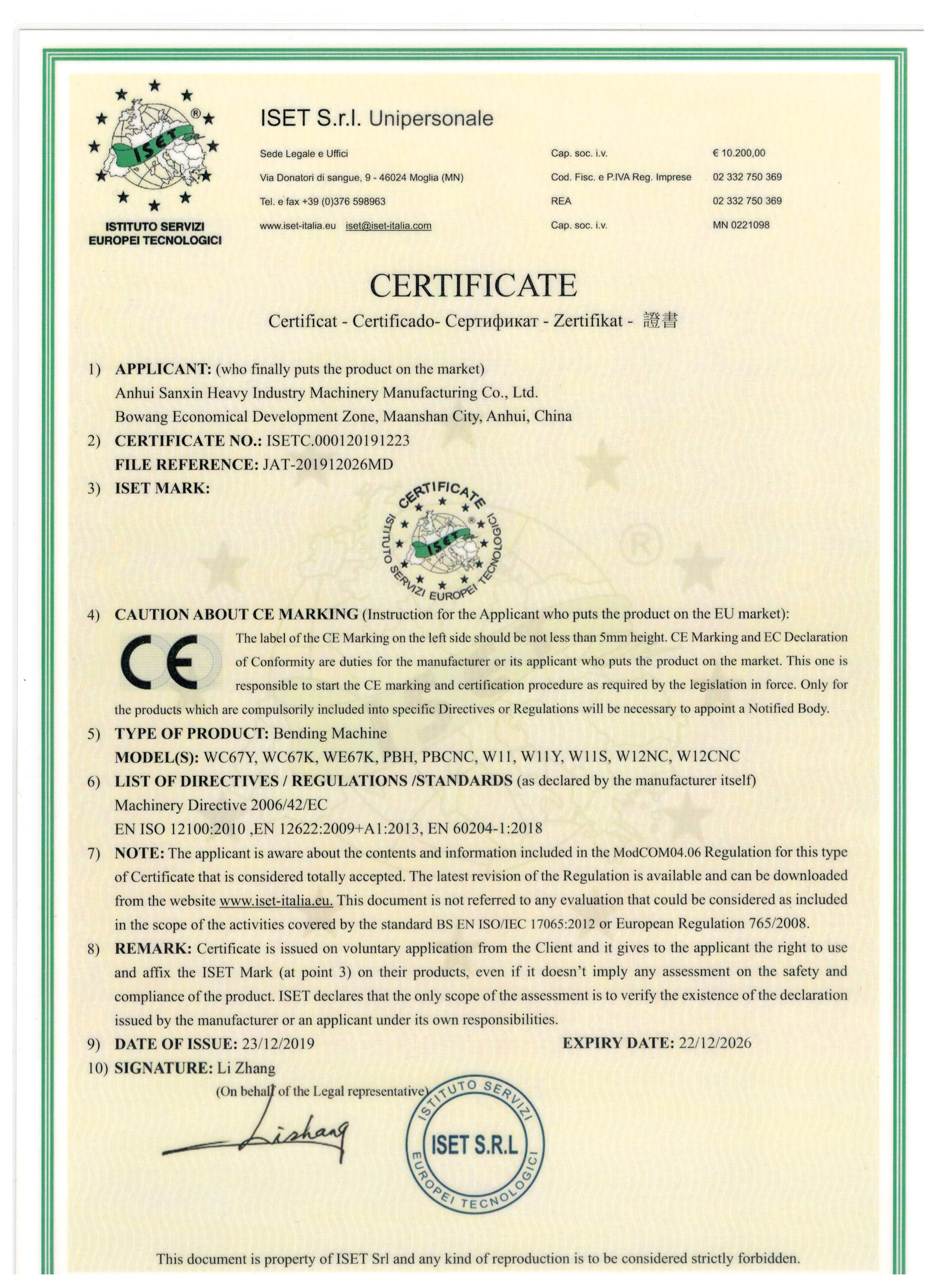

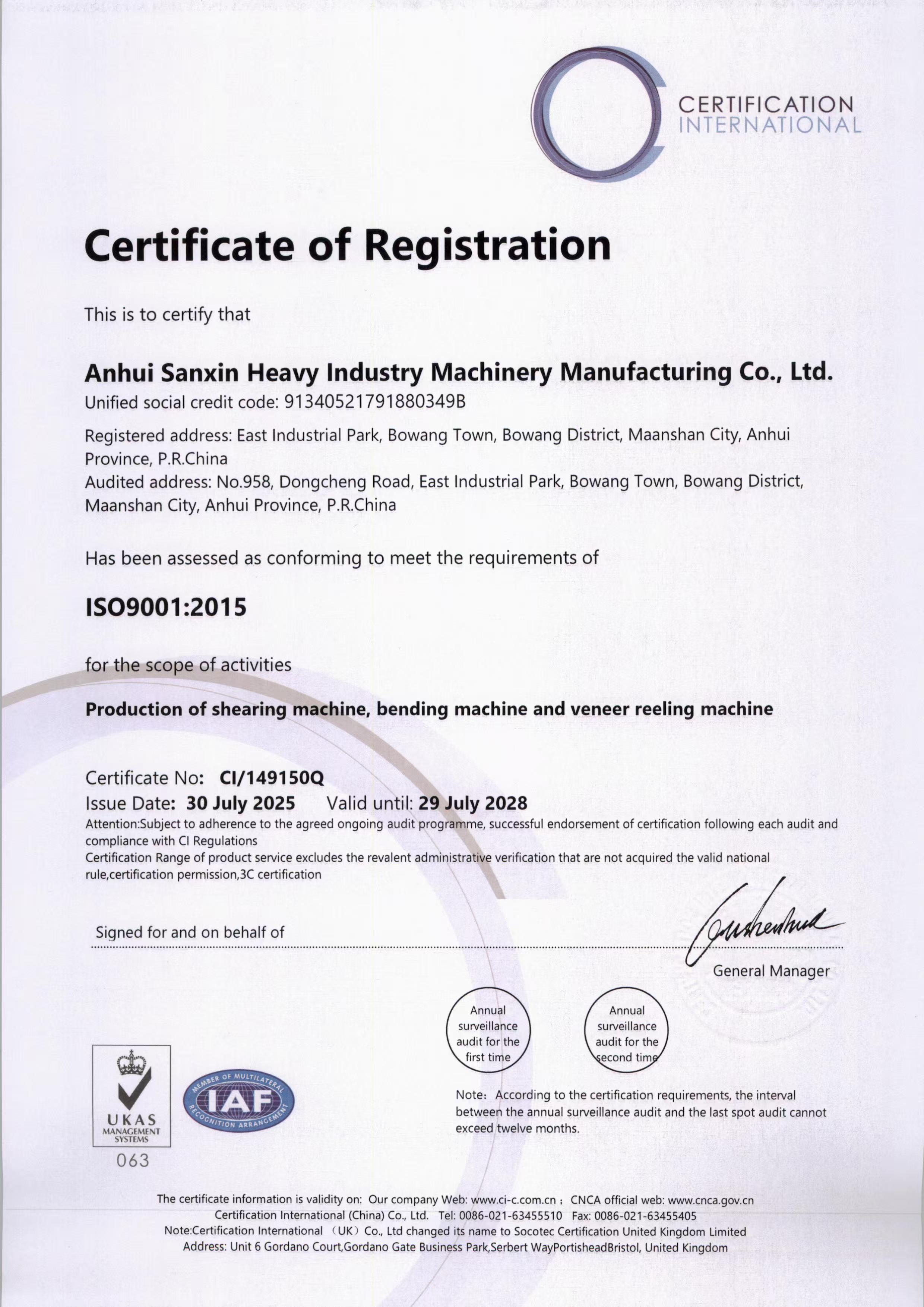

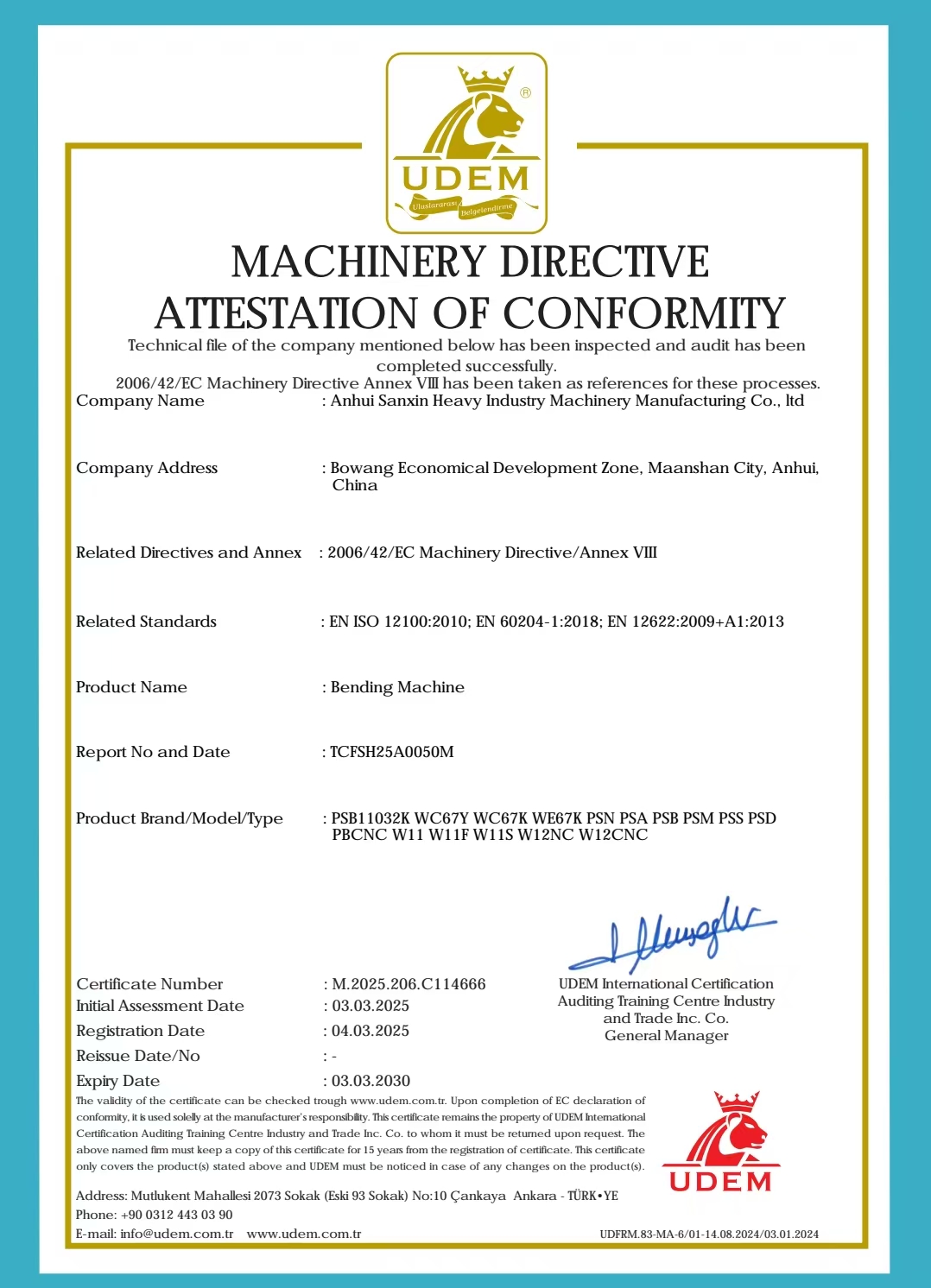

Certifications
|
Data Sheet
| Model | Bending Pressure | Bending Length | Polo Distance | Throat Depth | Slide Strokes | Max Open Height | Servo Main Motor |
| Kn | Mm | Mm | Mm | Mm | Mm | Kw |
| 63T2500 | 630 | 2500 | 2000 | 350 | 150 | 320 | 6 |
| 80T2500 | 800 | 2500 | 2000 | 350 | 150 | 460 | 7.5 |
| 110T3200 | 1100 | 3200 | 2700 | 400 | 200 | 480 | 7.5 |
| 170T4000 | 1700 | 4000 | 3500 | 450 | 200 | 480 | 15 |
| 220T3200 | 2200 | 3200 | 2700 | 450 | 200 | 480 | 15 |
| 320T4000 | 3200 | 4000 | 3500 | 500 | 250 | 570 | 22 |
|
Optional Surface

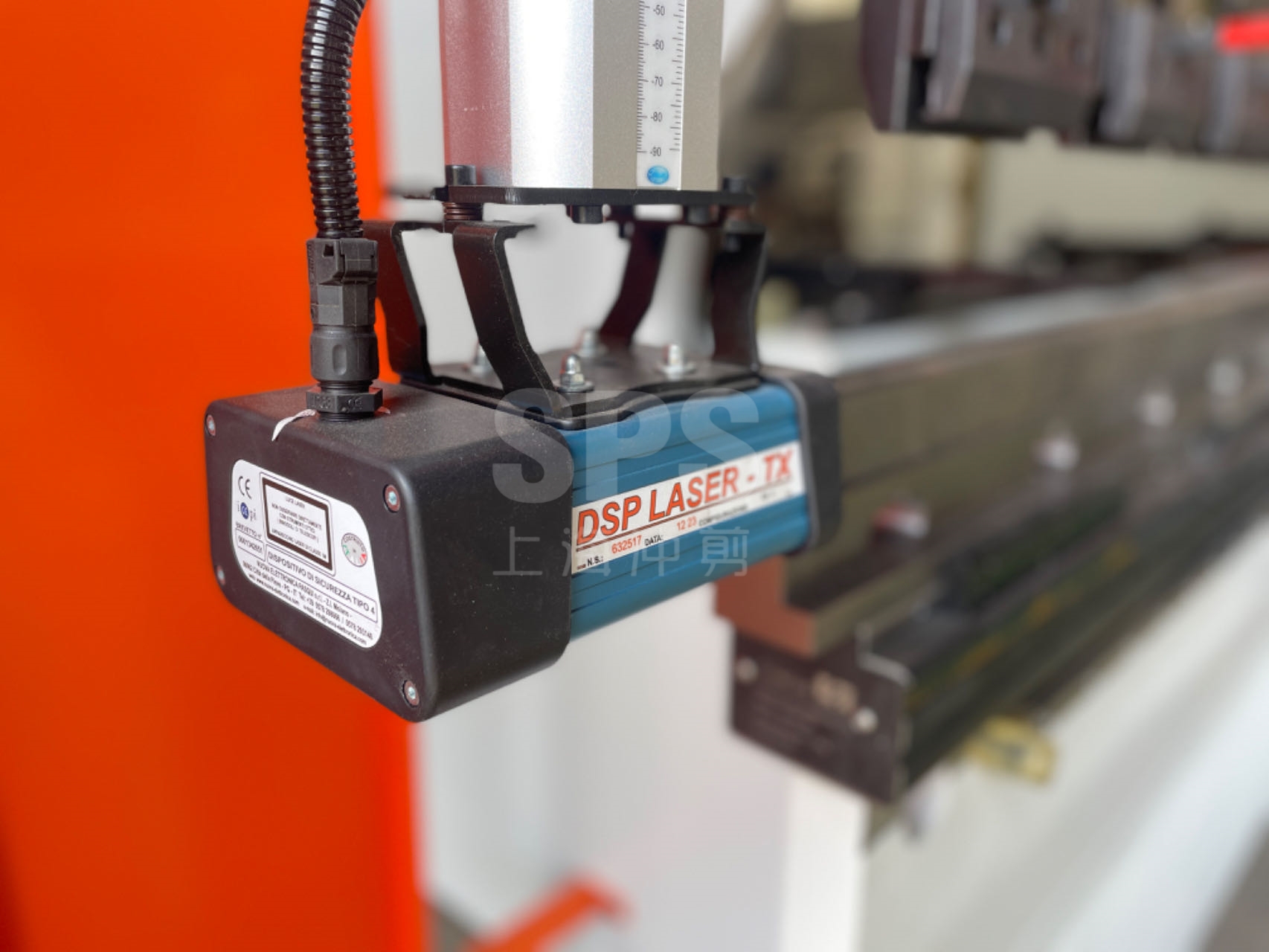

Optional Laser Protection

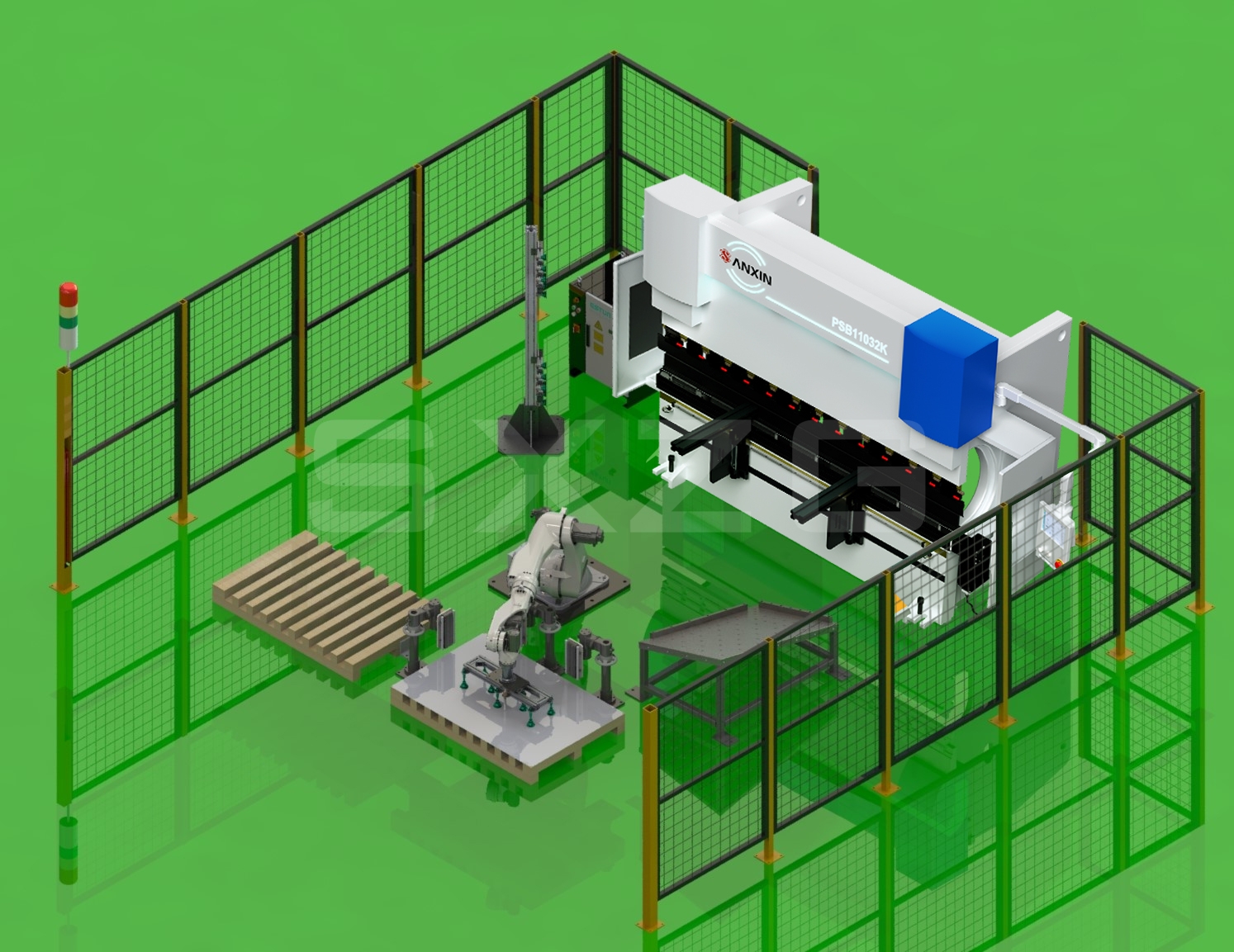

Robotic Arm Systems

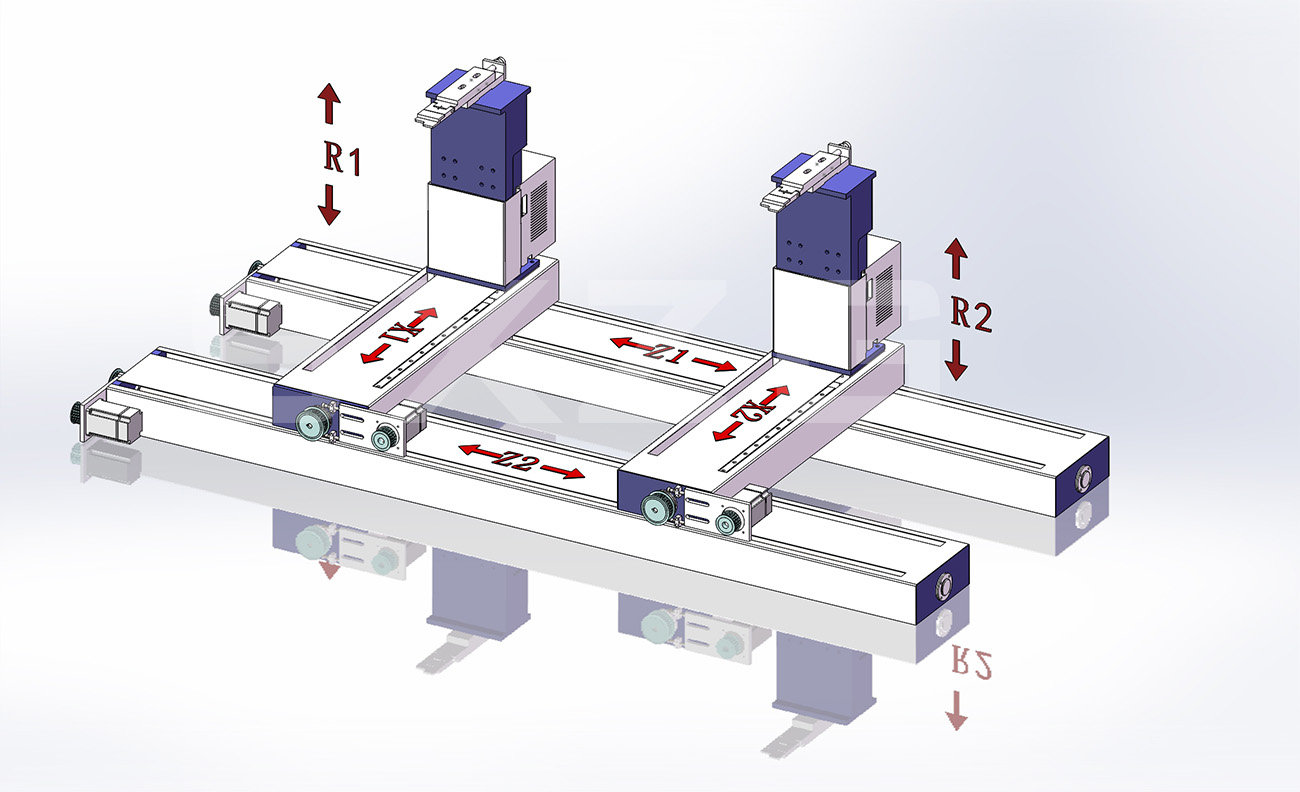

Multiple Back-gauge Design
