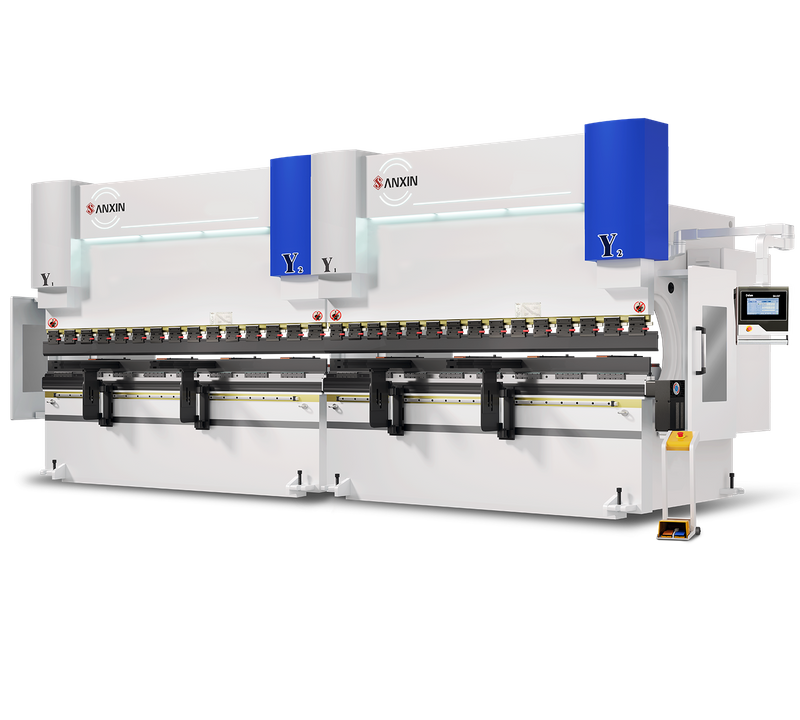

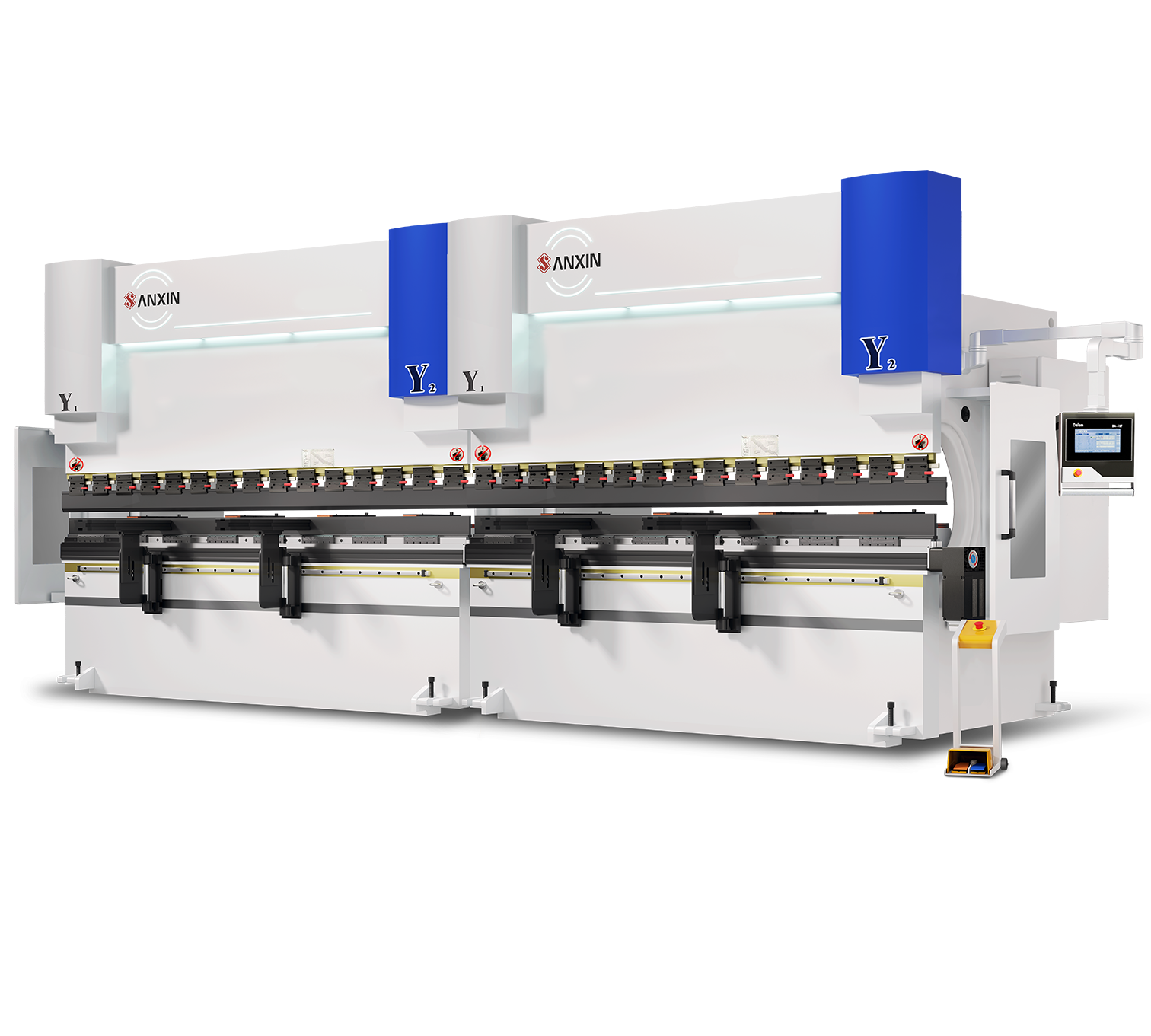

PSD Series
Sanxin
|

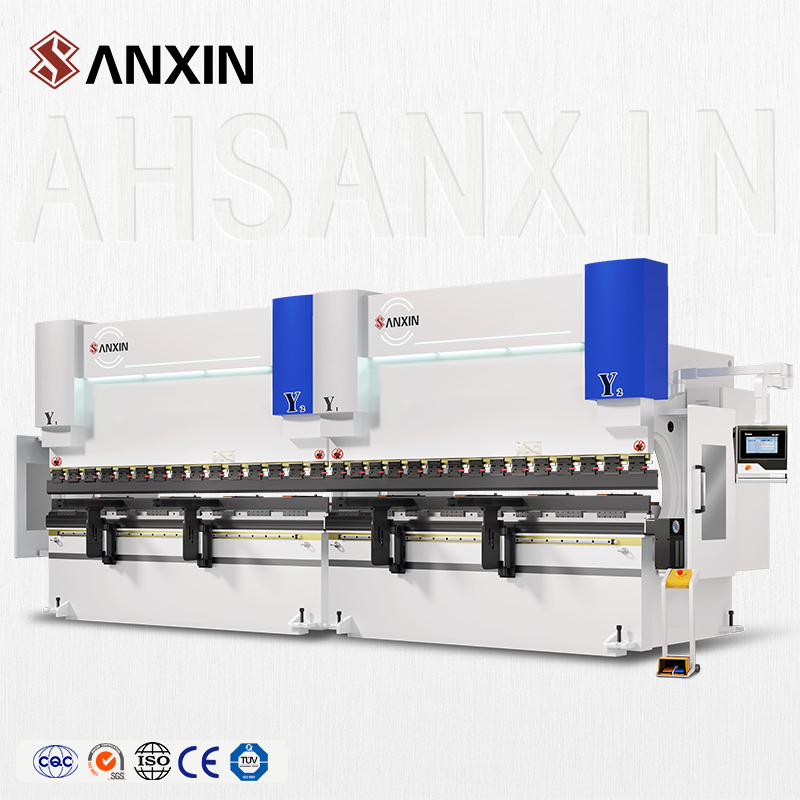

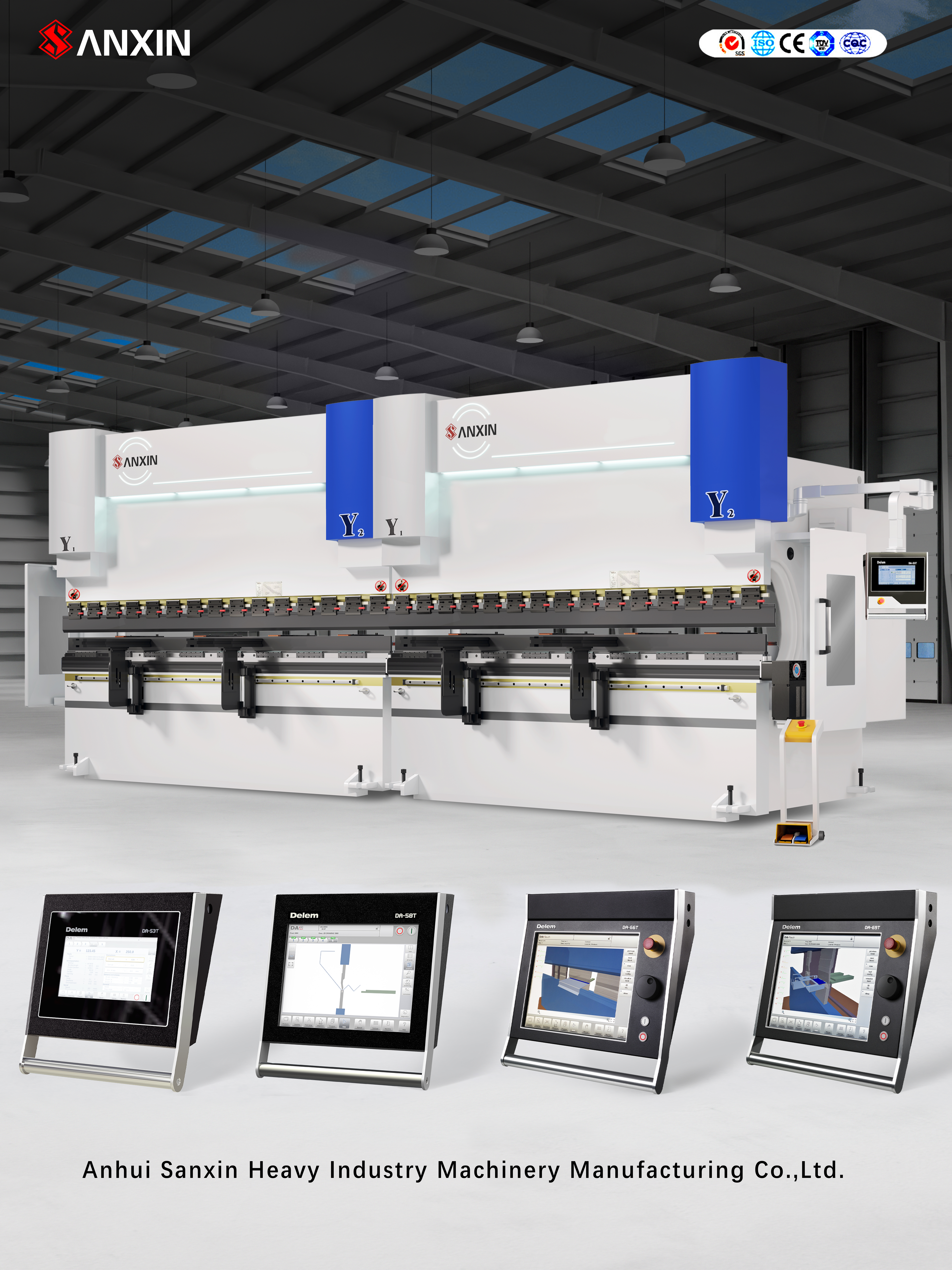

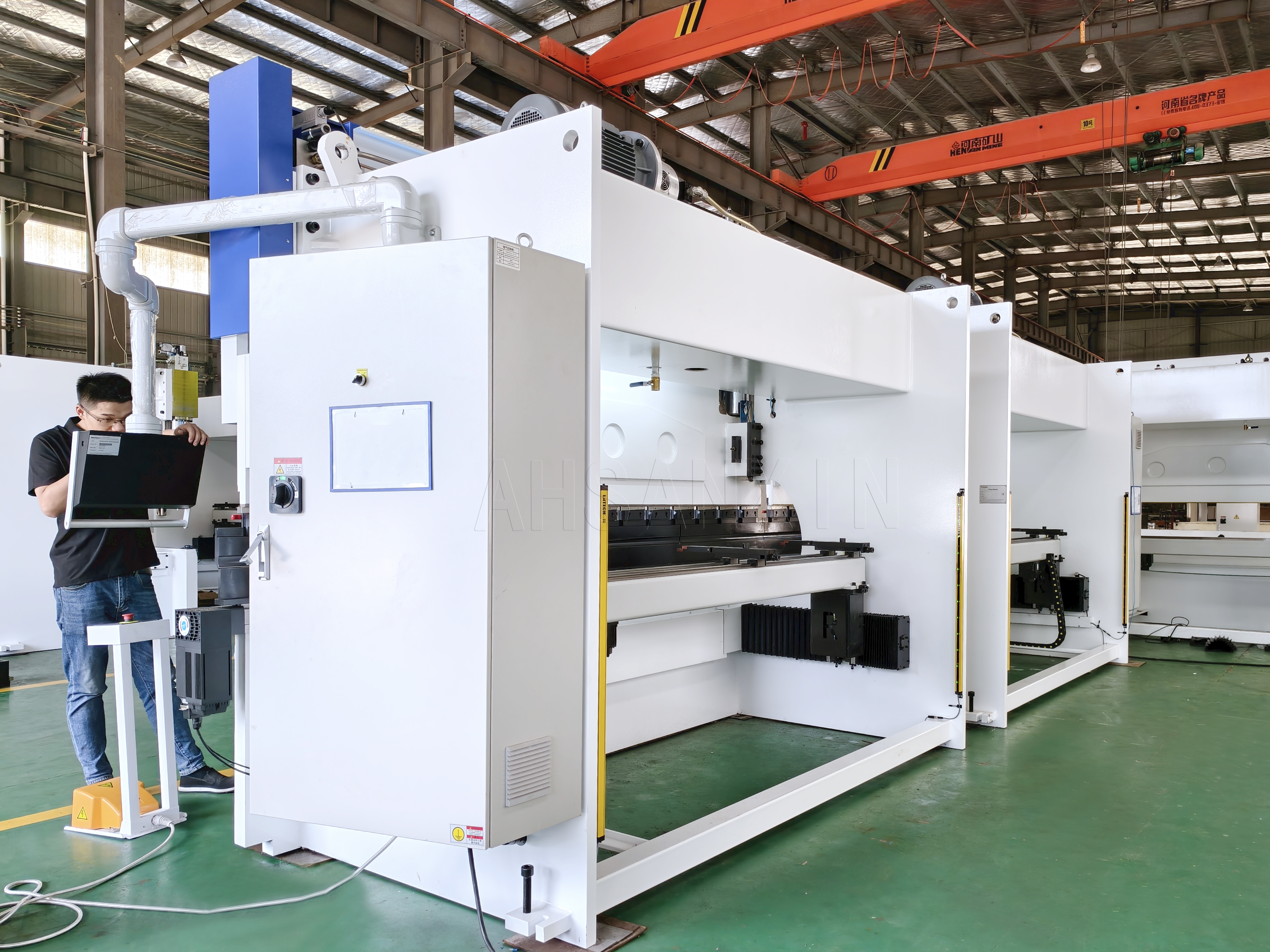

Product Description-Two set of SANXIN Press Brake Machine with the same specifications and configure a double click linkage synchronization device.
-Tandem Press Brake can process extra long workpieces, for example lamp post.
-Press Brake in Tandem can be used separately at the same time to improve production efficiency.

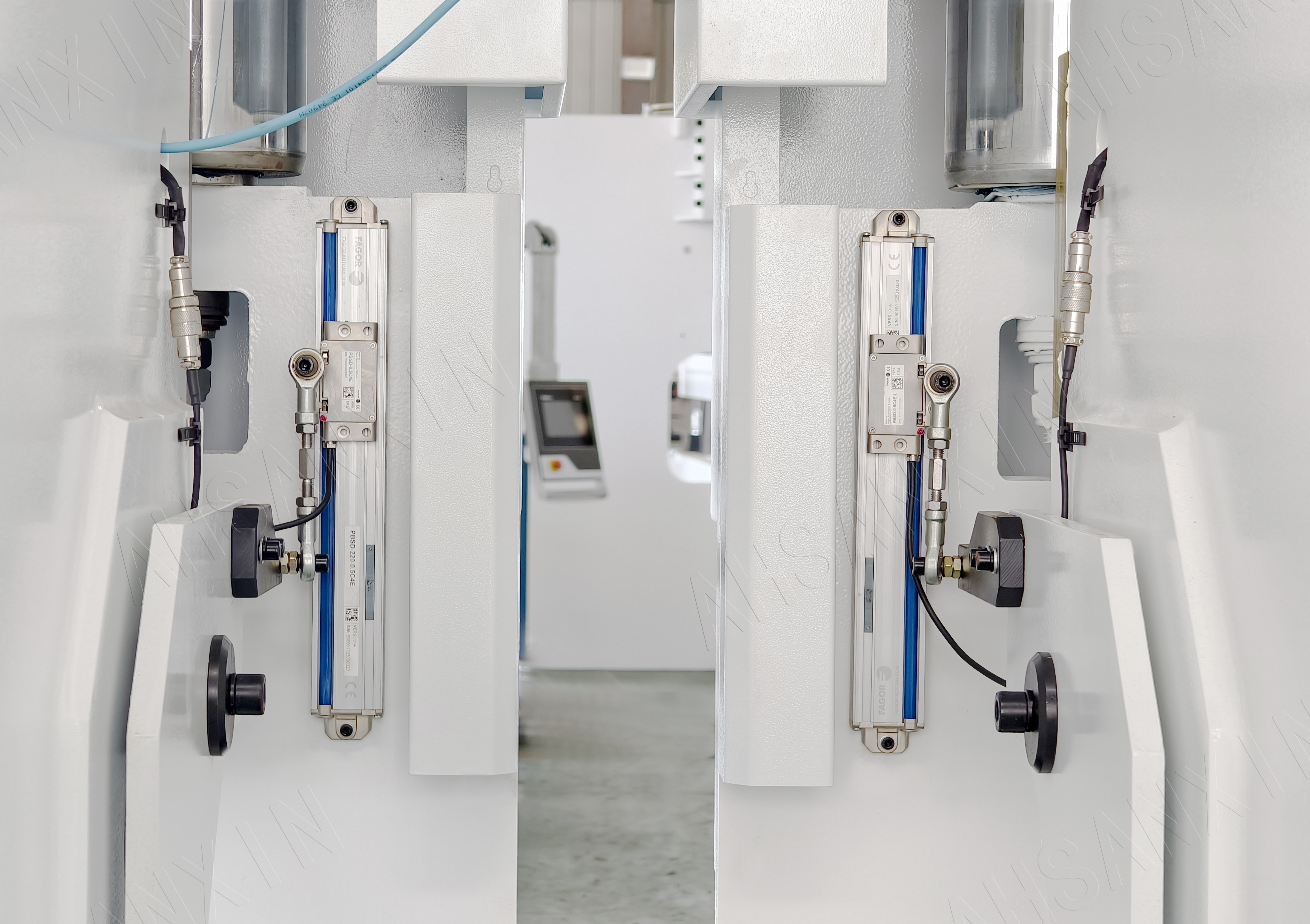

-The machine equipped with a automatic compensation mechanism.
|Detailed Imegas
1. High-speed and high-precision control Avoiding the influence of oil temperature changes on the bending workpieces
2. Energy saving and environmental protection
Pure electricity servo bending machine automatically outputs suitable power according to working conditions. So it ’s particularly power efficient.
No need to use and replace hydraulic oil and avoid environmental pollution caused by waste hydraulic oil.
|Product Packaging
|
Application Video

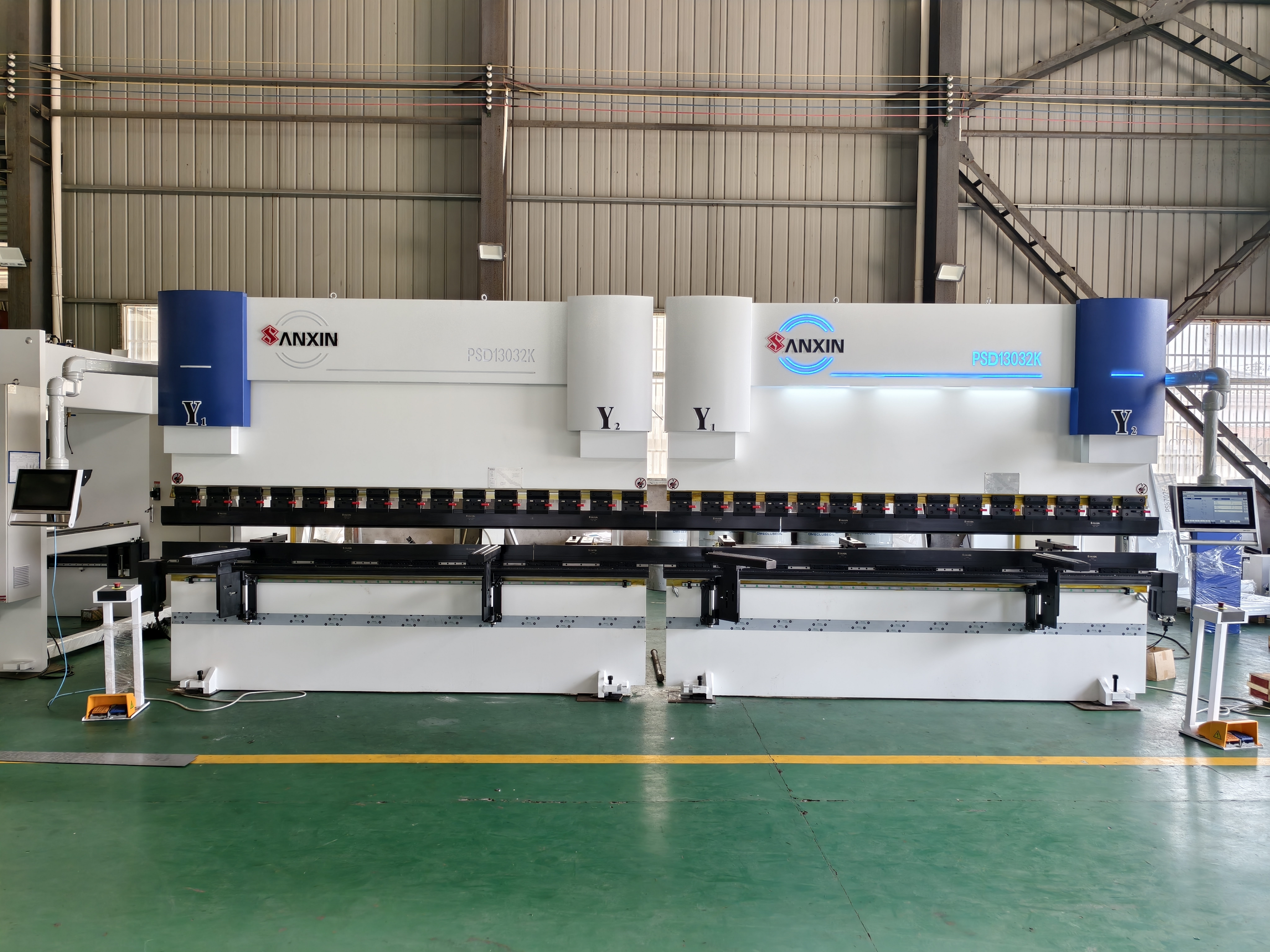

Sanxin PSD 17040K+17060K Tandem CNC Press Brake with Delem DA53T
|
Comment & FAQ
1. Are you trading company or manufacturer?
A: We are manufacturer of press brake, shearing machine, rolling machine and other sheet metal processing machines. Our company has more than 30 years of production experiences.
2. How long is your delivery time?
A: The standard model is 15-30 days, the customized model is 30-60 days.
3. How to choose the model of machines?
A: Tell us the Max working area, the material and its thickness you want to bend/cut, we can help you to choose the best suitable machine.
4. What is your term of payment?
A: T/T, L/C, Western Union, Paypal, Alibaba Secure payment, etc. 30% deposit and 70% payment before delivery.
5. Where is your factory located?
A: Our company is in Maanshan, Anhui Province, which is only half an hour's drive from Nanjing Lukou Airport. If you visit our company, we will arrange a shuttle pick up to meet you at the airport.
|
Company Profile
1）Anhui Sanxin Heavy Industrial Machinery Manufacturing Co., Ltd is located in Bowang Economic Development Zone, Maanshan City, Anhui Province, China, and was established in 2007. Our company specializes in metalworking machines, including press brakes, shearing machines, rolling machines, CNC grooving machines and laser cutting machines.
2）We have a strong team of professional mechanical engineers and assembly technicians who work together on design and research. We also provide high-quality sales and after-sales services. We are recognized as a modern, well-known brand both domestically and internationally.
|
Production Process

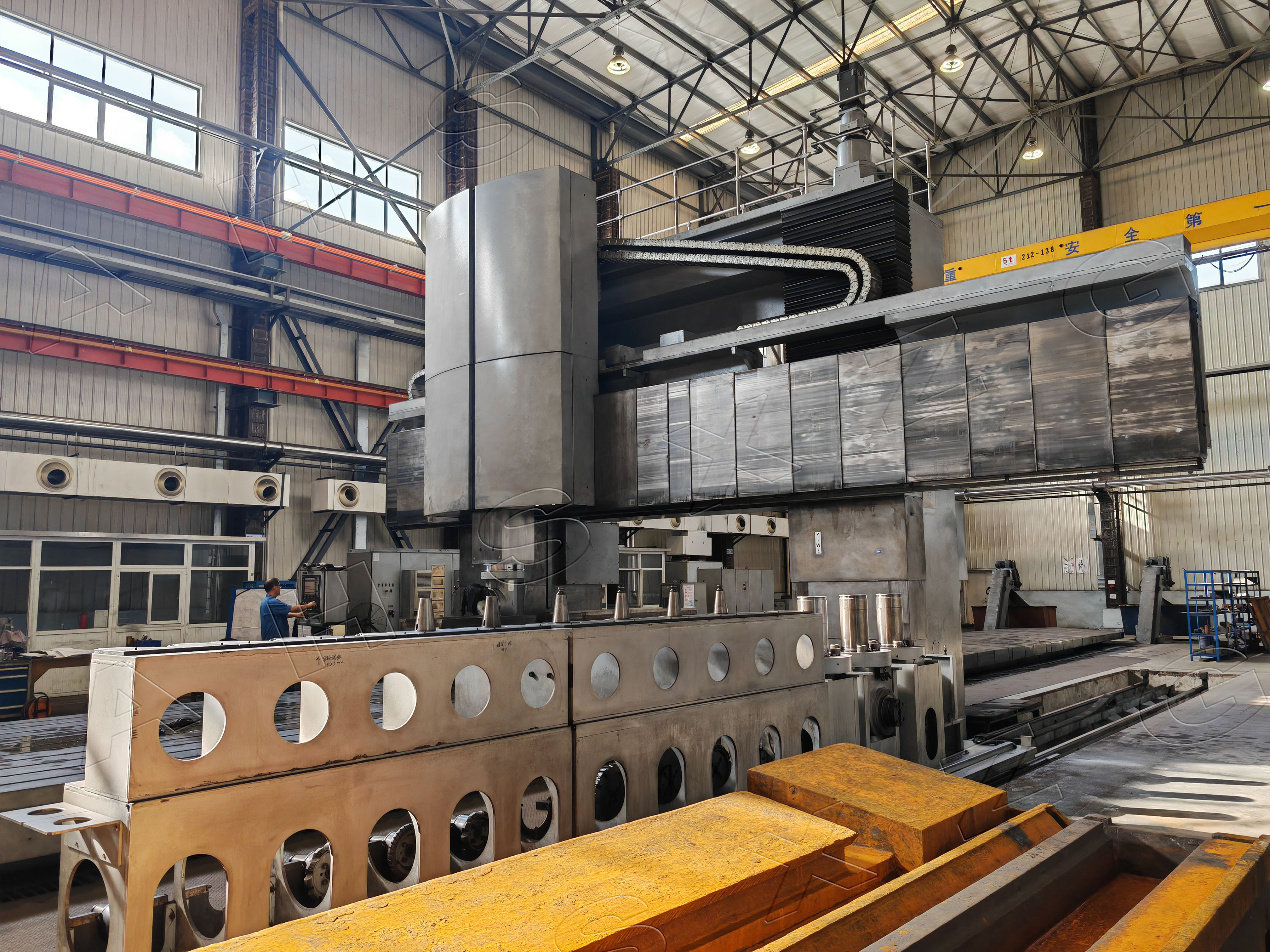

Boring and Milling Machining Center

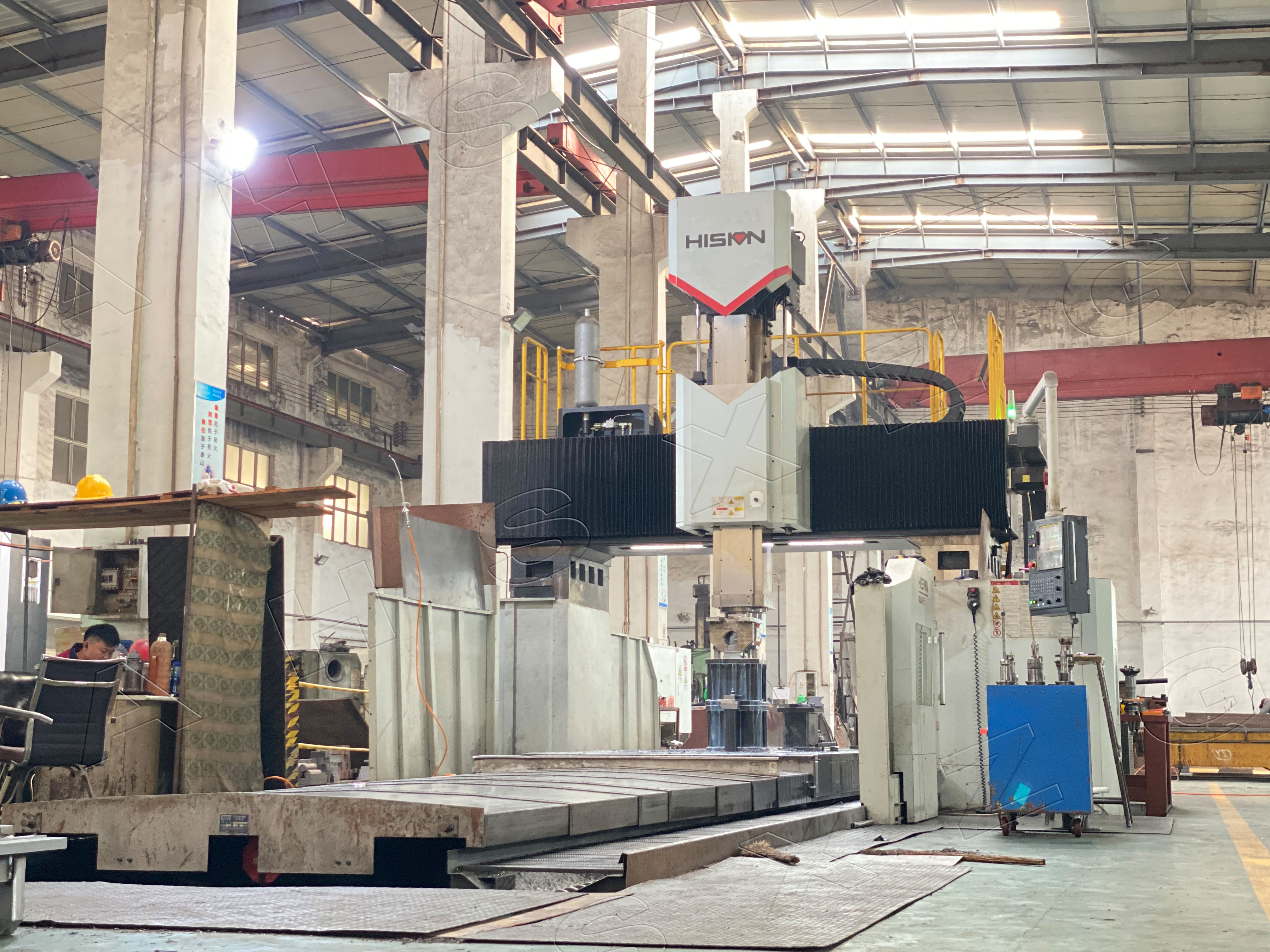

Floor type Gantry Machining Center

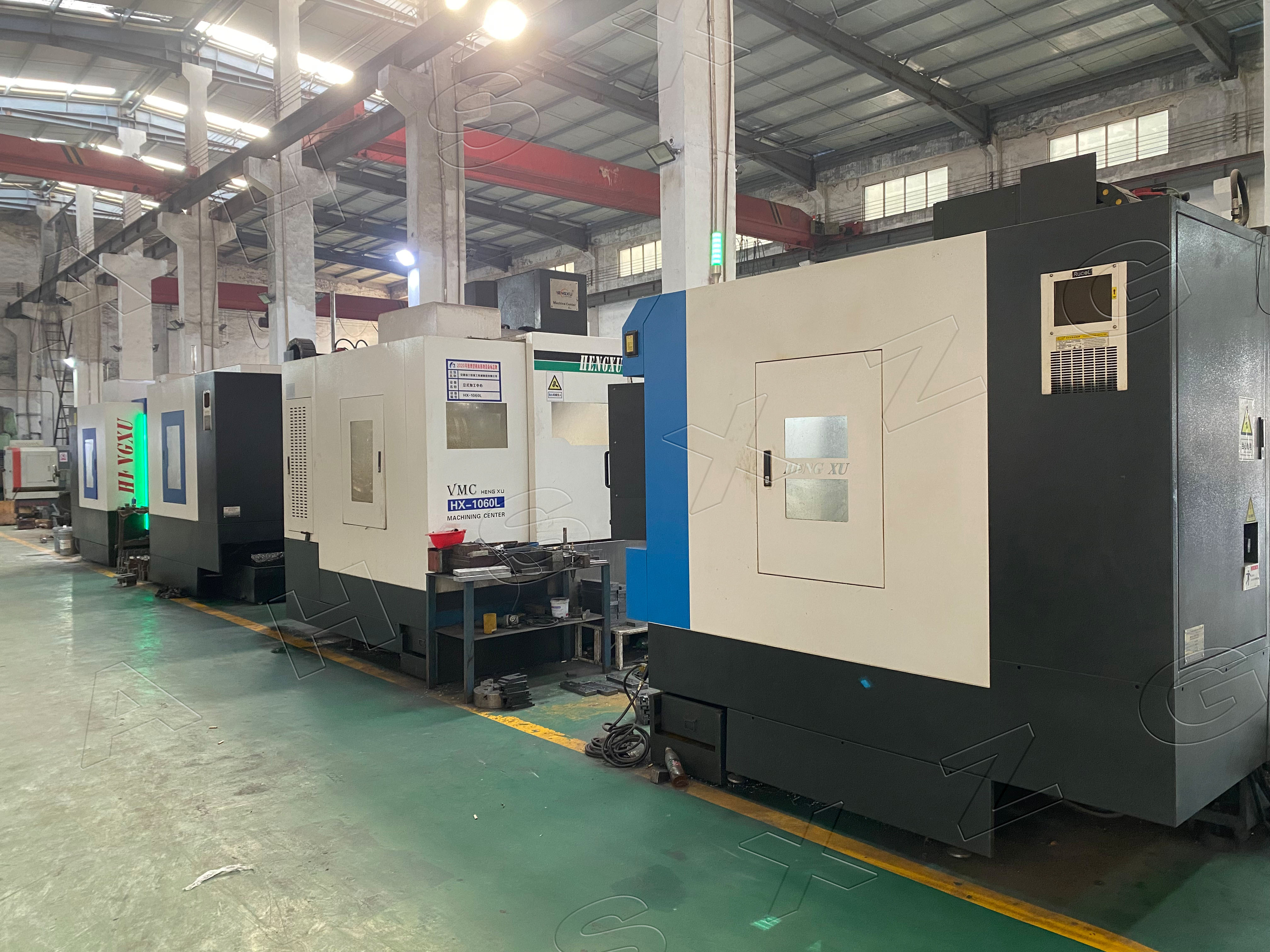

CNC Machining Centers
|
Certifications
|
Data Sheet
Model/Unit | Bending Force | Bending Length | Polo Distance | Throat Depth | Slide Strokes | Worktable Heght | Max Open Height | Servo Main Motor | Backgauge Travel | Speed | Dimension L*W*H |
Kn | Mm | Mm | Mm | Mm | Mm | Mm | Kw | Mm | mm/s | Mm | |
63T2500 | 630 | 2500 | 2100 | 350 | 150 | 780 | 420 | 5.5 | 600 | 200 | 3200*1600*2500 |
80T2500 | 800 | 3200 | 2700 | 350 | 150 | 780 | 420 | 7.5 | 600 | 200 | 3500*1600*2500 |
110T3200 | 1100 | 3200 | 2700 | 500 | 200 | 780 | 480 | 11 | 600 | 200 | 3500*1700*2700 |
110T4000 | 1100 | 4000 | 3500 | 500 | 200 | 780 | 480 | 11 | 600 | 200 | 4300*1700*2700 |
130T3200 | 1300 | 3200 | 2700 | 500 | 200 | 780 | 480 | 11 | 600 | 200 | 3500*1700*2700 |
130T4000 | 1300 | 4000 | 3500 | 500 | 200 | 780 | 480 | 11 | 600 | 200 | 4300*1700*2700 |
170T3200 | 1700 | 3200 | 2700 | 450 | 200 | 850 | 480 | 15 | 600 | 200 | 3700*1800*2800 |
170T4000 | 1700 | 4000 | 3500 | 400 | 200 | 840 | 480 | 15 | 600 | 200 | 4500*2200*3600 |
220T3200 | 2200 | 3200 | 2700 | 360 | 200 | 900 | 480 | 18.5 | 600 | 200 | 3700*1900*3000 |
220T4000 | 2200 | 4000 | 3500 | 400 | 200 | 900 | 480 | 18.5 | 600 | 200 | 4500*1900*3000 |
250T3200 | 2500 | 3200 | 2700 | 360 | 250 | 840 | 480 | 18.5 | 600 | 200 | 3800*1900*3100 |
250T4000 | 2500 | 4000 | 3500 | 400 | 250 | 900 | 550 | 22 | 600 | 200 | 4500*1900*3100 |
320T3200 | 3200 | 3200 | 2700 | 400 | 250 | 950 | 560 | 22 | 600 | 200 | 3800*2000*3200 |
320T4000 | 3200 | 4000 | 3500 | 400 | 250 | 950 | 560 | 22 | 600 | 200 | 4500*2000*3200 |
400T4000 | 4000 | 4000 | 3500 | 400 | 250 | 1000 | 560 | 30 | 600 | 200 | 4300*2200*3600 |
500T5000 | 5000 | 5000 | 3900 | 500 | 250 | 1000 | 600 | 37 | 600 | 200 | 5300*2300*360 |
500T6000 | 5000 | 6000 | 4900 | 500 | 250 | Sink800 | 600 | 37 | 600 | 200 | 6300*2300*3700 |
500T7000 | 5000 | 7000 | 5900 | 500 | 250 | Sink800 | 600 | 37 | 600 | 200 | 7500*2500*3700 |
600T5000 | 6000 | 5000 | 3900 | 500 | 300 | Sink800 | 600 | 45 | 600 | 200 | 5500*2700*3800 |
600T6000 | 6000 | 6000 | 4900 | 500 | 300 | Sink800 | 600 | 45 | 600 | 200 | 6500*2700*3800 |
600T7000 | 6000 | 7000 | 5900 | 500 | 300 | 1000 | 600 | 45 | 600 | 200 | 7500*2800*3900 |
|
Optional Surface

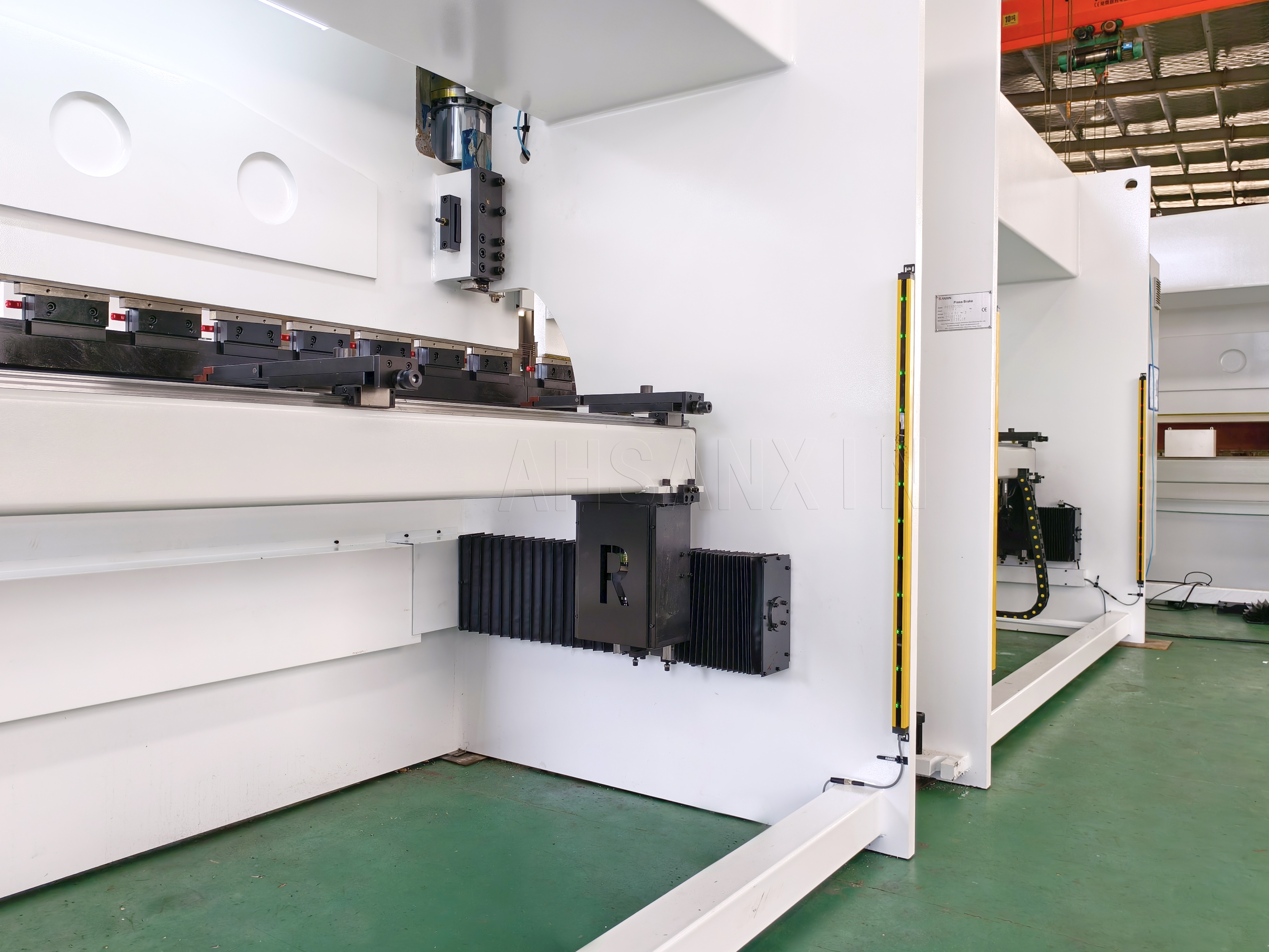

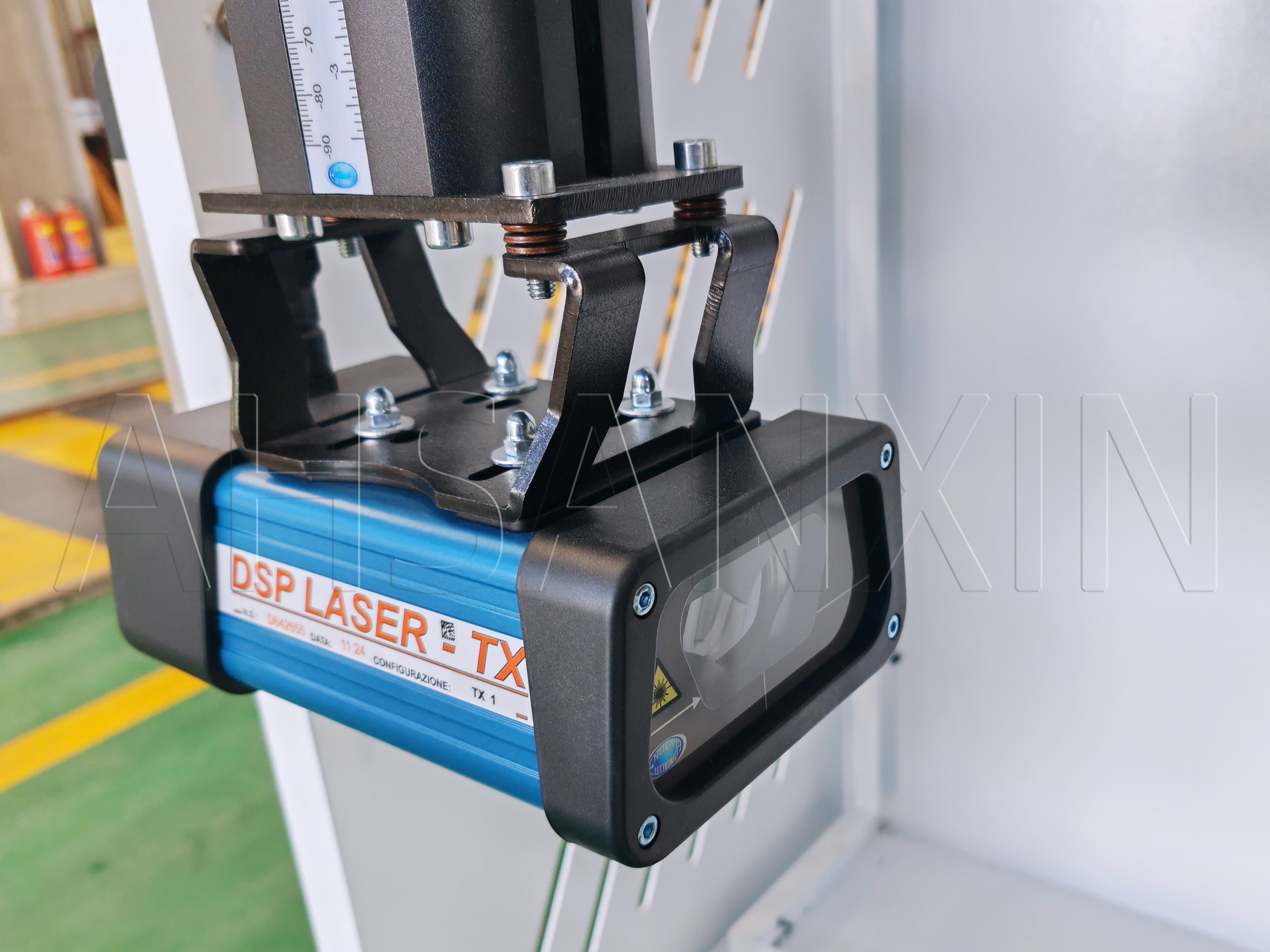

Laser Protection

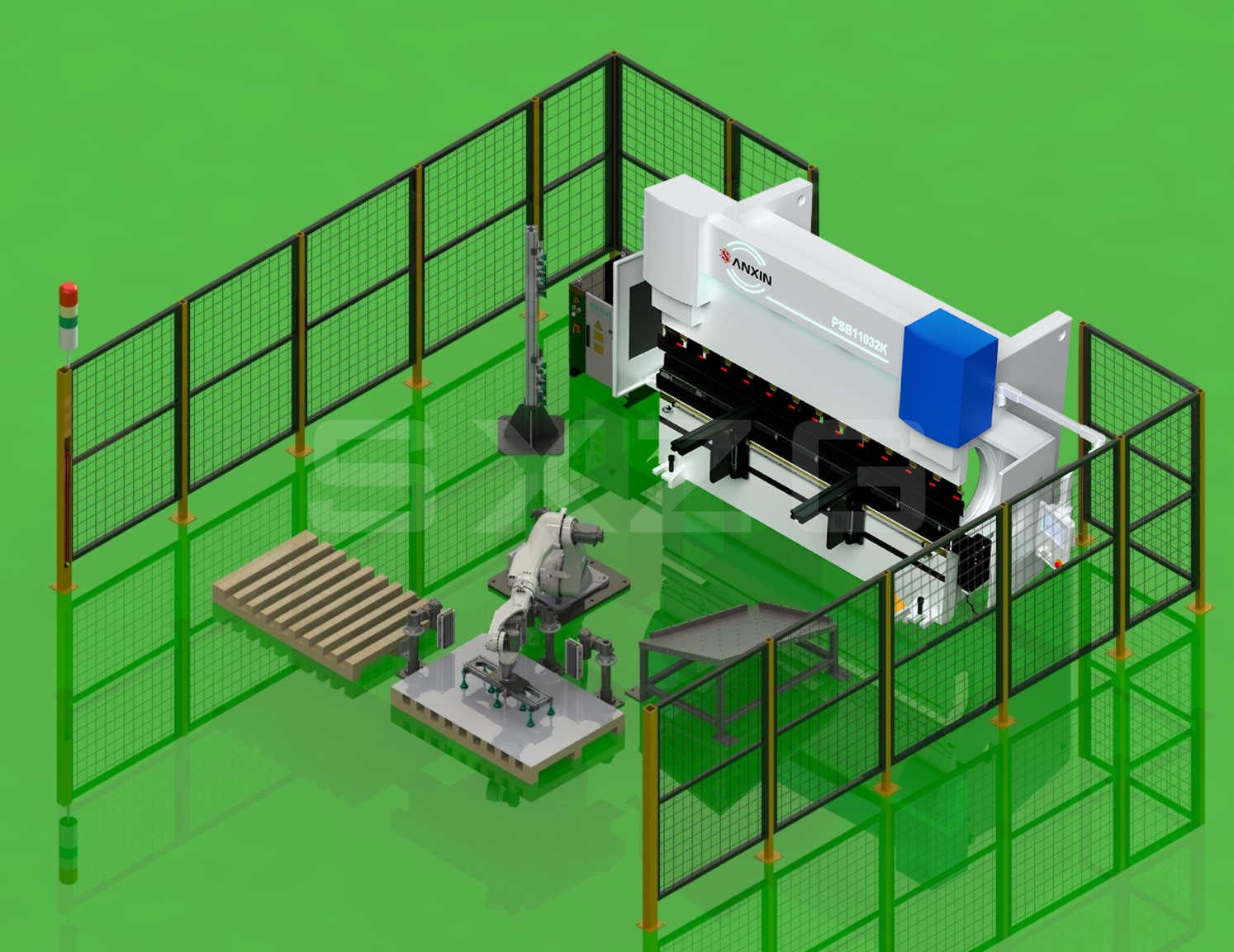

Robotic Arm Systems

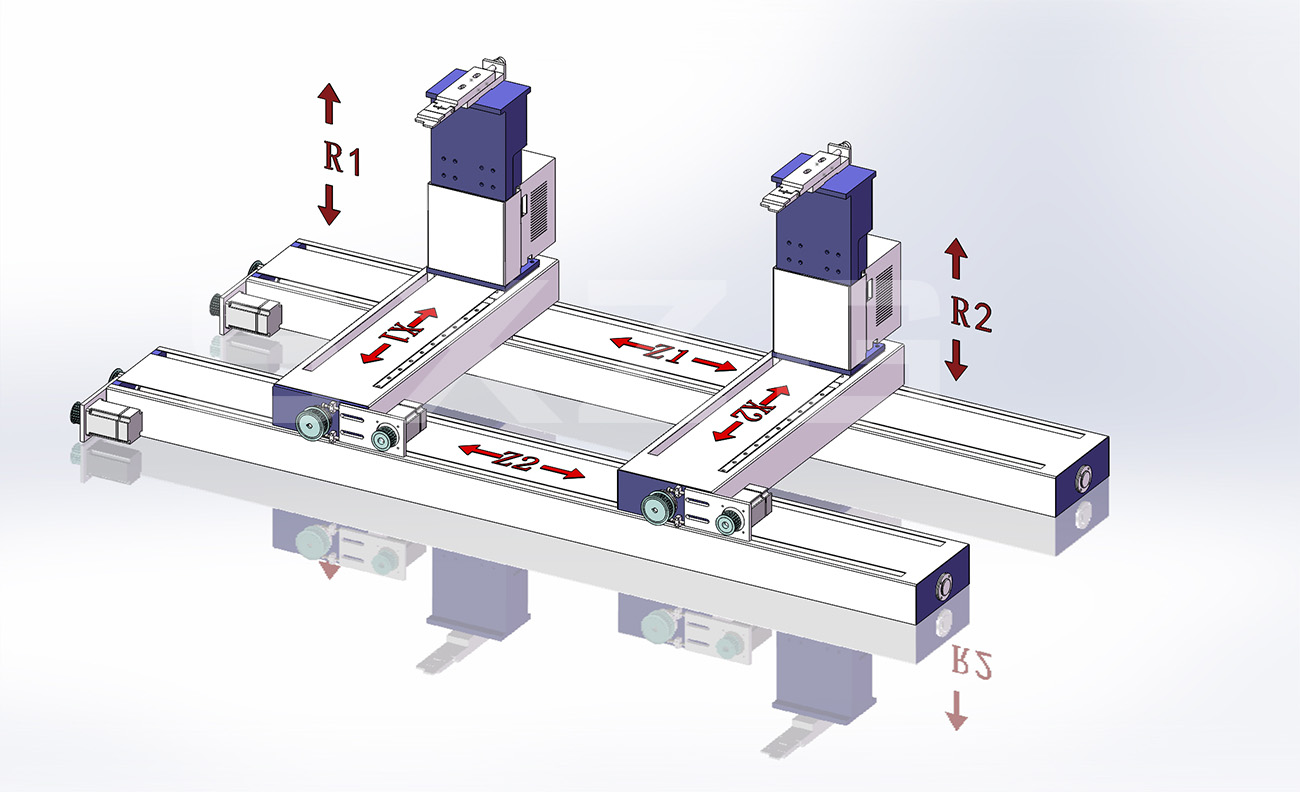

Multiple Back-gauge Design
