Product Description

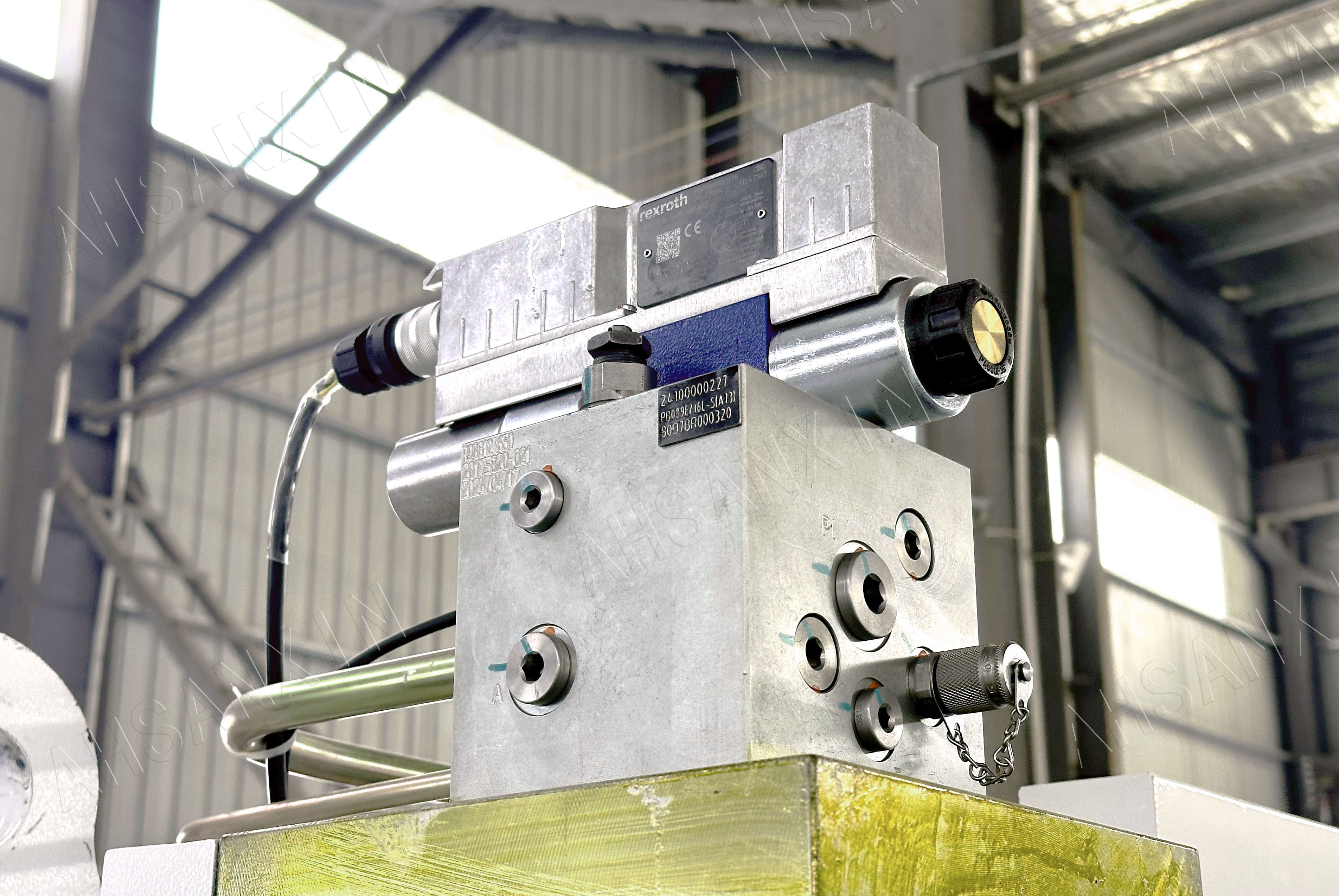

1）Sanxin PSB Servo CNC Press Brake adopts the Bosch-Rexroth proportional synchronous control system, with two gratings ruler installed on the C-shaped frame. The grating ruler, CNC system and proportional valve form a closed-loop servo control system to accurately control the speed and position of the slider.

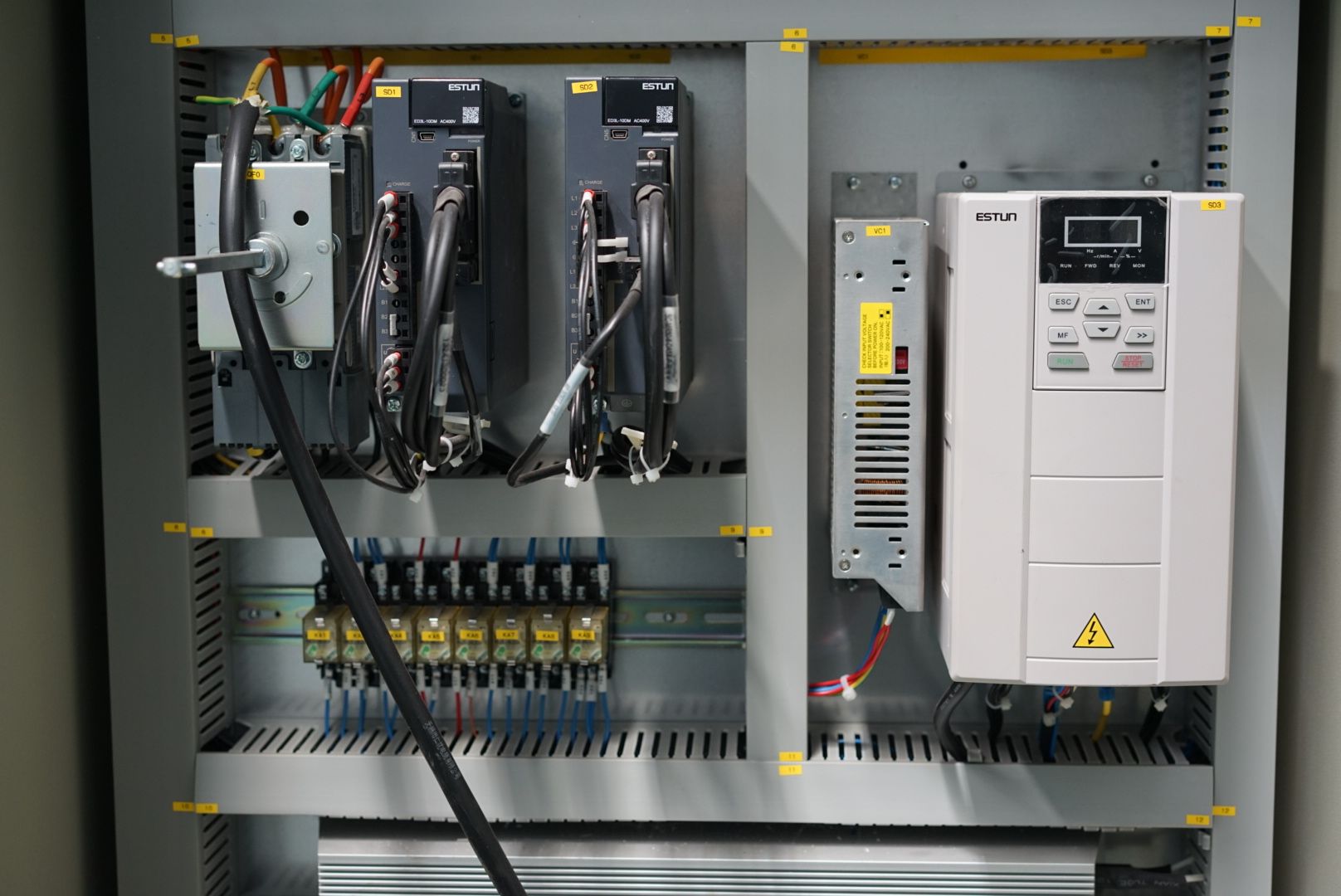

2）PSB® CNC Press Brake adopts Innovance/Estun Servo main motor instead of Siemens main motor. The oil supply in demand, reduce overflow and energy saving 30~40%, prolong the life of hydraulic parts, reduce oil leakage and hydraulic problem, easy to use and maintanance. At the same time, servo main motor running with low noise, improving the working environment.
|

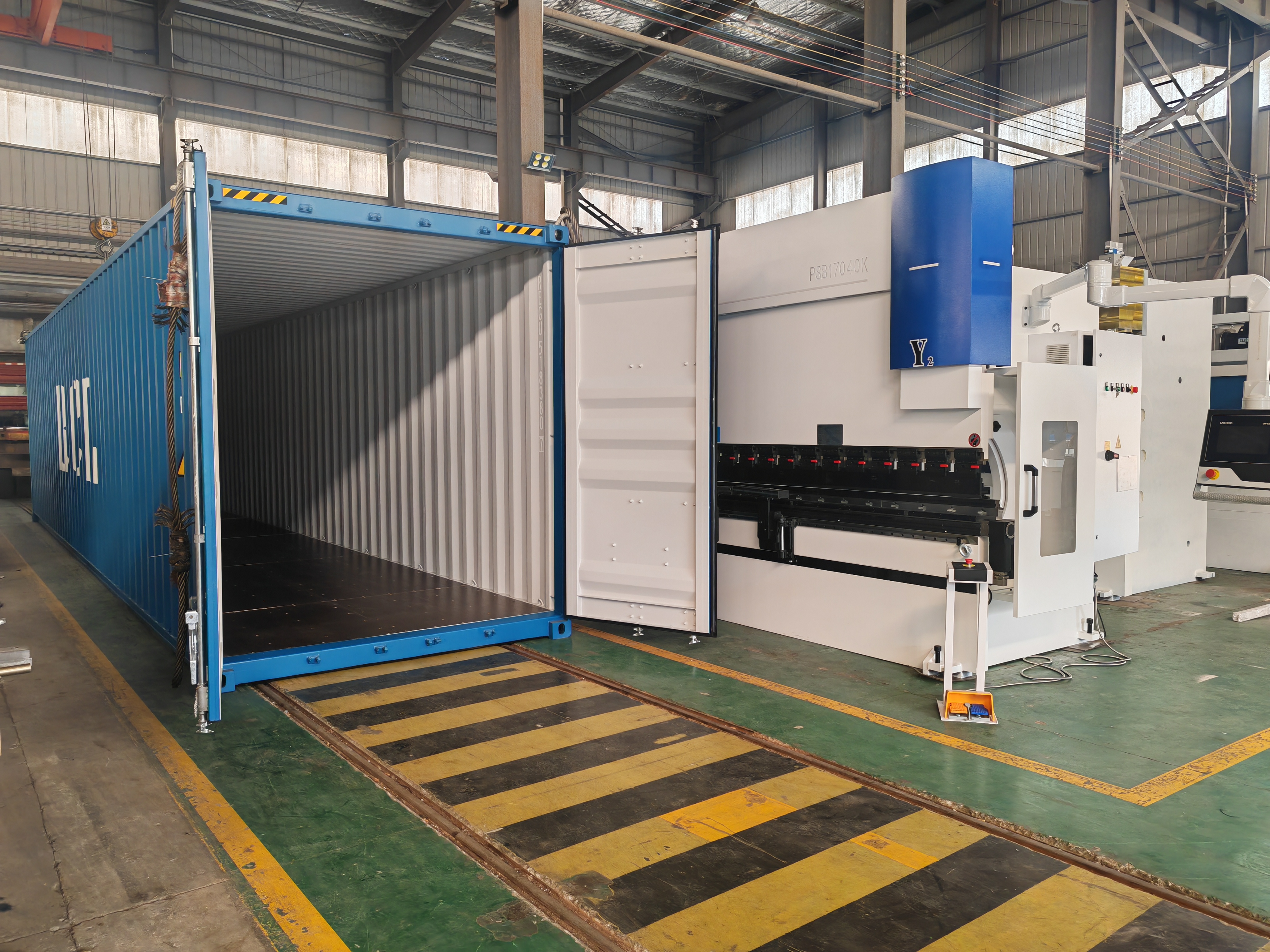

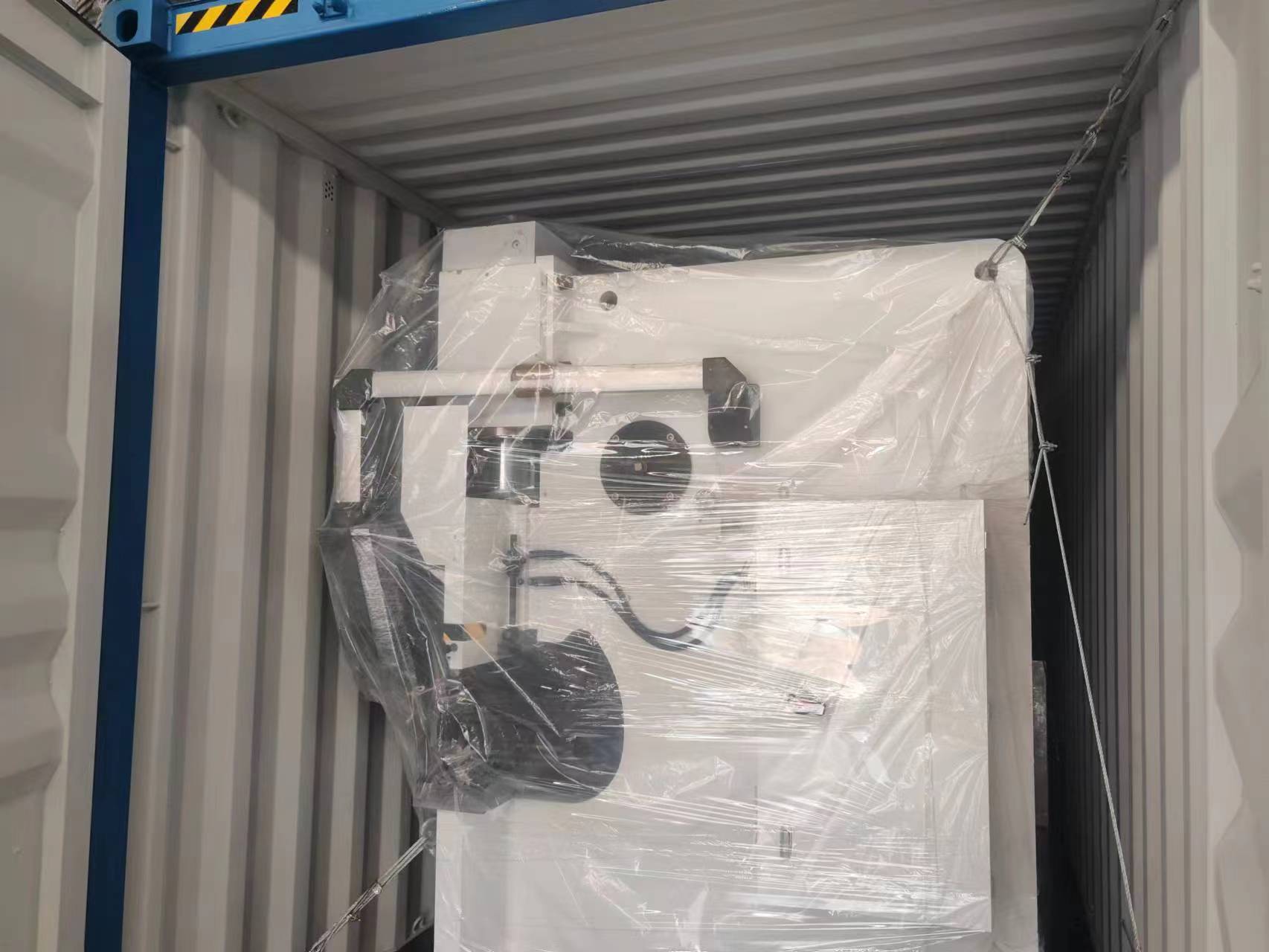

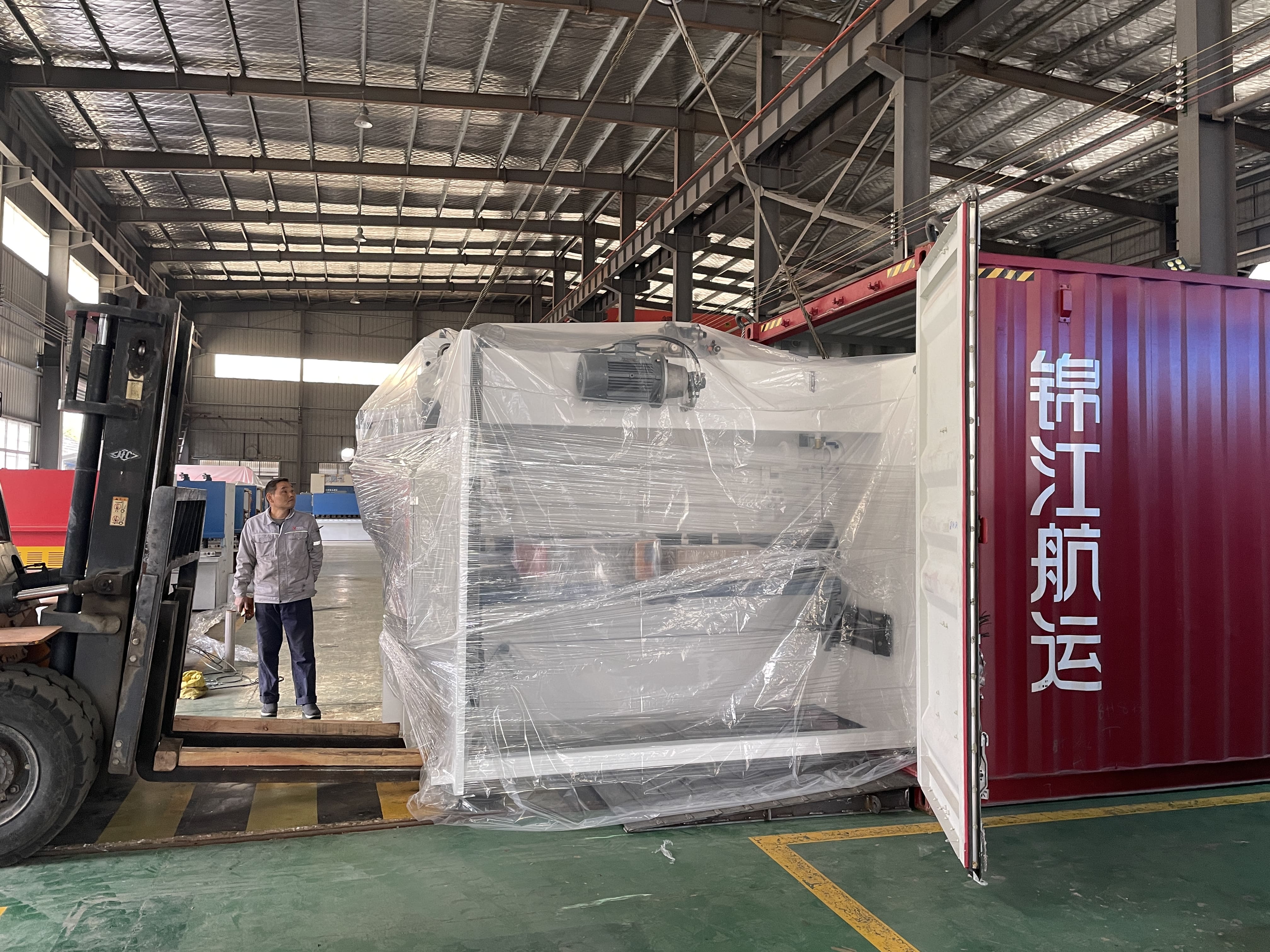

Product Packaging
|
Application Video

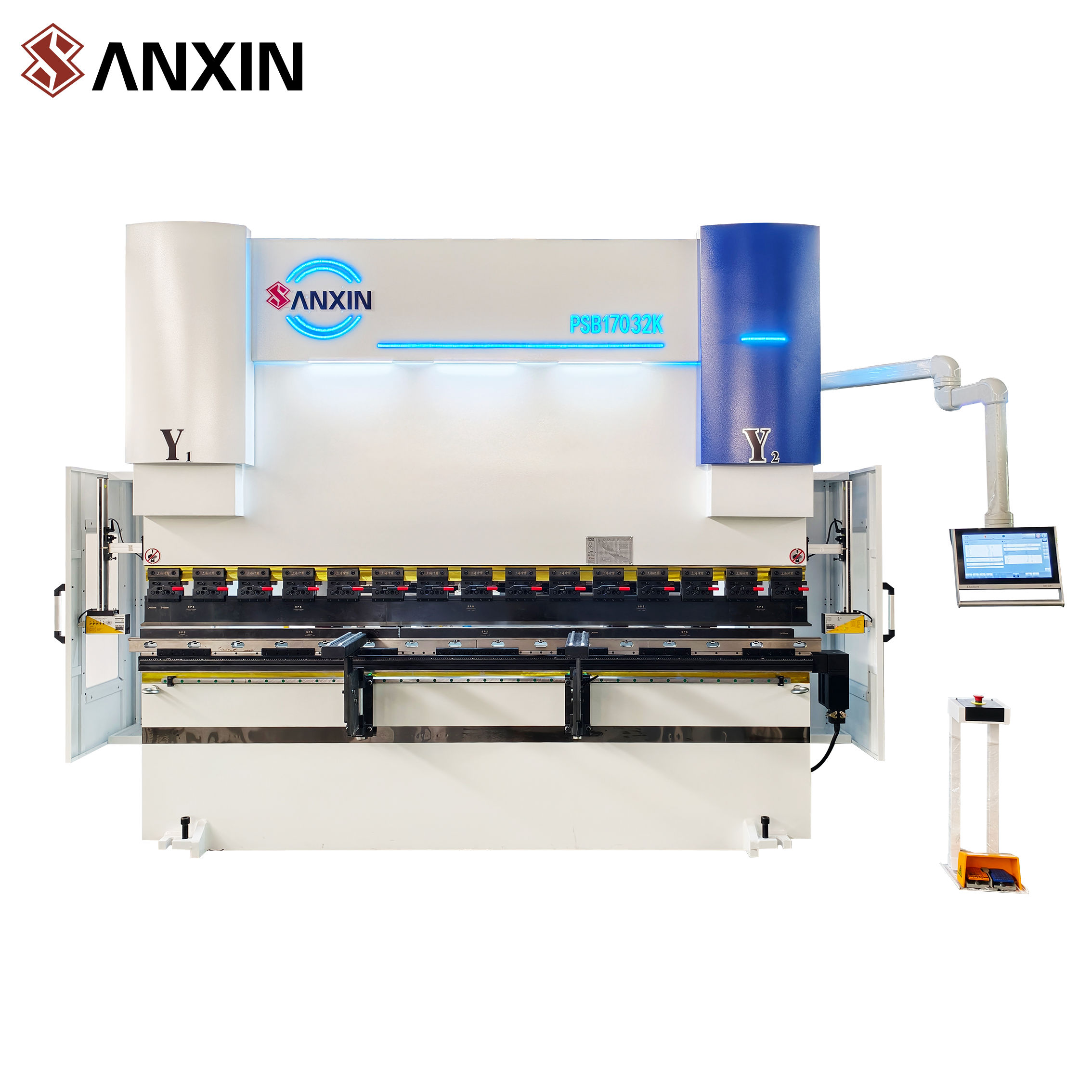

Sanxin PSB 11032K Main Servo CNC Electro-Hydraulic Press Brake
|
Comment & FAQ
1. Are you trading company or manufacturer?
A: We are manufacturer of press brake, shearing machine, rolling machine and other sheet metal processing machines. Our company has more than 30 years of production experiences.
2. How long is your delivery time?
A: The standard model is 15-30 days, the customized model is 30-60 days.
3. How to choose the model of machines?
A: Tell us the Max working area, the material and its thickness you want to bend/cut, we can help you to choose the best suitable machine.
4. What is your term of payment?
A: T/T, L/C, Western Union, Paypal, Alibaba Secure payment, etc. 30% deposit and 70% payment before delivery.
5. Where is your factory located?
A: Our company is in Maanshan, Anhui Province, which is only half an hour's drive from Nanjing Lukou Airport. If you visit our company, we will arrange a shuttle pick up to meet you at the airport.
|
Company Profile
1）Anhui Sanxin Heavy Industrial Machinery Manufacturing Co., Ltd is located in Bowang Economic Development Zone, Maanshan city, Anhui province, China, and was established in 2007. Our company specializes in metalworking machines, including press brakes, shearing machines, rolling machines, CNC grooving machines and laser cutting machines.
2）We have a strong team of professional mechanical engineers and assembly technicians who work together on design and research. We also provide high-quality sales and after-sales services. We are recognized as a modern, well-known brand both domestically and internationally.
|
Production Process

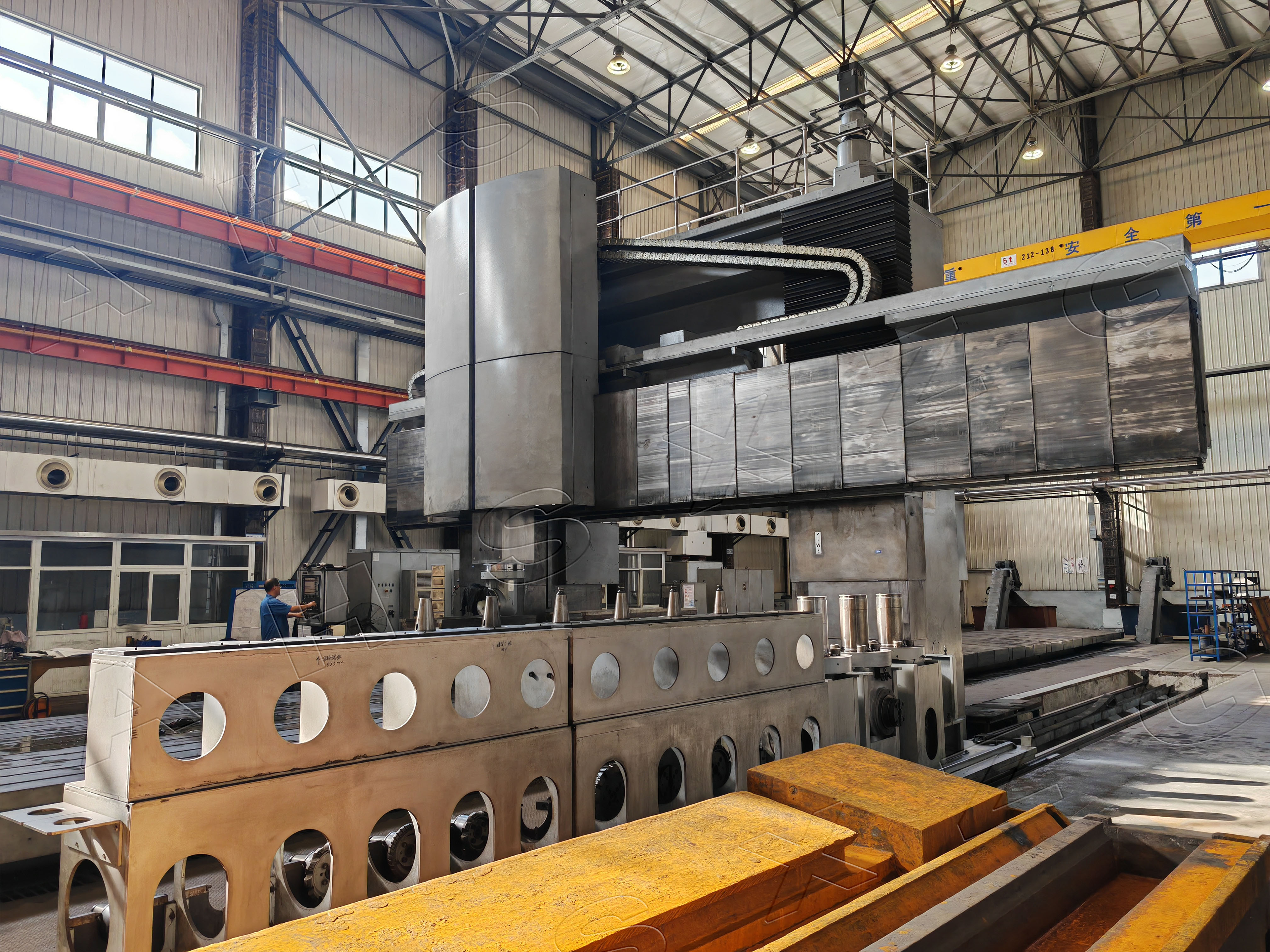

Floor type gantry machining center

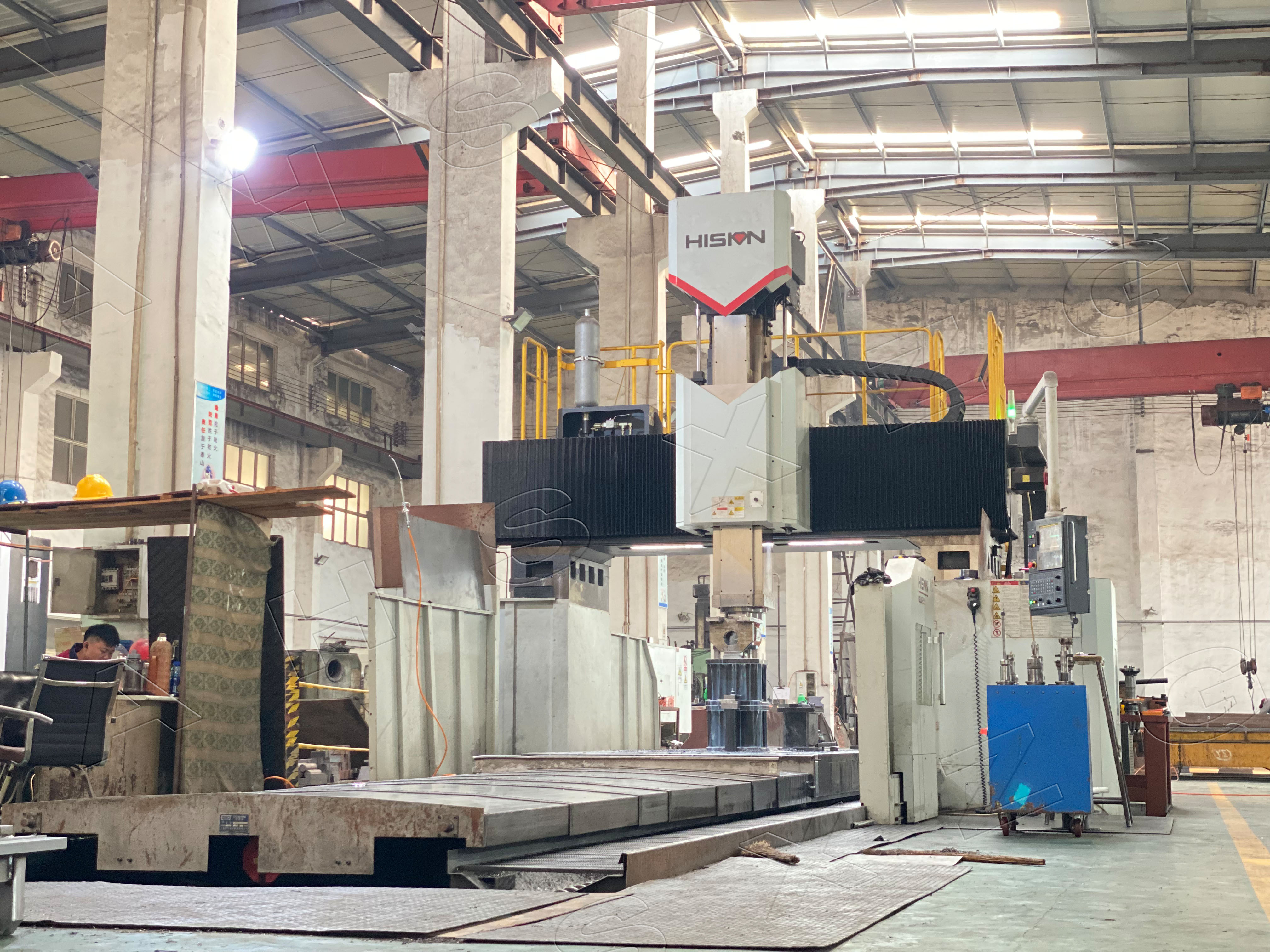

Boring and Milling machining center

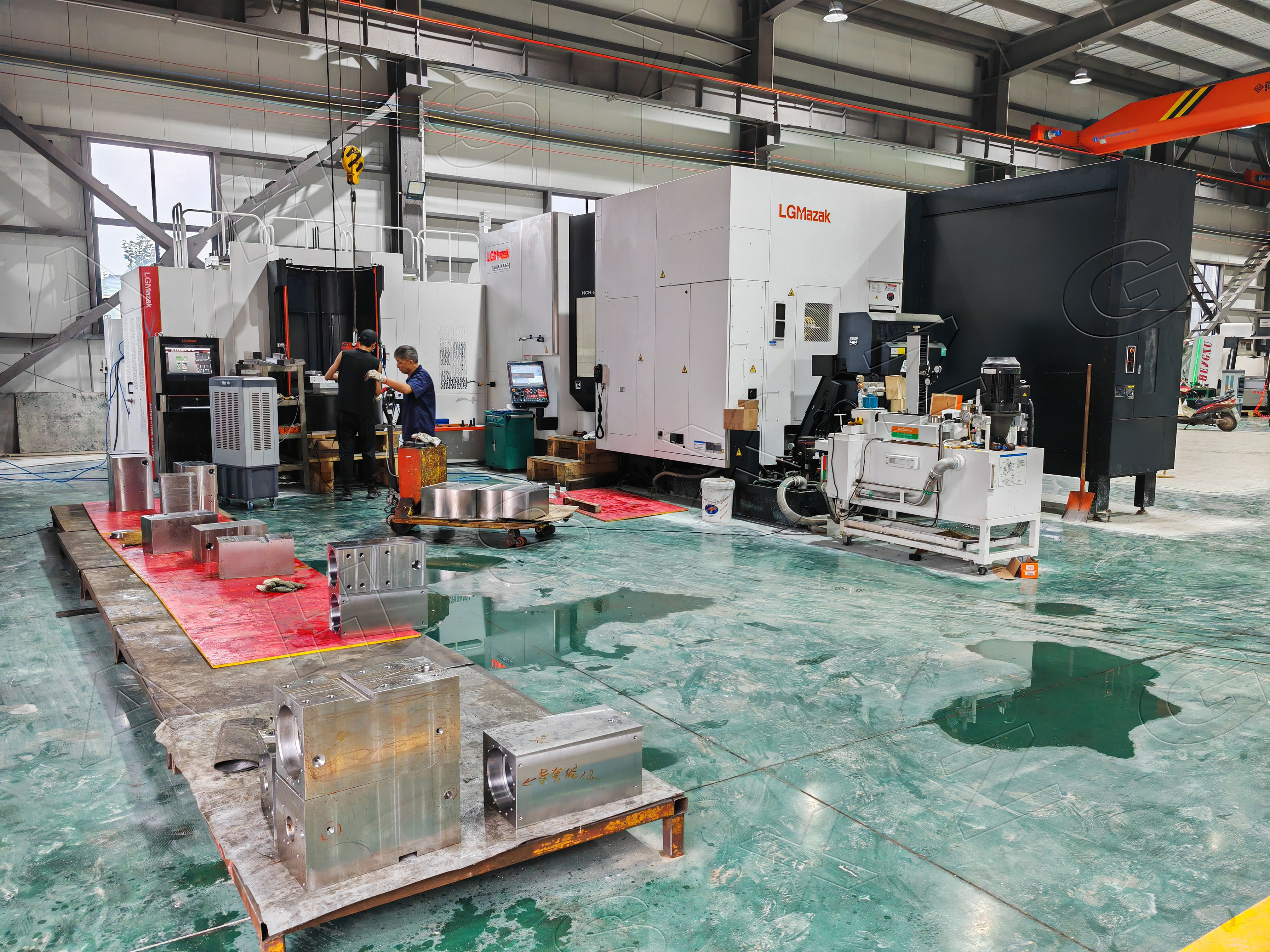

CNC machining centers
|
Certifications
|
Data Sheet
| Model | Bending Pressure | Bending Length | Polo Distance | Throat Depth | Slide Strokes | Max Open Height | Servo Main Motor |
| Kn | Mm | Mm | Mm | Mm | Mm | Kw |
| 63T2500 | 630 | 2500 | 2000 | 350 | 150 | 320 | 6 |
| 80T2500 | 800 | 2500 | 2000 | 350 | 150 | 460 | 7.5 |
| 110T3200 | 1100 | 3200 | 2700 | 400 | 200 | 480 | 7.5 |
| 170T4000 | 1700 | 4000 | 3500 | 450 | 200 | 480 | 15 |
| 220T3200 | 2200 | 3200 | 2700 | 450 | 200 | 480 | 15 |
| 320T4000 | 3200 | 4000 | 3500 | 500 | 250 | 570 | 22 |
|
Optional Surface

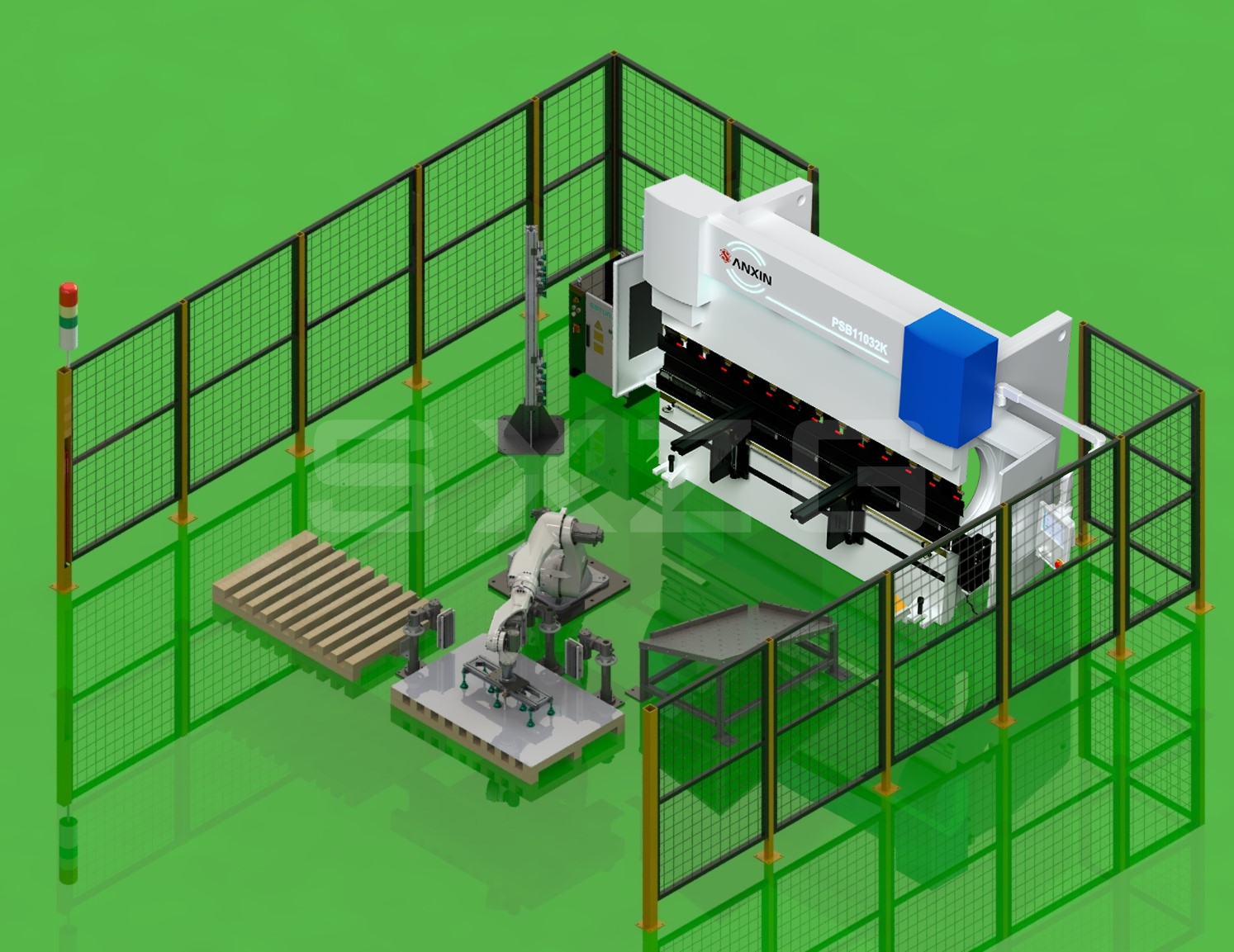

Robotic arm system

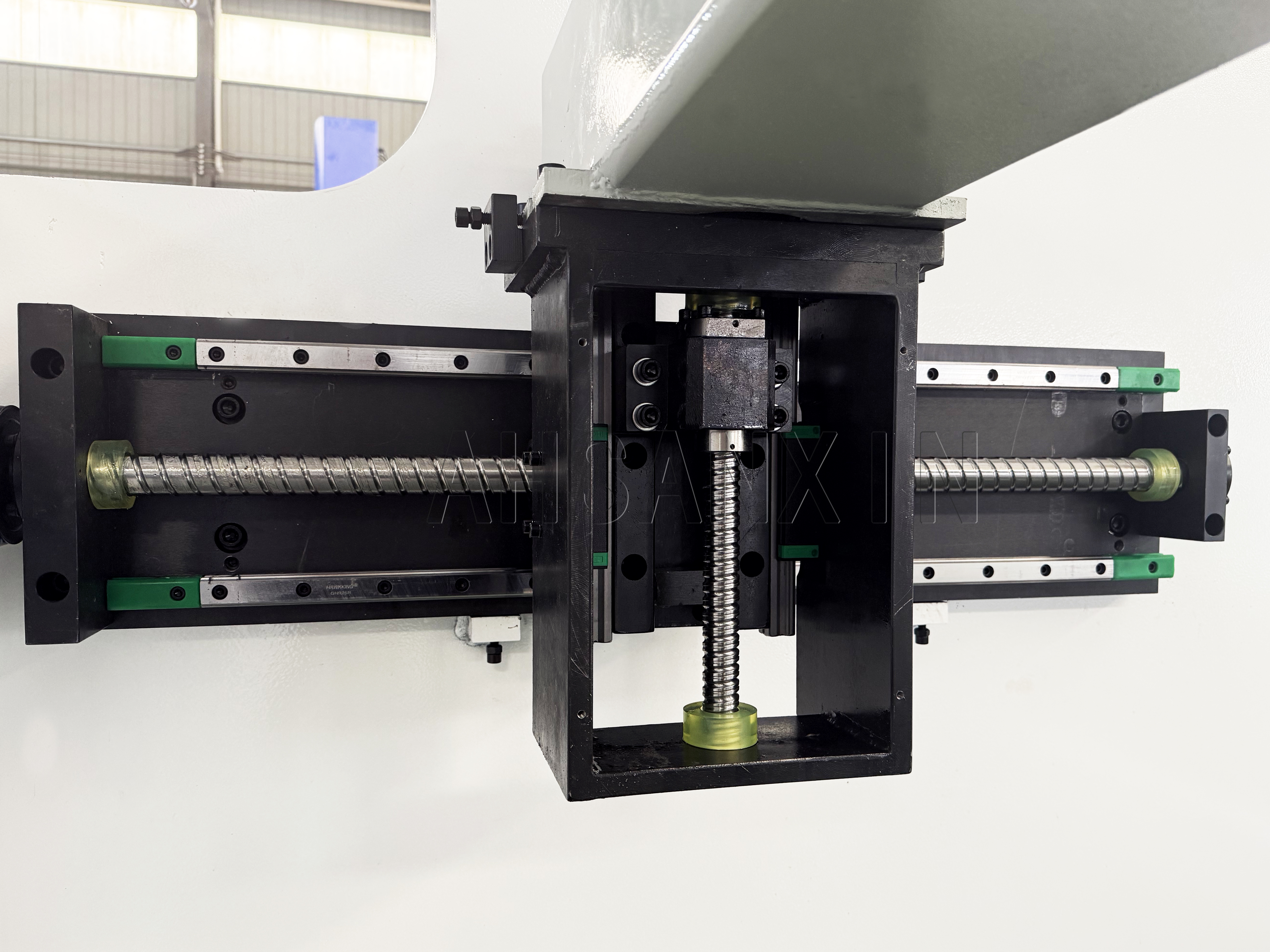

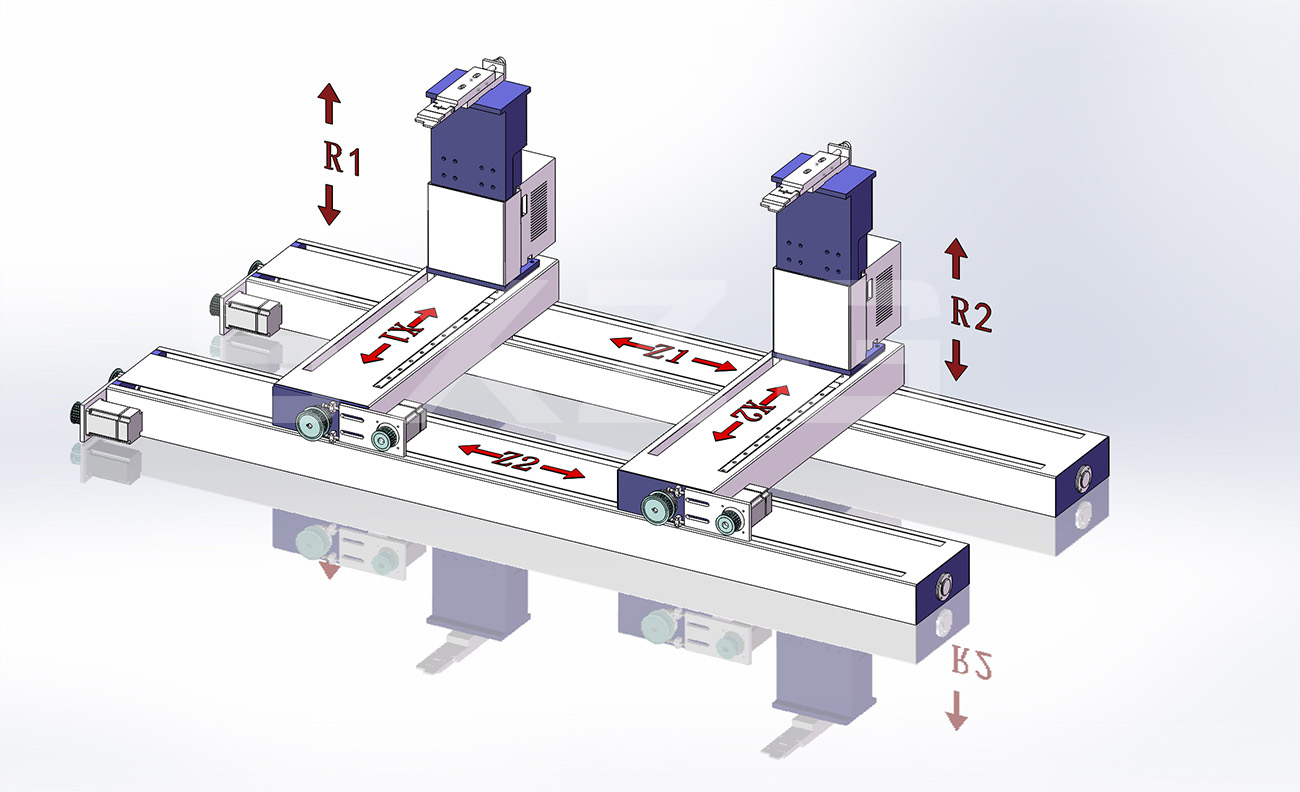

Multiple Axis back-gauge design

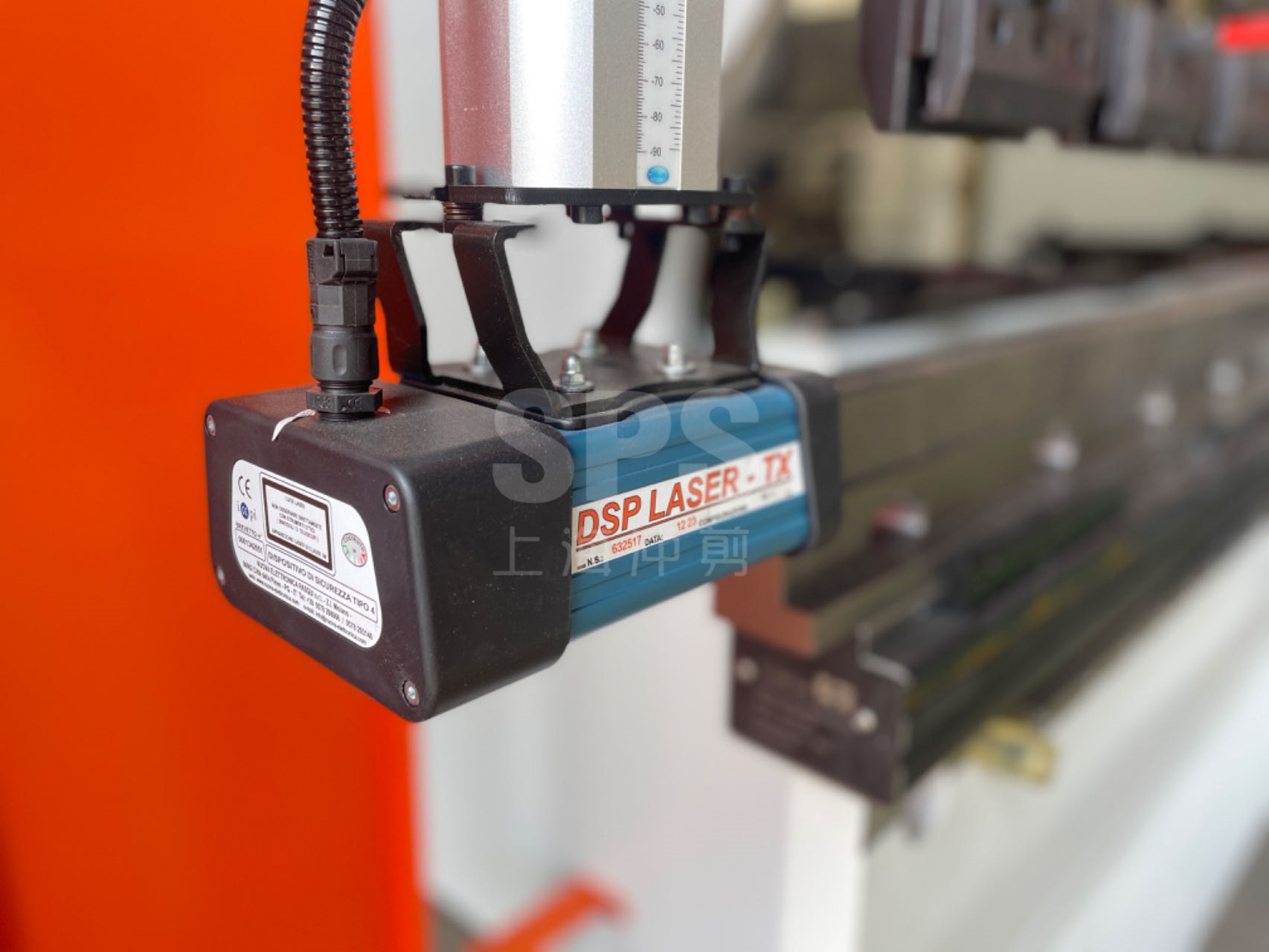

Laser Protection
