Introduction to the Delem DA53T CNC System for Press Brakes

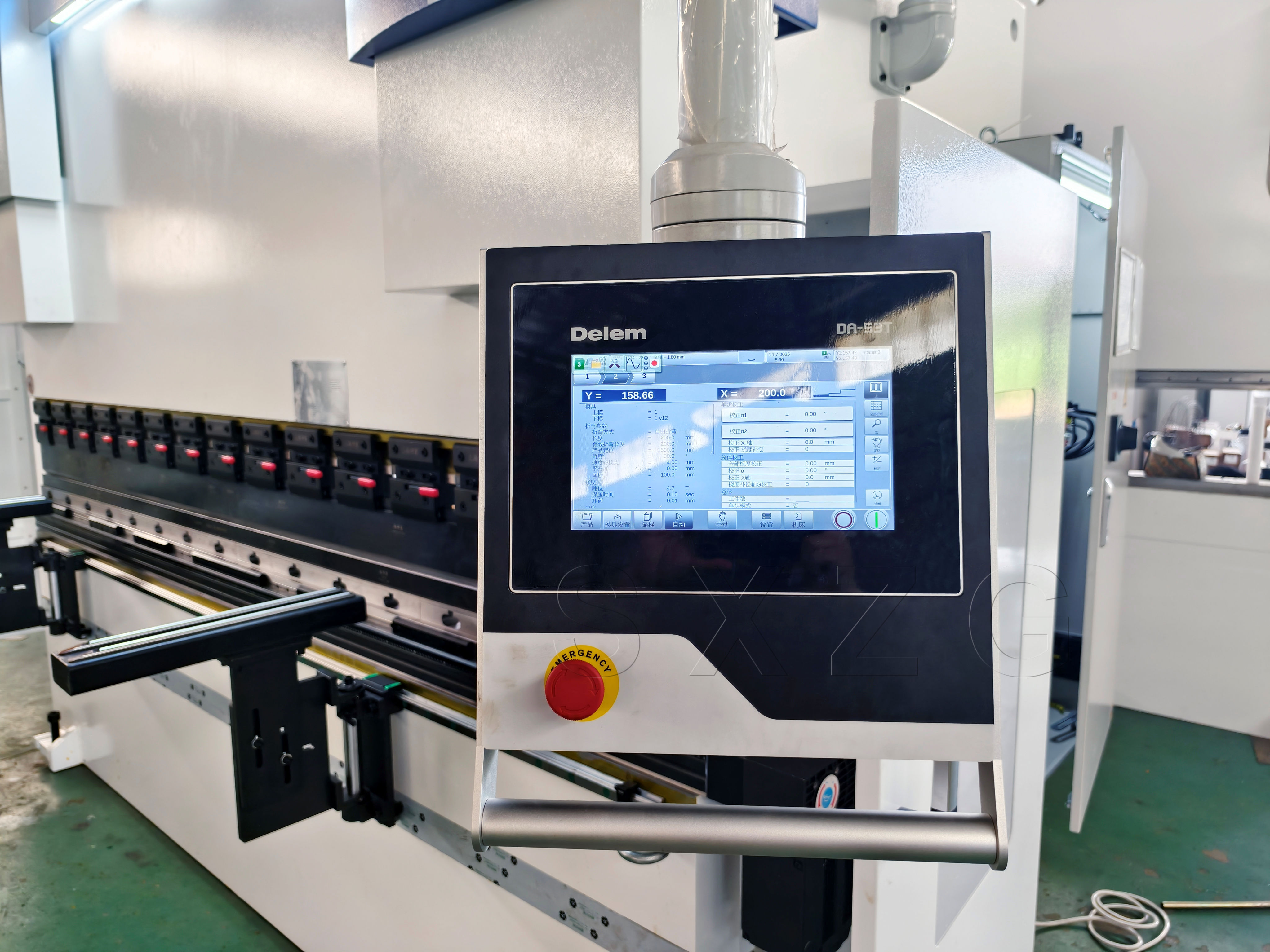

The Delem DA53T is an advanced computer numerical control (CNC) system manufactured in the Netherlands, designed specifically for high-precision control of electro-hydraulic press brakes. It represents a significant advancement in metal forming technology, enabling manufacturers to achieve complex bends with remarkable accuracy, efficiency, and ease of operation.

This system is commonly found on Sanxin PSB PSA PSM PSD series high-quality CNC press brake.

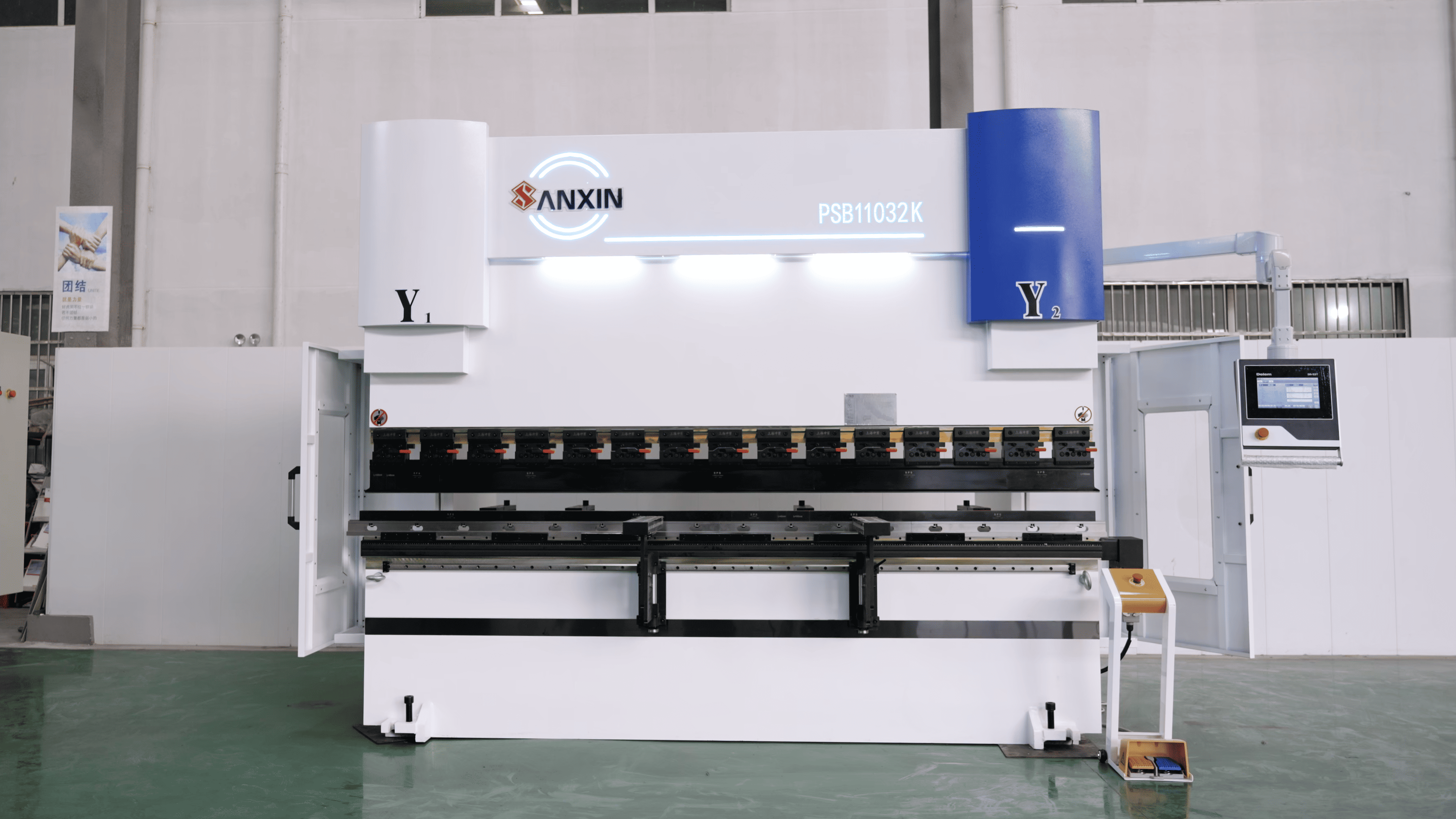

SANXIN PSB11032K equips Delem DA53T system with 4+1 axis design

Core Features of the Delem DA53T System:

1. User-Friendly Touchscreen Interface: The system boasts a 10.1-inch wide-screen TFT display with LED back-lighting, a resolution of 1024 x 600 pixels, and an industrial-grade touchscreen. This large, clear interface allows operators to visualize and program bending sequences intuitively.

2. Graphical Programming and Simulation: A standout feature is its graphical programming capability. Operators can create bend programs using visual aids, and the system provides real-time simulation, allowing for verification of the bending sequence before any physical operation begins, reducing errors and material waste.

3. Multi-Axis Control: The DA53T typically offers standard 4-axis control (Y1, Y2, X, R) and often supports an additional V-axis (crowning compensation axis), making it a 4+1 axis system. The Y1 and Y2 axes control the left and right sides of the ram for precise synchronization, the X-axis controls the back gauge position, and the R-axis controls the back gauge finger height.

4. Integrated Libraries and Data Management: The system includes extensive built-in libraries for tools (punches and dies), materials, and products. This allows for quick selection of parameters and easy storage of frequently used bending programs. It features 1 GB of storage capacity and supports data backup and restoration via USB devices, facilitating easy transfer of programs between machines.

5. Advanced Accuracy Compensation: To ensure bending accuracy across the entire length of the work-piece, the DA53T integrates automatic deflection (crowning) compensation control. By inputting material parameters, the system automatically adjusts the compensation mechanism (often a mechanical-electric V-axis) to counteract the natural deflection of the press brake's frame and bed under load.

Summary of Technical Specifications for DA53T:

Display ：10.1" wide-screen TFT, LED backlight, 1024x600 pixels, industrial touchscreen

Control Axes：Standard 4-axis (Y1, Y2, X, R) + optional V-axis (crowning)

Storage： 1 GB capacity, USB interface for backup/restore

Programming：Graphical, angle programming, real-time simulation

Libraries： Tool, material, and product libraries

Synchronization： Controls full-closed loop electro-hydraulic servo system

Positioning Feedback：High-precision grating scales for Y1/Y2 axes (0.01mm)
